LONG-JOIN Brand NEMA Standard Connector Manufacturer Since 1996

LONG-JOIN Brand specializing in the twist lock photocell connector, and also is named NEMA Series Standard Receptacle. our receptacle is compliant with ANSI C136.41 and UL, C-ul, CB, CE, etc. and NEMA Series Receptacle provide interface modul that electrical and mechanical interconnection between an ANSI C136.41-2013 photo control cell and luminaire.

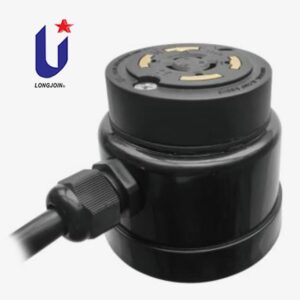

7 PIN Photocell receptacle is a compliant dimming receptacle that provides fully pluggable, 4-dimming contacts to support 0-10v dimming methods and a Digital Addressable Lighting interface(DALI) while proving a reliable power interconnect with three robust twist lock contacts. another 3 wires is power contatcts.
• Power contacts terminated to 14AWG stranded wire
• Signal contacts terminated to 18AWG stranded wire, and available connect DALI driver dimming output wire 3/4 .

and NEMA receptacles were designed for the light fixture with a Standard interface, as well as an extended module of light luminaries device. for instance, an ANSI C136.10 3 PIN plug twist-lock photocontrol to clockwise into a female connector and keep lamp lanterns has a good raintight and ant-impact effect.

3 PIN photocell receptacle is a common universal connection and as be used to be a standard ANSI C136.10-1996 female connector. our 3-pin receptacle is not only used for ANSI C136.10 photo control, but also you can choose the back cover JL-200Z. Furthermore, you can choose different sizes of mount aluminum brackets, in order to improve dusk-to-dawn photocell sensor control lighting solutions under limitable conditions.

New Functionality NEMA Receptacle Product
1- Available limited rotatable and ABS back cover with waterproof lock nut cable wires. eg JL-260C, JL-200ZCWP, JL-240TZCWP;
2- Especially JL-240FXA receptacle offers silicone O-rings on the TOP surface screw-hole enhanced limitless approach waterproof feature;
3- 360°limited orientation range to prevent wire jams. eg JL-260D1,JL-260D2.

For You to Provide Good Solutions
In addition, if you want special and individual receptacles, we can help you refine them again, and redesign the same receptacle body, yet have a different body with connected wires. eg receptacle body with cable wire; and choose shrinkable tube wrap wires to improve waterproof strength and insulation; retrofit receptacle body with wires terminal block connector or fully had changed for use cable wires with terminal block. Apart from the above fresh idea, available flexibly design receptacles with wall mount bracket kits for European user needs.

>>NEMA 7 PIN Receptacle

>> JL-240 Receptacle

>> NEMA 5 PIN Receptacle

>>3 PIN Receptacle

>>Zhaga Socket

LONG-JOIN Provide Resources

>> Certifications

>> LONG-JOIN Product Catalogs

>>LONG-JOIN Video Gallery

More about LONG-JOIN

No matter where brand light fixture vendors, electronic technical companies, and also end-facing customers’ sellers, a part of people chose our LONG-JOIN brand product since we are a 20+years dedicated to the light controller industry, as well as unique sealing glue filling craft enhances photocontrol base with the cover of waterproof performance ensure photocontor reach the international standard, eg IP54, IP65, IP66, and IP67. on the other hand, long-join is more strong technologies team, available to support reliable large production capabilities. our factory area is more than 38,000 square meters, with 5 big line work areas including assembling area 1 and assembling area 2, the riveting area & soldering area, debug area and the finished test area. all the workshop work area crew quantities are 100~300, with annual sales of about 100 million pieces.

Second, we are capable of producing different functionality and dimming mode photocell light sensor. generally, dimming controller product between JL-24X series and JL-25X series product. JL-24X series product of 0-10v dimming, JL-25X series product of DALI dimming. while zhaga series product is one of dimming control, so you can choose mini and low-cost zhaga sensor JL-7X1 series. if you would want low voltage 12V 24V 48V and high voltage 480V light control, then here provide your need.

Third, our team members are made up of good sales teams and skilled technical consultants from Shanghai LONG-JOIN. What can we help you provide service? we can provide the best way that how to choose a lighting controller type is suit for your LED Street Light and how to mount it on the light fixture, if you want to more detailed information about LONG-JOIN brand service flow, such as Our Overall Service Flow, Sample Service of General, Service-customize service and Service-Wireless Controller. especially our customize sample service to tell you about what is best, also you can know our service’s special content, perhaps you can get a brilliant new idea.

Not only our photocontrol had developed 30+ categories, some of one is electronic type controllers, also is heat drive type controllers (thermal switch controllers), and semi-electronic controllers, if all these controllers are by sensor type to classification, including a microprocessor unit, CDS, IR-filtered phototransistor, photodiode type, etc. But these NEMA Series control accessories and Zhaga Series Control Accessories are play poles among oversea sale contributions.
