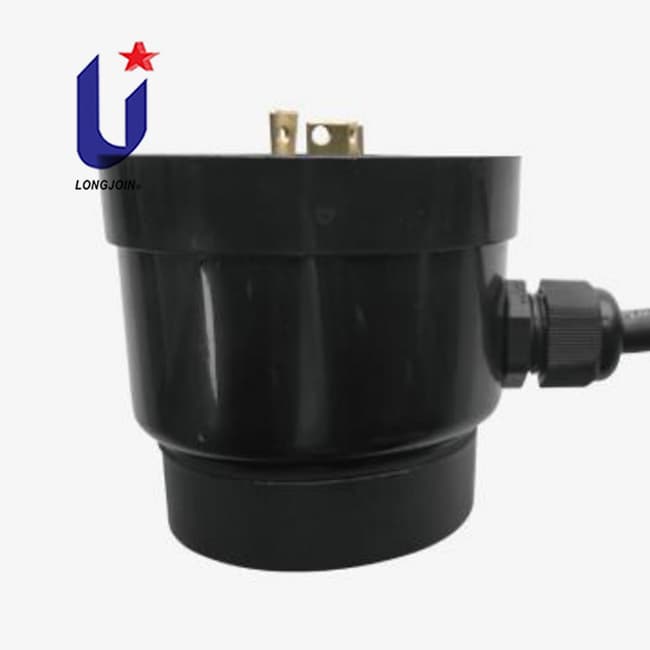

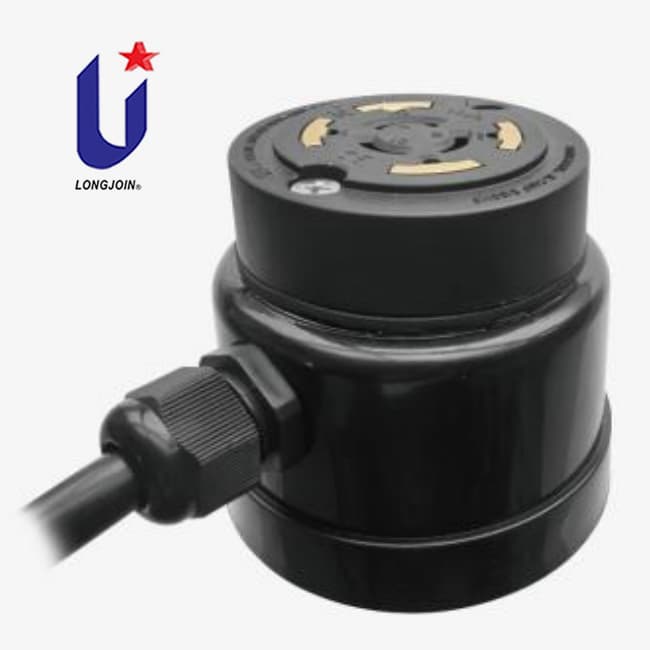

The JL-250P power tap is an innovative street light power expansion adapter that provides auxiliary equipment on the light pole to easily access the power supply. It connects directly to the power supply line of the street lamp by connecting it between the light controller and the twist lock photocontrol receptacle, and without interfering with the normal operation of the light controller.

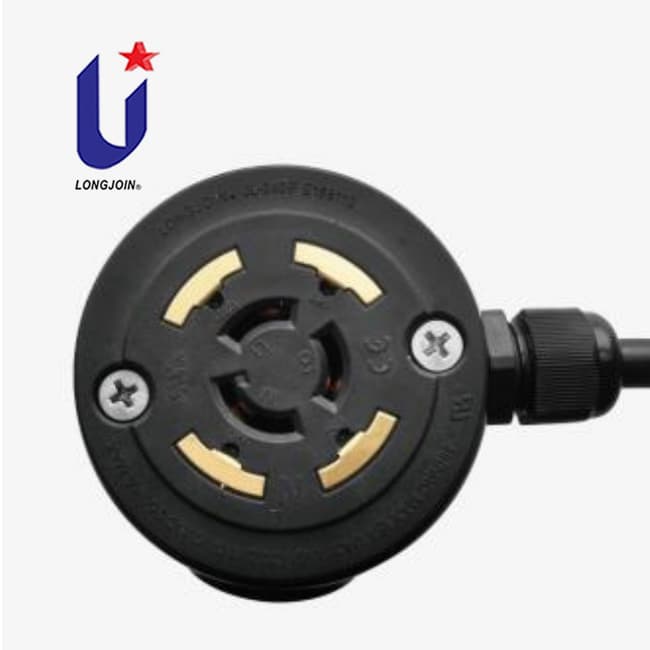

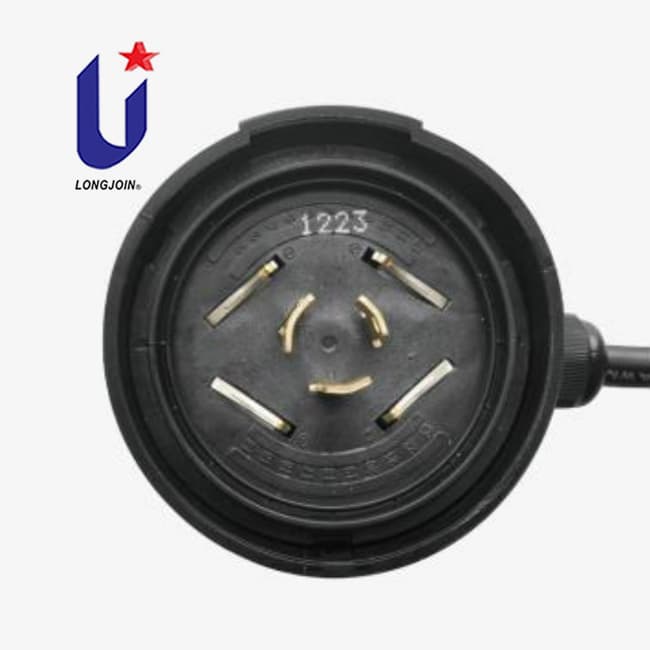

JL250P Support 7-pin ANSI C136.41 standard interface, including 3-pin power jack and 4-pin signal line, suitable for installing any standard NEMA socket.

Our products can not only provide continuous power supply for equipment such as smart cameras, sensors, and communication modules. they support power supply solutions based on street light switches, offering flexible options to meet different electricity devices needs. Some models are also equipped with signal transmission interfaces to facilitate the integration of smart city IOT systems and data feedback， while the JL-250P improves the layout efficiency of outdoor smart devices and empowers smart lighting upgrades.

Notes
P4/P5 type signal line: cable wire 18AWG, wire length is optional, standard size 20 inch.
P2/P3 type signal lien: nothing

*250P cable wire length is optional;
*250p connector terminal with wire type is optional

* Here support different type light controller product
* NEMA type pin controller, JL205,JL207,JL217C,JL245C,JL-214B,JL-224B
* zhaga series controller: JL701A (general dimming 0/10v), JL711N（NB-Iot）,JL-721NP（NB-Iot, global position location）JL-712G3L(microwave motion +SIM card)
