-Dimming interface: 2&3
-Short thread length:14.1-13.1 mm
-Socket with rear terminal silicone protection
-Power consumption:1.5A Max

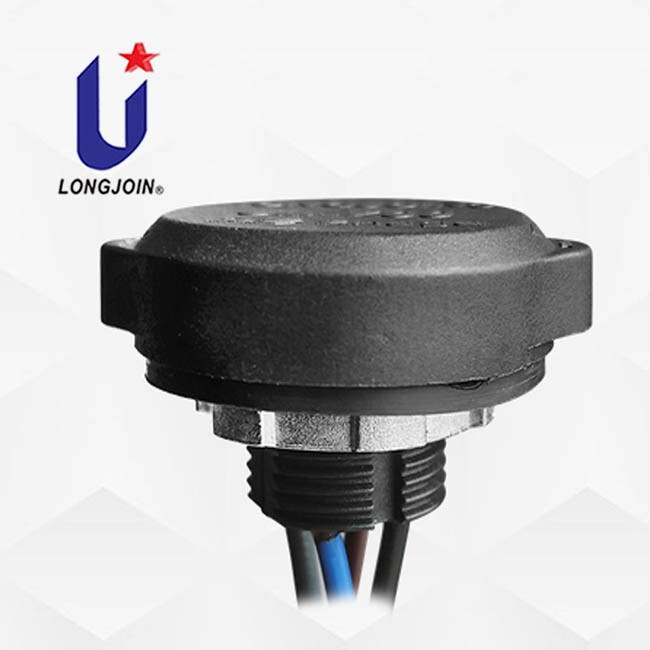

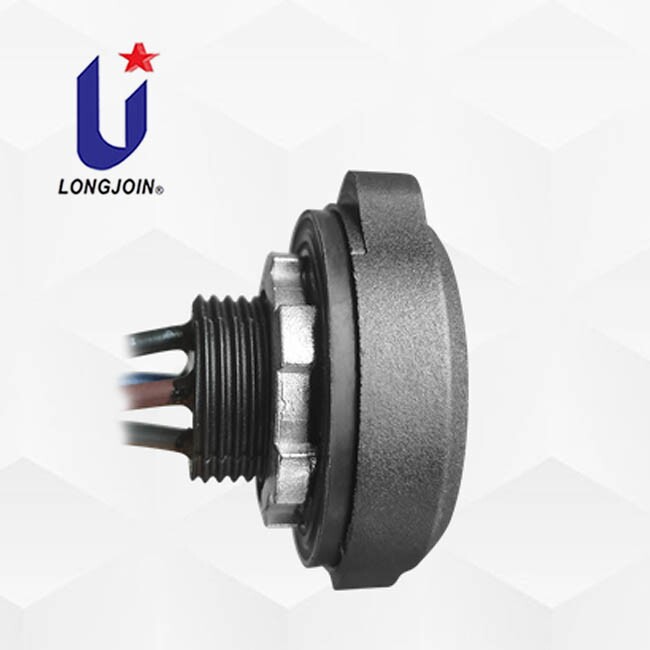

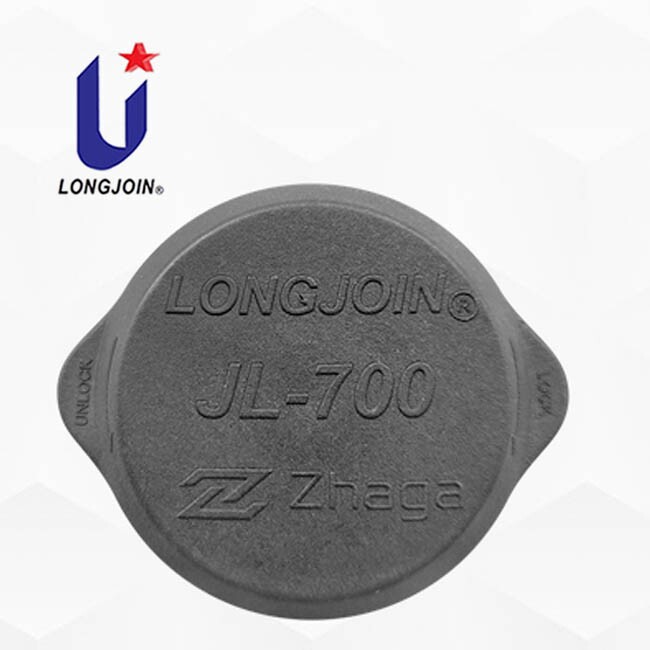

Zhega series parts is compliant to zhaga book18 standard, then this include JL-700 zhaga socket,zhaga cover and baseplate. for our municipal street light lamp inner space is to be more increased capacity, long-join had developed new tpye base: JL-700S. this jl-700s with more shorter thread reference to JL-700 (universal version thread length:21.6mm from socket surface to thread terminal measures. )
Feature
*Compact size allowing greater fexibility in luminaire design.
*Advanced sealing to achieve IP66 with no mounting screws.
*Scalable solution allows use of Ø40mm photocell and a Ø80mm central management system with the same connection interface.
*Flexible mounting position, upwards, downwards and side of street light.
|
Product Model |
JL-700S |
|
Mounting |
M20X1.5 |
|
Wires |
AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C |
|
IP Grade |
IP66 |
|
Receptacle Diameter |
Ø30+/-0.2mm |
|
Gasket Diameter |
Ø37.8+/0.2mm |
|
Thread length |
13.1-14.1 mm |
|
Contacts rating |
1.5A, 30VDC (24V typical) |
|
Surge test |
Meets 10kV common mode surge test |
|
Capable |
Hot pluggable capable |
|
Ik09 test |
Pass |
|

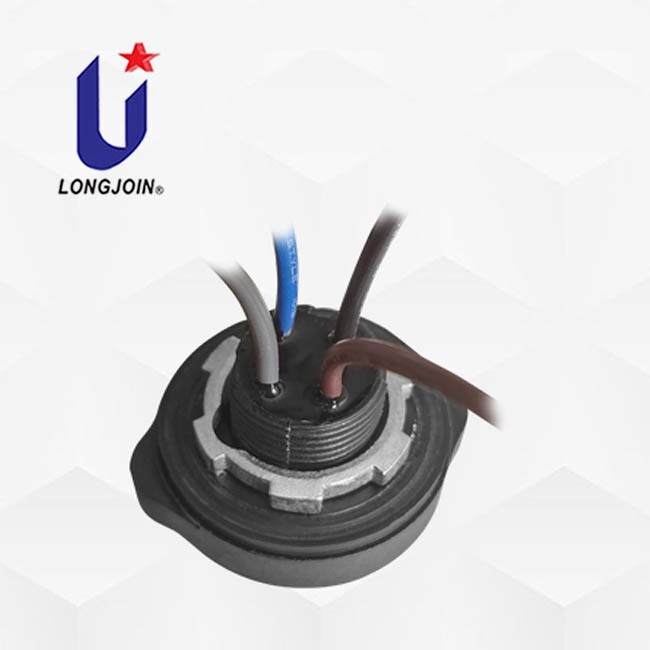

Contacts |
4 pole contacts |
|
Port 1 (Brown) |
24Vdc |
|
Port 2 (Gray) |
DALI (or DALI based protocol) –/common ground |
|
Port 3 (Blue) |
DALI (or DALI based protocol) + |
|
Port 4 (Black) |
General I/O |
*here long-join offer zhaga series controller.
* available customizable wire length;
* optional offer zhaga typle conroller base: JL-701j, JL-711J, JL-731J, JL-732J, JL-741j, JL-742j.
