The JL-700W slot wire-free version of the Zhaga socket from LONGJOIN Lighting is an innovative lighting control interface designed for applications such as smart street lighting, area lighting and occupancy lighting. Based on the Zhaga Book 18 standard, this product utilizes a unique slot design that effectively solves the problem of silicone gasket warping that is common during installation of traditional sockets and significantly improves waterproofing and ease of installation.
-Port 1:24VDC
– Port 2:DALI–/GND
– Port 3:DALI+
– Port 4: reservel/O
JL-700W Slot leadless version The Zhaga socket is a high-performance lighting control interface compliant with the Zhaga Book 18 standard.
In terms of electrical parameters, 700w and 700w slot electrical series parameters, we have not adjusted any parameter. Secondly, the leadless version zhaga socket (700w, 700w slot leadless) are matched with wire gauge 20-22AWG, and one end of the wire can be stripped 9-11 mm and plated with a layer of tin. The reason for this is more about how we can safely and smoothly insert the wires into the 4 holes at the bottom of the socket during installation.
Finally, the 700w slot design version of the zhaga socket is designed to take into account the defects of the old version in the installation process, such as our previous version of the silicone gasket and the fixture surface warping problems during the installation process, which led to waterproofing of the fixtures. Once the gasket was found to be warped, it could increase our installation time. Therefore, we have added a new threaded top slot to the standard 700w version. This is a minor structural improvement, which on one hand is used to fix the position of the silicone washer. On the other hand, the threaded head groove ensures that the gasket fits snugly into the luminaire housing and enhances the sealing performance of the luminaire’s external devices.
In addition, the new slot design zhaga soket, just right, leaving us with different points of interest. On the one hand, how do we properly install this silicone gasket to stabilize the luminaire. On the other hand, how to snap-lock the metal nut of the socket in the correct pointing to the top of the LED luminaire. In this way, the new design of the zhaga socket is more watertight than the regular 700 (without the slot) and reduces the problem of the gasket warping during installation.
The wire-free version of the zhaga socket is plug-and-play. If we accidentally plug a wire into the wrong hole, you can quickly pull out the wire and plug it into the correct socket. Why is it important to insert the wire into the correct socket? Because the bottom of the zhaga socket has 4 different access holes, each with a different electrical function (reference to 700w slot specification). In addition,the driver in the luminaire has different access points corresponding to DA LI+, DALI-, and 24VDC. below 700w wiring diagram.

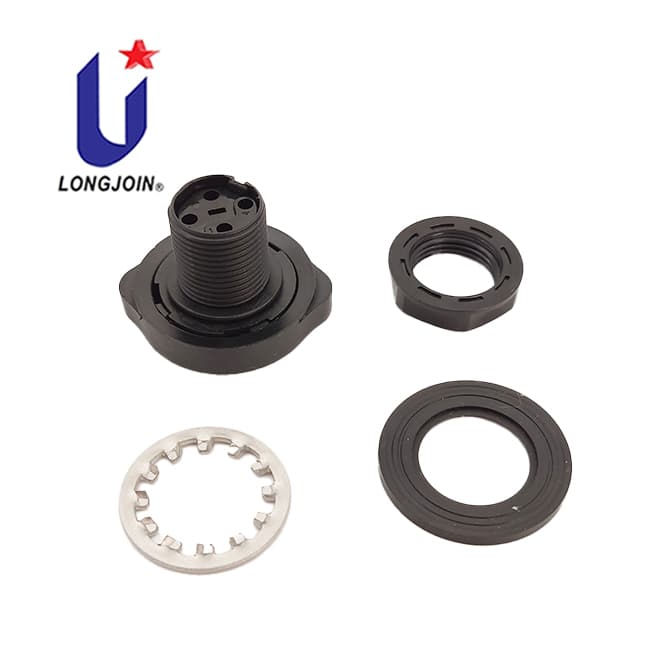

JL-700W leadless version zhaga socket is divided these parts

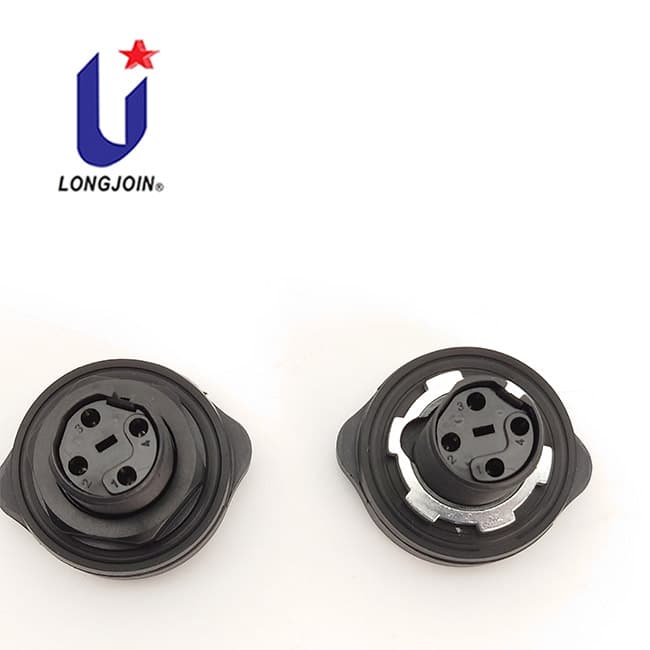

1-zhaga socket terminal body.

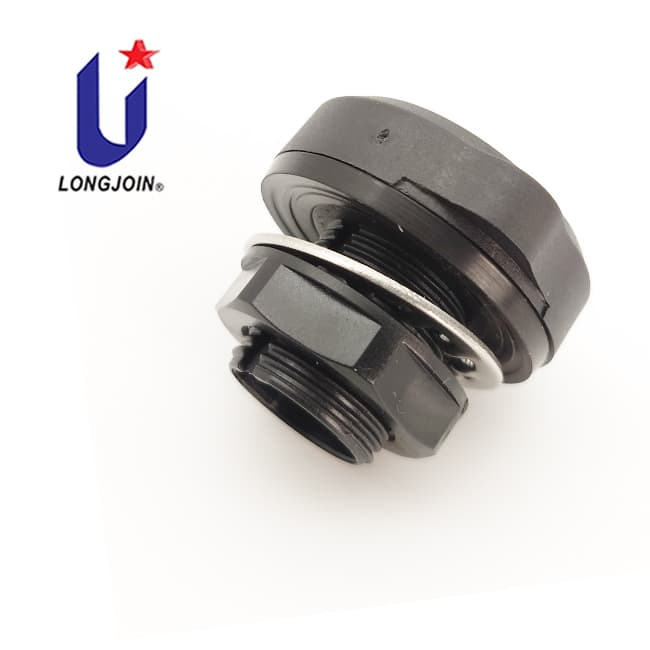

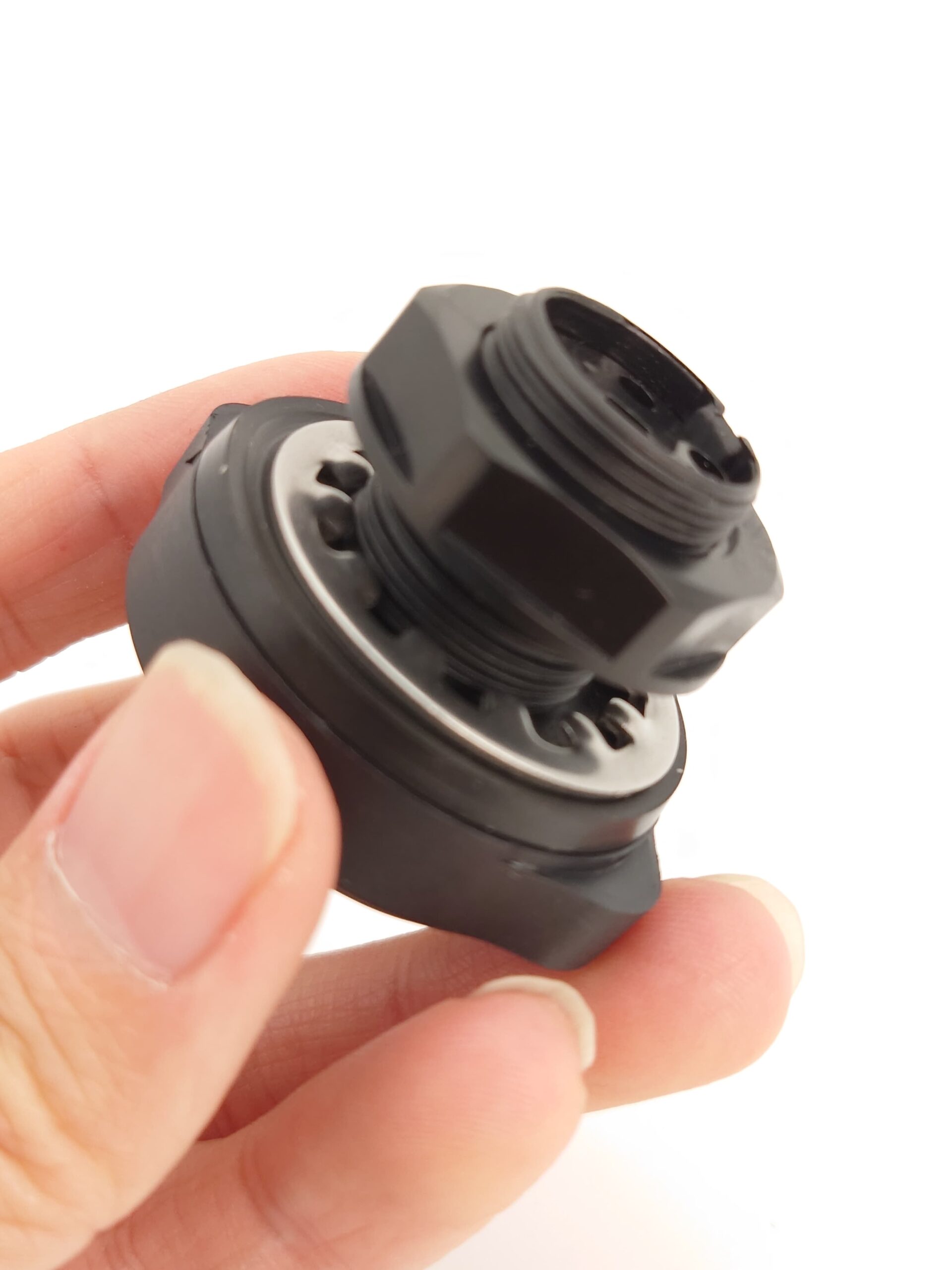

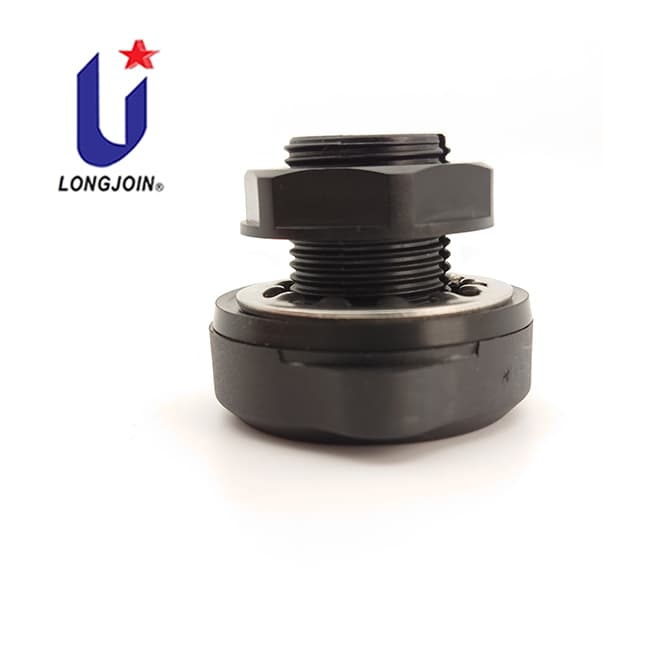

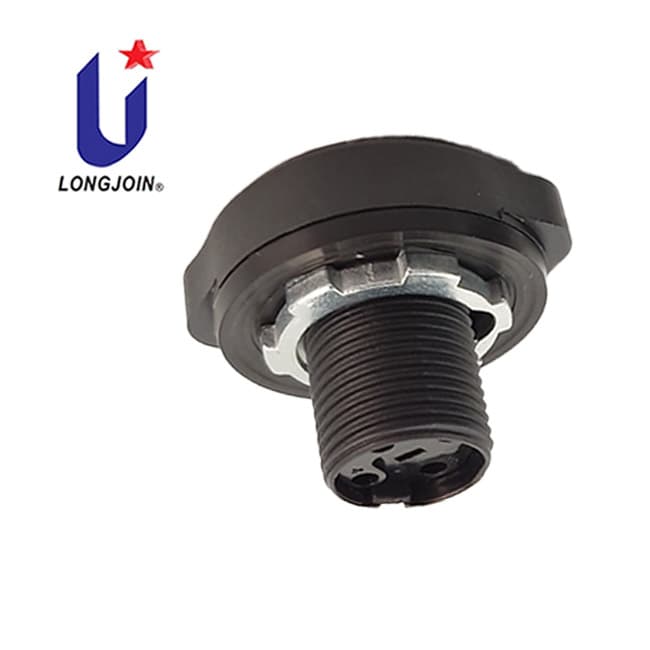

2-zhaga metal nuts or option choose plastic Hexagonal nut.

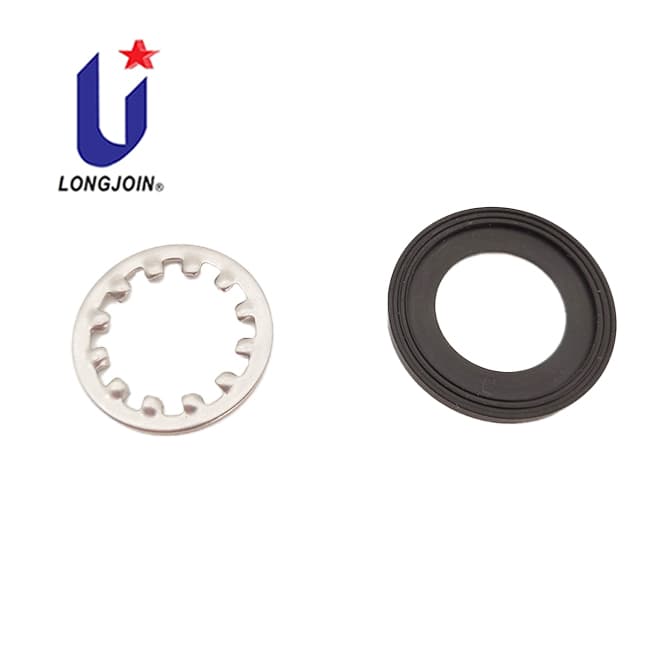

3-special material silicone gasket.

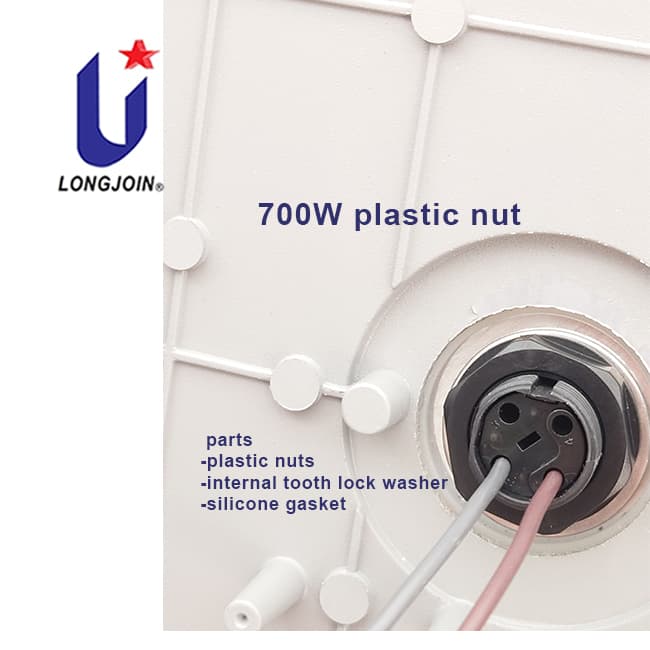

4-if you want plastic hexagonal nut,then you can choose this a internal tooth lock washer to enhance fixed lock robust between socket body and led luminaire. here you know real installation via can watch video.
5-zhaga cap
Model No. | JL-700W (slot design) |
Related Humidity | 96% |
Work Temperature | -40 ℃-70℃ |
Wires Type | 20~22AWG,Strip the head 9 ~ 11mm and tin it |
IP | IP66 |
Certifications | zhaga book18,CE |
* here long-join offer zhaga series controller.
* short thread length type:700T3N, 700T, 700S.
* available customizable wire length;
* optional offer zhaga typle conroller base: JL-701j, JL-711J, JL-731J, JL-732J, JL-741j, JL-742j.
