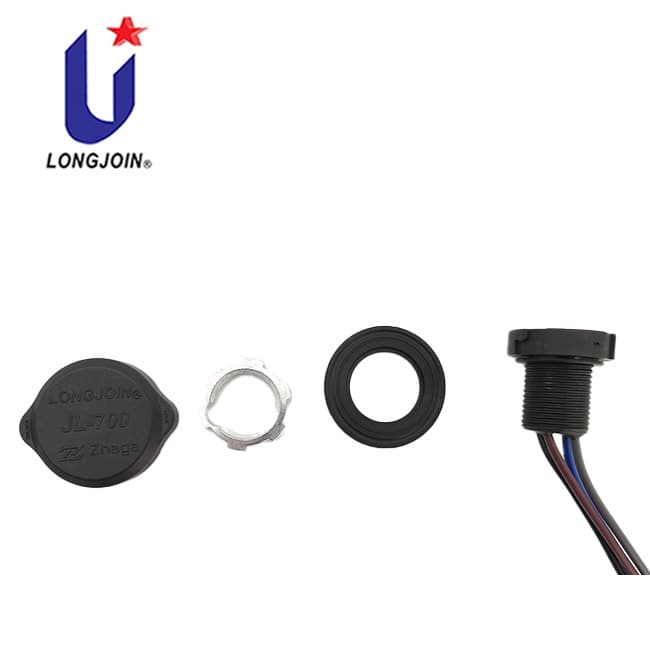

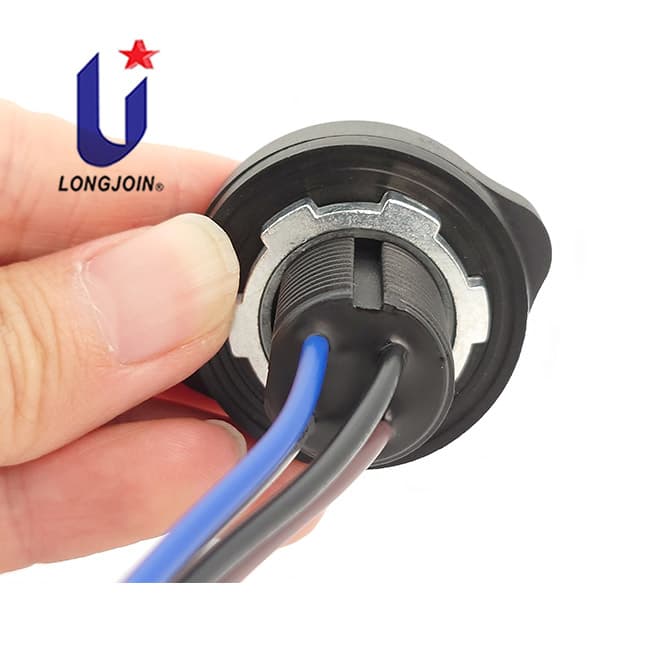

Book18 Zhaga Socket Slot Design with Silicone Gasket JL-700
A new type design 700W zhaga socket with slot feature. This innovative slot design Zhaga socket is an improved version developed by us to solve users’ practical installation problems. The slot design not only solves the problem of the silicone gasket warping against the face of the fixture, but also greatly improves water resistance and ease of installation.

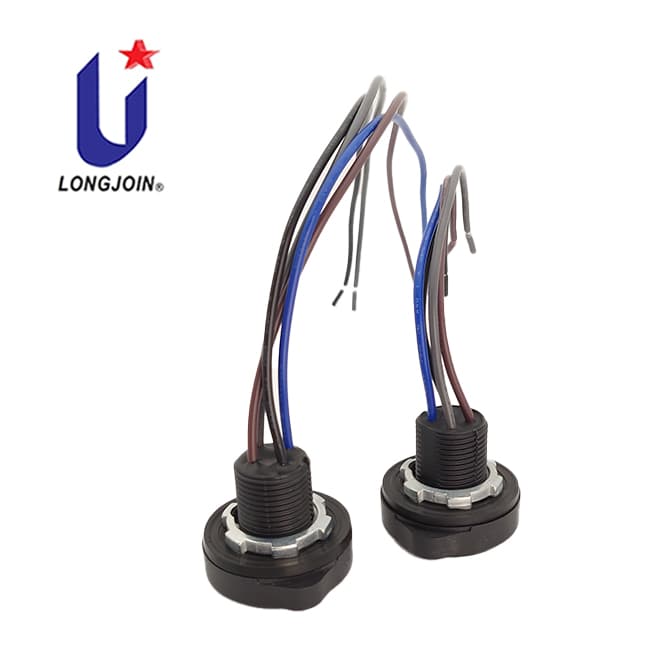

EU Version Zhaga Socket
– Port 1 (Brown): 24Vdc
– Port 2 (Gray): DALI (or DALI based protocol) – /common ground
– Port 3 (Blue): DALI (or DALI based protocol) +
– Port 4 (Black): General I/0
The improved version of 700 Zhaga Slot Socket is more because our previous version had problems with the silicone gasket and the lamp surface warping during the installation process, which may cause the lamp waterproofing problem, and may also cause multiple replacement of gaskets, and may even damage the socket. We designed this Zhaga lampholder with a card slot type not only to solve the problems encountered by users during use, but also to make users more confident in our service and our ability to solve the problems they encounter in real life.

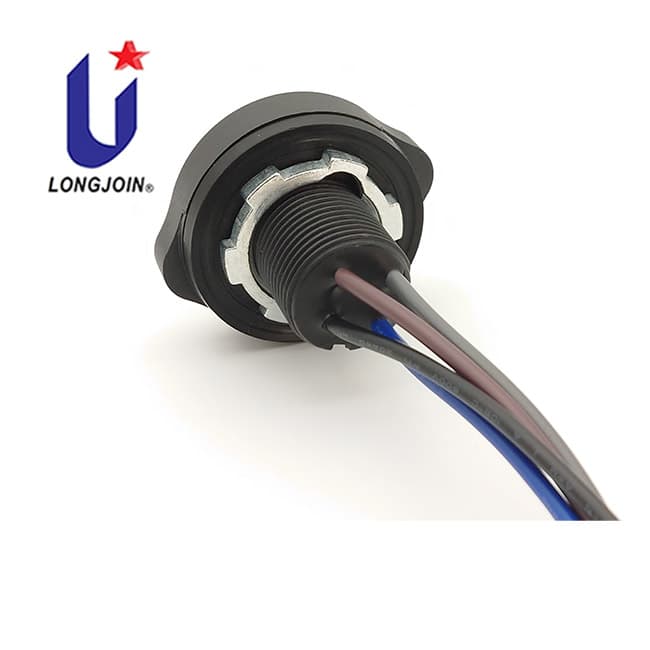

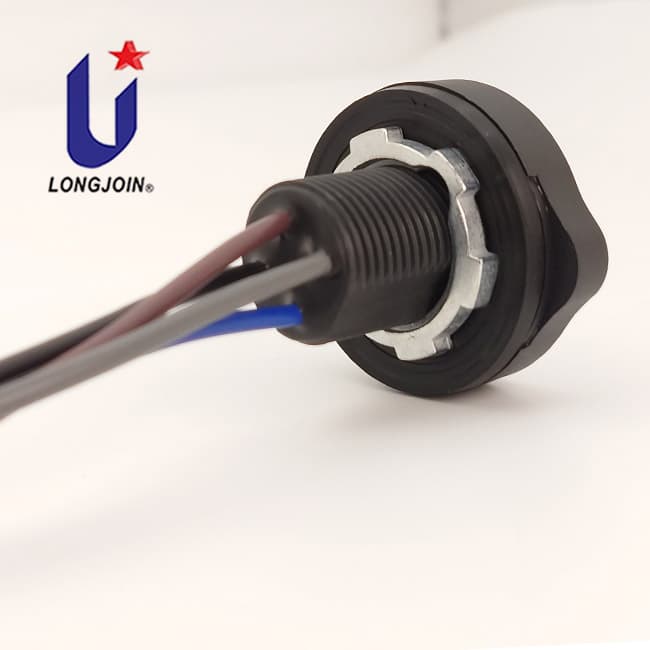

Slot Design zhaga socket 700
In addition, the new card slot design zhaga soket is just right, which gives us various advantages. On the one hand, how do we properly install this silicone gasket to stabilize it on the lamp. On the other hand, how to lock the metal nut of the socket to the top of the LED lamp in the right direction. In this way, the newly designed Zhaga socket has stronger sealing and waterproofing than the ordinary 700 (without slot), reducing the problem of gasket warping during the installation process.

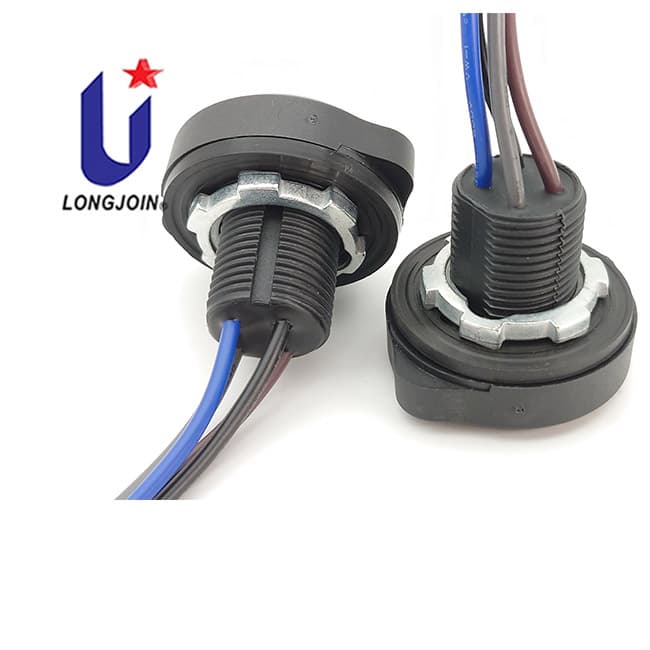

how to place location

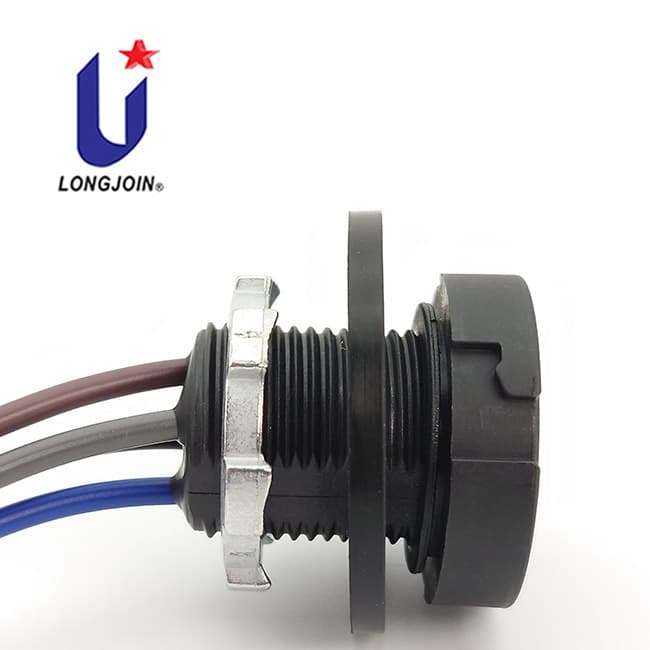

Design structure Feature

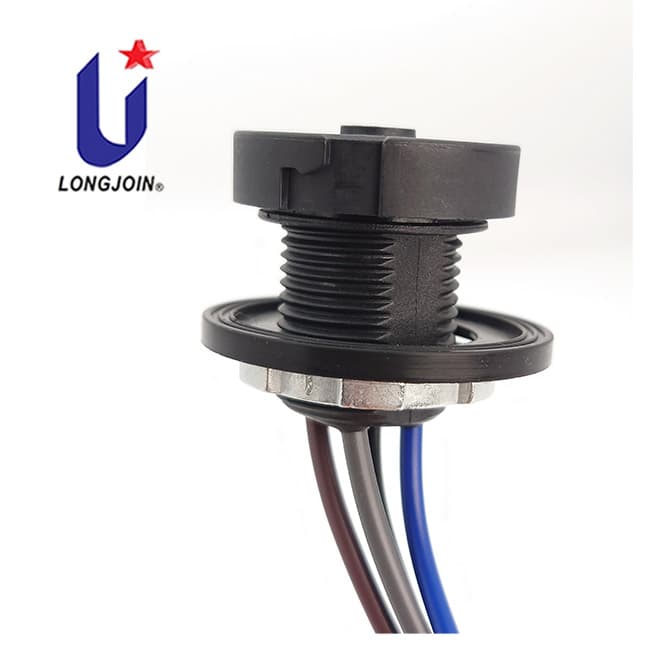

Slot structure: The unique slot design ensures that the silicone gasket is stably fixed and effectively prevents warping.
Improved waterproofness: The optimized design significantly improves the overall sealing effect and enhances the waterproof performance.

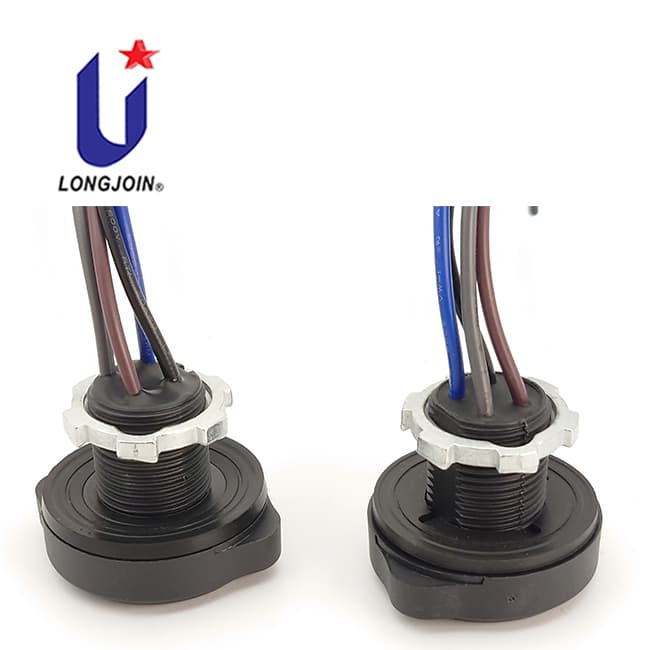

Easy installation: The metal nut can be locked on the top of the LED lamp in the correct direction, simplifying the installation process.
Strong durability: Reduce the frequency of gasket replacement and reduce the risk of socket damage.
Drilling hole Shape and Design Size
Here Product Parameter
Product Model
JL-700 (slot design version)
Thread Diameter
M20X1.5
*Wires
AWM 1015,18/20/22 AWG,105°C
6″
IP Grade
IP66
Receptacle Diameter
Ø30mm
Gasket Diameter
Ø37.8+/-0.2 mm
Thread length
21.6+/-2 mm
Contacts rating
1.5A, 30VDC (24V typical)
Surge test
Meets 10kV common mode surge test
Capable
Hot pluggable capable
Ik09 test
Pass
Contacts
4 pole contacts
Port 1 (Brown)
24Vdc
Port 2 (Gray)
DALI (or DALI based protocol) –/common ground
Port 3 (Blue)
DALI (or DALI based protocol) +
Port 4 (Black)
General I/O
*Conductor specification: # 20 conductor has UL certification
