Why Your Outdoor Photocontrol Leaks: The Hidden Truth About JL-240X Screw Torque (0.6–0.7 N·m)
Introduce
Outdoor lighting looks simple from the outside. But inside every street light, wall pack, or smart pole, small details decide whether the system stays dry or fails. One of the biggest hidden reasons for failure is the screw torque used when installing a photocontrol.
Many contractors don’t think torque matters. But with the JL-240X photocontrol receptacle, even a tiny mistake can lead to water leaks, corrosion, or complete device failure.
The goal is simple: help installers, city teams, and lighting engineers avoid leaks and protect their photocell street light systems for many years.
What Makes A Photocontrol Leak During Outdoor Lighting Installations?
Outdoor lighting devices face rain, dust, storms, and extreme temperature swings. The JL-240X photocontrol base is built to handle these conditions, but leaks still happen if the installation steps are not followed correctly. Most leaking problems come from small mistakes that don’t seem important at first.
The main causes of leaks include:
Root Cause | Simple Explanation | What Happens |
Incorrect Torque (Below or Above 0.6–0.7 N·m) | Screws are too loose or too tight. | Gasket won’t seal or the plastic base can crack. |
Misalignment of the “NORTH” Arrow | The installer places the base crooked. | Weather seal becomes uneven, allowing water to enter. |
Thermal Stress | Heat and cold change screw tightness. | Over time, the seal weakens and leaks appear. |
When even a few drops get in, moisture begins to corrode the terminals. Over weeks or months, this may cause failures in the photocontrol lighting sensor or the photoelectric sensor used for dusk-to-dawn operation. That is why Long-Join always teaches clients that “small mistakes cause big problems” in waterproofing.
Why Does The JL-240X Photocontrol Need A Torque Of 0.6–0.7 N·m?
You may ask about that number in the guide. Why must the screw torque be 0.6–0.7 N·m? It may look like a small thing, but this number is tested. Long-Join engineers use real stress tests, humidity chambers, and long-term outdoor trials to choose this range.
Here is why that number matters:
1. Torque Affects Gasket Compression
The silicone gasket around the base needs a balanced squeeze.
- Below 0.6 N·m→ not enough pressure to seal water out
- Above 0.7 N·m→ too much pressure damages the gasket or base
The ideal range gives around 20–30% gasket compression, which is perfect for keeping rain and mist out.
2. Material Behavior Matters
The JL-240X uses UV-stable plastic and strong stainless steel screws. Each part expands and shrinks at slightly different rates. The torque range keeps them balanced so the seal stays tight all year.
3. The Torque Protects Electrical Components

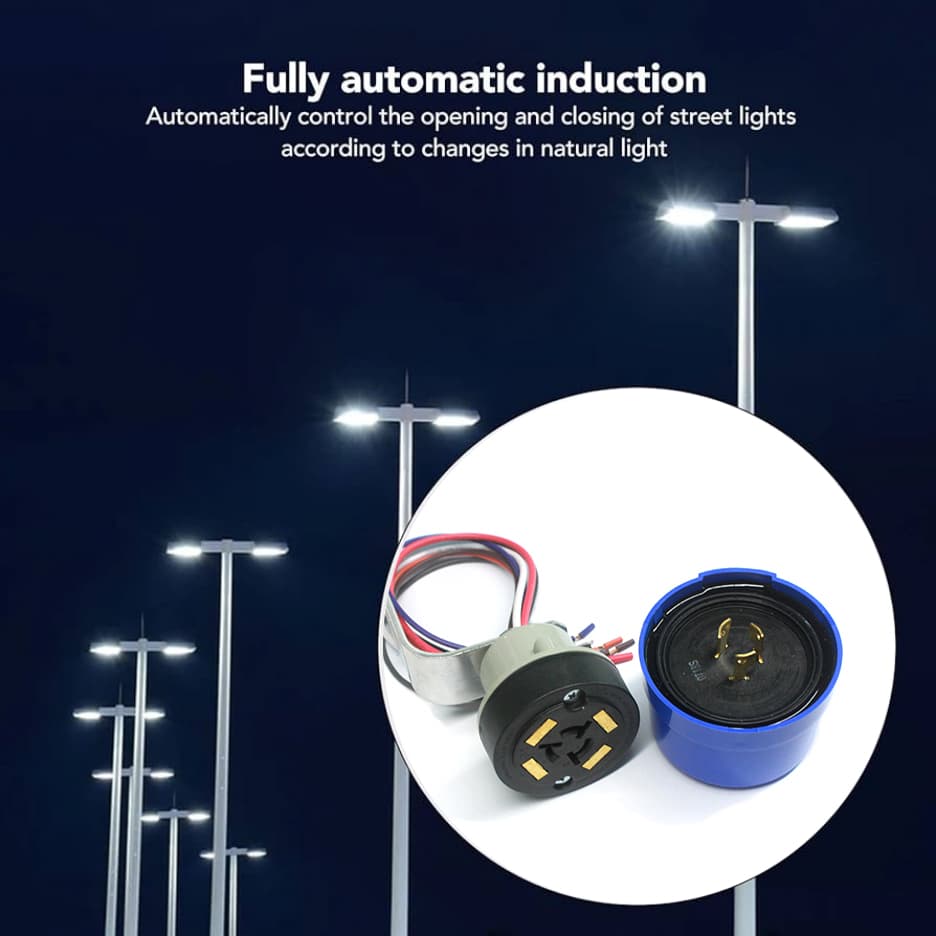

Inside the JL-240X is the connection for the dusk to dawn photocell sensor, which controls the street light’s automatic ON/OFF behavior. If water enters, the sensor may
- turn the light on too early
- fail to turn it off
- short-circuit the system
Correct torque protects the entire lighting control system.
How Do You Fix A JL-240X Leak And Prevent It From Happening Again?
If a leak has already happened—or you want to prevent one—there is a simple 3-step method that Long-Join recommends. These steps came from our field engineers who support global lighting projects.
Step 1: Apply Torque Correctly
Use a digital torque wrench with ±3% accuracy. Tighten in two steps:
- First to 0.3 N·m (pre-tighten)
- Then to 0.65 N·m (final torque)
This reduces uneven pressure and helps the gasket seat properly.
Step 2: Check Your Installation Alignment
Every JL-240X has a NORTH arrow on the base. Installers must point the arrow north. Sunlight from other directions can change the photocell’s daylight reading.
If the arrow is not centered, then the gasket gets uneven pressure and water trails can form on one side.
Step 3: Do A Simple Spray Test
After installation, spray water lightly around the base for one minute. Then check the inside of the housing.
- If the gasket imprint is even → seal is good
- If the imprint is broken → retighten screws correctly
This quick test has helped many installers avoid long-term waterproof failures.
How Does Misalignment Or Poor Torque Cause Real Outdoor Failures?
To make this easier to see, we break it down. Watch what happens when torque is low, high, or uneven.
Torque Condition | Simple Explanation | Outdoor Result |
Under-torqued (<0.6 N·m) | Screws not tight enough. | Water enters during storms; corrosion starts. |
Over-torqued (>0.7 N·m) | Screws too tight. | Polycarbonate cracks; gasket bends out of shape. |
Uneven Torque | Some screws loose, others tight. | Tilting seal creates water channels. |
What Tools And Checks Help You Install A Photocontrol Correctly?
A good installation doesn’t require expensive tools. With the right steps, small teams and city electricians can keep performance steady.
Below is a simple checklist:
Step | What To Do | Why It Matters |
1 | Use a torque wrench that measures 0–2 N·m. | Prevents guesswork. |
2 | Pre-tighten screws lightly. | Helps even gasket compression. |
3 | Align the NORTH arrow. | Ensures correct sensor behavior. |
4 | Inspect gasket for cuts or twists. | Damaged gaskets cause leaks fast. |
5 | Spray test after installation. | Confirms waterproof seal before field use. |
Helpful Tip
Use a silicone-compatible grease on screw threads. This helps the torque apply more smoothly, reducing friction and installation errors.
Why Does Waterproofing Matter More In Today’s Smart Lighting Systems?

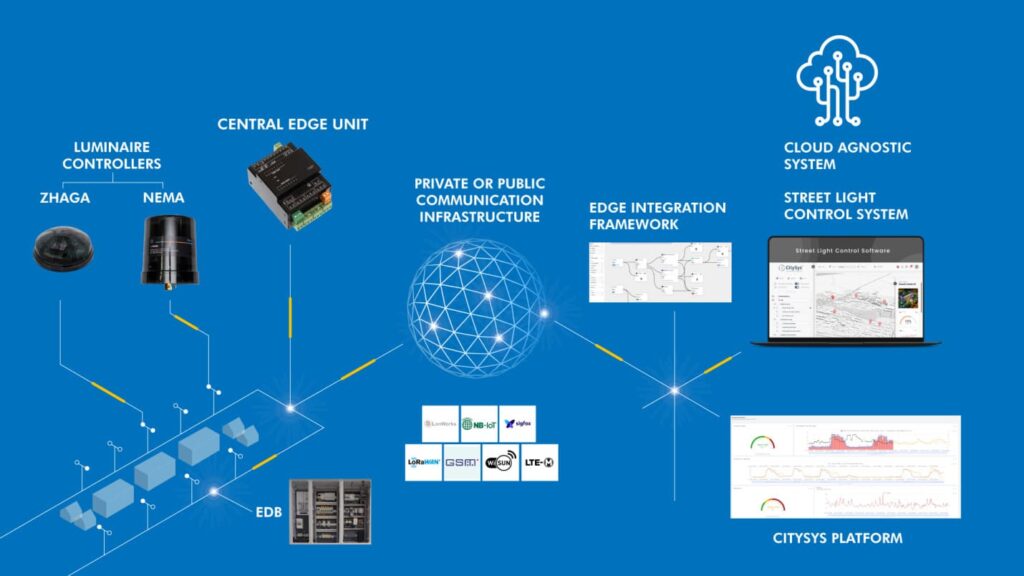

Outdoor lighting is changing fast. Cities now use smart poles, remote-control street lights, wireless dimming, and cloud-based management. All of these depend on stable, dry, and protected photocontrol systems.
When a photocell sensor or photocontrol receptacle leaks, the entire system may fail. This affects:
1. Automatic Lighting Control
The light sensor photocell switch may misread daylight if moisture enters. This leads to:
- lights switching ON during the day
- lights switching OFF at night
- flickering or random behavior
2. Surge Protection Performance
The JL-240X includes components rated up to 460J/10kA, but water and corrosion reduce these ratings quickly.
3. Maintenance Costs
Cities spend more money replacing failed units. A simple torque mistake can multiply long-term maintenance by 2–3×.
4. Customer Buying Trends
Online search trends show rising concerns:
- “photocontrol waterproof failure”
- “IP65 photocontrol problem”
- “photocell for street light not working”
- “how to fix dusk to dawn photocell sensor”
This shows what buyers care about today: quality, reliability, and long life.
How Can You Extend The Lifetime Of Your JL-240X Photocontrol?
Proper installation is only the first step. Good maintenance keeps your system healthy for many years.
1. Recheck Torque Every 6 Months In Harsh Areas
In coastal areas, deserts, and very rainy places, temperatures change fast. Over time, this can loosen screws.
A quick torque check prevents future leaks.
2. Replace Gaskets When Needed
If the gasket becomes:
- twisted
- cracked
- compressed too flat
…it should be replaced. Using a fresh gasket protects the entire device.
3. Use High-Quality Photocontrols
Cheap light photocell sensors often fail early. Long-Join designs photocontrols with strict waterproof standards and sturdy materials.
4. Choose IP67-Rated Components
The JL-240X supports IP67 when installed correctly. This rating protects your photo switch sensor from dust and short-term immersion.
5. Train Installers On Torque Standards
A simple 10-minute training session can prevent hundreds of dollars in failures. Many lighting teams add torque steps to their procurement checklists.
Conclusion
The small torque range of 0.6–0.7 N·m may look unimportant, but it protects your photocontrol from leaks, corrosion, and electrical damage. Even a tiny 0.1 N·m change matters. It can cut JL-240X life 30%.
Installers follow steps—aligning parts, tightening, checking the gasket, and spray testing. This keeps the setup steady in storms, humidity, and salty air.
If you want the best results for your street lighting outdoor projects, always treat the torque step as a must-follow rule.
