Fabricante de conectores padrão NEMA da marca LONG-JOIN desde 1996

A marca LONG-JOIN é especializada em conectores de fotocélula com trava giratória e também é chamada de receptáculo padrão da série NEMA. Nosso receptáculo é compatível com ANSI C136.41 e UL, C-ul, CB, CE, etc. e o receptáculo da série NEMA fornece módulo de interface que faz a interconexão elétrica e mecânica entre uma célula de controle de fotocélula ANSI C136.41-2013 e uma luminária.

O receptáculo de fotocélula de 7 pinos é um receptáculo de dimerização compatível que fornece 4 contatos de dimerização totalmente plugáveis para suportar métodos de dimerização de 0-10 V e uma interface de iluminação endereçável digital (DALI), ao mesmo tempo em que fornece uma interconexão de energia confiável com três contatos de trava de torção robustos. Outros 3 fios são contatos de energia.
• Contatos de energia terminados em fio trançado 14AWG
• Contatos de sinal terminados em fio trançado 18AWG e fio de saída de dimerização do driver DALI de 3/4.

e os receptáculos NEMA foram projetados para a luminária com uma interface padrão, bem como um módulo estendido de dispositivo de luminárias de luz. por exemplo, um plugue ANSI C136.10 de 3 pinos com trava giratória no sentido horário em um conector fêmea e lanternas de lâmpadas tem um bom efeito à prova de chuva e anti-impacto.

O receptáculo de fotocélula de 3 pinos é uma conexão universal comum e costuma ser um conector fêmea padrão ANSI C136.10-1996. Nosso receptáculo de 3 pinos não é usado apenas para controle de fotocélula ANSI C136.10, mas você também pode escolher a tampa traseira JL-200Z. Além disso, você pode escolher diferentes tamanhos de suportes de alumínio para montagem, a fim de aprimorar as soluções de iluminação para controle do sensor de fotocélula do crepúsculo ao amanhecer em condições limitadas.

Novo produto de receptáculo NEMA com funcionalidade
1- Disponível com tampa traseira giratória limitada e ABS com fios de cabo de porca de trava à prova d'água. Ex.: JL-260C, JL-200ZCWP, JL-240TZCWP;
2- Especialmente o receptáculo JL-240FXA oferece anéis de vedação de silicone na superfície SUPERIOR com orifício para parafuso e recurso de abordagem ilimitada à prova d'água;
3- Faixa de orientação limitada de 360° para evitar atolamentos de fios. por exemplo, JL-260D1, JL-260D2.

Para Você Fornecer Boas Soluções
Além disso, se você deseja receptáculos especiais e individuais, podemos ajudá-lo a refiná-los e redesenhar o mesmo corpo do receptáculo, mas com um corpo diferente com os fios conectados. Por exemplo, corpo do receptáculo com fio de cabo; e escolher fios tubulares retráteis para melhorar a resistência à água e o isolamento; adaptar o corpo do receptáculo com conector de bloco de terminais de fios ou trocar completamente os fios de cabo com bloco de terminais para uso. Além da ideia inovadora acima, estamos disponíveis receptáculos com design flexível, com kits de suporte de parede para atender às necessidades dos usuários europeus.

>>Receptáculo NEMA 7 PIN

>> Receptáculo JL-240

>> Receptáculo NEMA 5 PIN

>>Receptáculo de 3 pinos

>>Soquete Zhaga

LONG-JOIN Fornecer Recursos

>> Certificações

>> Catálogos de produtos LONG-JOIN

>>Galeria de vídeos LONG-JOIN

More about NEMA type Photocontrol Receptacle

NEMA type Receptacle JL240

Base NEMA type receptacle specification

Max voltage:0-480v, but real load value is more than 480 voltage. here you curious about this, you can send me Email.
Top surface outer circle diameter 64.5mm。 Secondth circle diameter is 48.7mm.
Screws both are M4 type.
Overall receptacle structure, receptacle body, four gold-plated pads and 7 root wires.
Watchful! this 4-pads with phosphor bronze Nickel plated and gilded thickness over0.7um. it is worthy attention, can enhance avoid abrasion between pin and pin, and keep dusk to dawn photocontrol work safely from Oxidation reaction would produce fire hazardous long-term.
Glass-Fiber stronger PBT, let our photocontroller steady work harsh environment. such as UV Exposure,Salt Spray,High Humidity and Strong Winds.
If this socket rear terminal with silicone seal, then receptacle waterproof feature strengthener than un-seal. here you can reference these items. JL-240F, JL-230F, JL-200.
JL-240xa with alone type silicone gasket.
JL-240 both 240XA, and 240XB. 240XB with 0-10V dimming receptacle for only dimming controller.

JL-240xa, here ANSI C136.41 7 pin receptacle available, which to be plug-into different type twist lock light controller. below one choose of you best led lighting solution.

solution	light control+receptacle	content
1	JL-240XA&JL-205C	economic sets and to meet numerous street lighting project
2	JL-240XA&JL-215C	high effience and and saving energe
3	JL-240XA&JL-207C	to meet municipal lighting Tender document requirements, or true brand qualities by we patiently screen.
4	JL-240XA&JL-205F/E	discount or replace JL-207E/F this good solutions
5	JL-240XA&JL-215F/E	discount or replace JL-207E/F this good solutions
6	JL-240XA&JL-208-IP66	to meet smart cities light fixture upgrade future
7	JL-240XA&UM-208	discount or replace JL-208-IP66 solution
8	JL-240XA&UM-205	more convenient and cheap or replace UM-205 solution

Notas:

JL-240X special in nema 7 pin type receptacle, this is can boardly usage space in led lighting fixture. so its make-craft cost higher than other pin receptacle, as like the same lighting base JL-200 (universal type 3 pin receptacle), JL-250, JL-260, JL-230, JL-250F&JL- 250G (surge protection module), JL-250P(NEMA type Power Tap Receptacle).
Whether know you mount outside light fixture bracket is depend on your target and mount environment.
here list 8 kinds solutions about JL-240XA, then you can also direct choose another receptacle is to be replace on the website. finally, let you will know how choose best lighting solutions.

NEMA type 7 pin receptacle, it is key feature that 0-10v and dali dimming. this rear terminal with different gauge, such as power lead with 18AWG, AWM1015, signal lead 14AWG, AWM1015.

Notas: This type receptacle can support dimming mode :DAli and 0-10V. how do wiring dimming drivers according your led light fixture providers arrangement inner electronic devices.

NEMA Receptacle with signal wire definition

1,2 indicates to reveal 0-10v dimming. on the top surface gold-plated pads stand for +/-. these who align to gray and violet lead.
3,4 digital mark signal is consistent to dali dimming leads, 3-orange and 4-brown. here you see know this.

LED lighting solution (4), ANSI C136.10-2017 Jl-207C

LED lighting solution (1)

LED lighting solution (6)

NEMA type Receptacle Video

led lighting solution 3 pin receptacle series

led lighting solution improve waterproof version JL-240FXA

led lighting solution JL-240Z ABS back cover and wall mount

led lighting solution JL-260C cable type and available rotate receptacle

NEMA type Receptacle JL-200 series

JL-200 series as 3 pin receptacle, it has 2 variants, such as JL-200X, JL-200Z.

JL-200X, X-this rear terminal without cover. Generally, here primarily choose this for you. However, if you want to let light fixture more than tightly seal ever, here could place nema 3 pin receptacle back terminal with silicone glue. so this lighting solution is perfect help you.

JL-200Z, 3 pin receptacle with ABS back cover. it is mount way either on up the lamp shade or outside mount someone where.

Your special requirement lists

here wire universal wire gauge, #12,#14,#16 and #18.
consideration usage in temperature impact on. you can choose 105 celsius, and 150 celsius.
silicone gasket thickness 3mm or 12mm.
this type receptacle with rear back rear terminal with wire can change to waterproof cable connector. here JL-200CWP. if you want to use cable wire without waterproof nut, here can recommend JL-200C.

JL-200 with support brackets type

L: Aluminum bracket
T: Steel bracket
right side picture about assemblies diagram.
Note: JL-200x and JL-200Z, these are to choose different bracket. naturally, for 200x , you also standalone receptacle.

NEMA type JL-200

JL-200Z-14

200x suportes de suporte

200ZCWP Waterproof cable connector

Conector macho de suporte disponível

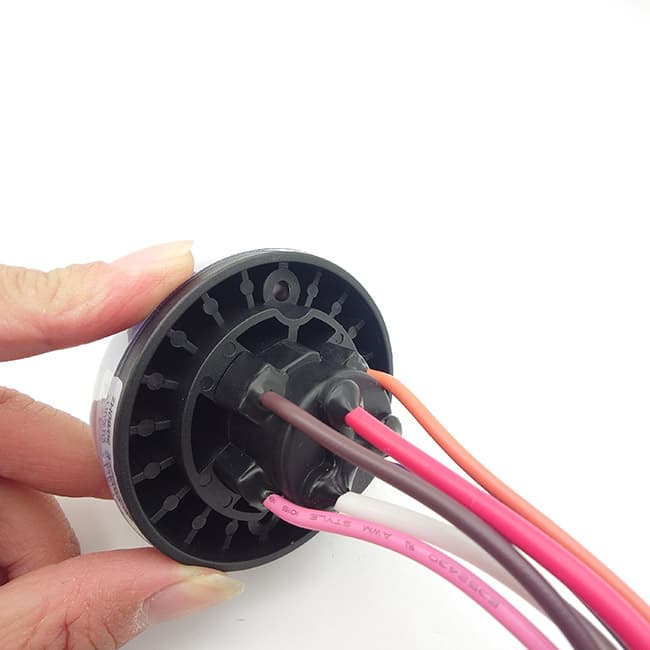

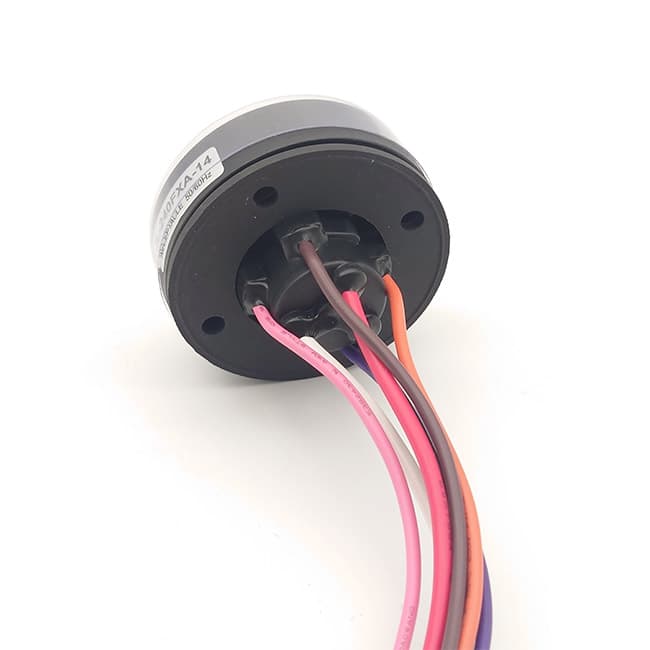

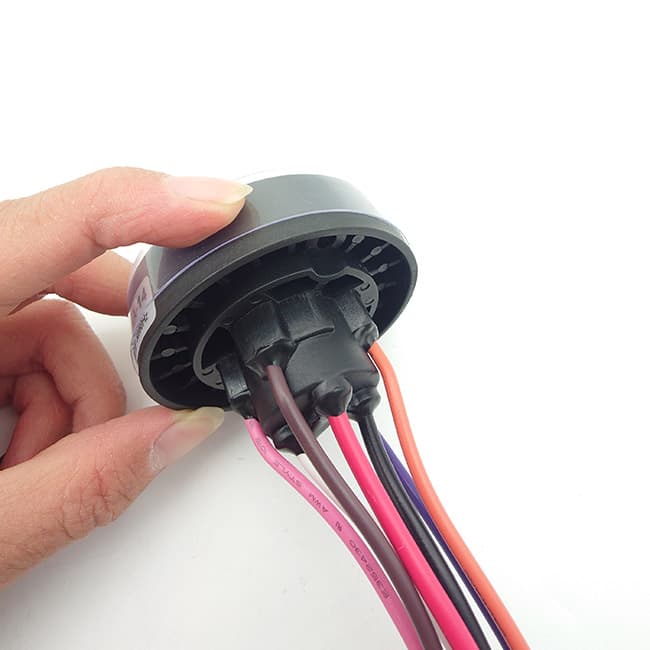

NEMA type Receptacle JL-240F

JL-240F, this type receptacle is similar to NEMA 7 pin JL-240X, which is base common structure scheme and signal wire. However, Enhance version JL-240FX with unique seal rings and rear terminal with silicone seal. it offer offers screw hole O-rings.

Kay Parameter

rated Voltage 0-480VAC, Maximum upper limit 700V.
contact pas with phosphor bronze.
receptacle body material PBT with glass fiber and UV stabilizers.
wire type, power and signal wire. its wire gauge keep parallel to JL-240.
Finally, this type receptacle has 2 kinds, like as 7 pin and 5 pin.
Once mount this on the led light fixture, your high pole light waterproof level up to IP66.

NEMA type Rotation Receptacle

Here our provider NEMA type Rotation Receptacle, and you choose from pin type such as 3 pin, 5 pin and 7 pin. below list these item along with core performance feature.

3 pin type NEMA receptacle

JL-230 series, JL-230 with silicone seal, this can rotate to target location by use screws plug into center hole.
JL-230F, this type receptacle rear terminal with waterproof silicone seal. the same operation way with JL-230 in rotation aspect.
Observação: JL-230 with bakelite, and JL-230F is made from PBT. which type 3 pin receptacle is suit for temperature of light fixture surround? so easy, you can use tool to measure. you get know.
JL-230 both has common structure part, receptacle center body, silicone gasket and 2 or 4 screws hole cover available.
M4 type screws.

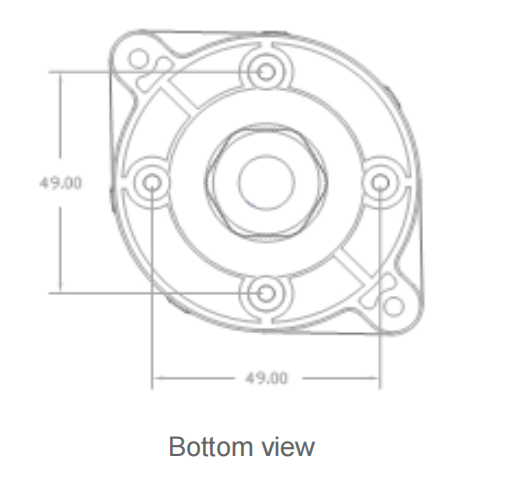

JL-260C type NEMA receptacle

JL-260c with 5 pin or 7 pin receptacle, this with rear terminal back cover and waterproof cable gland. on the receptacle structure and contacts material keep fellow JL-240 same, but this type receptacle is supportable rotation.
Material: PC body + nylon holder cover.
Cable wire core from universal wire, such as AWG14 and AWG 18.
Once can you see, these wire inherit JL-240 7 pin receptacle rear terminal with 7 roots function. one side can direct power, one side can be signal connected.
This can be used to mount light fixtures or with an aluminum bracket for external mounting.

Conector tipo prensa-cabo M20

A cable gland connector is available.
Material options include stainless steel and plastic.
M20

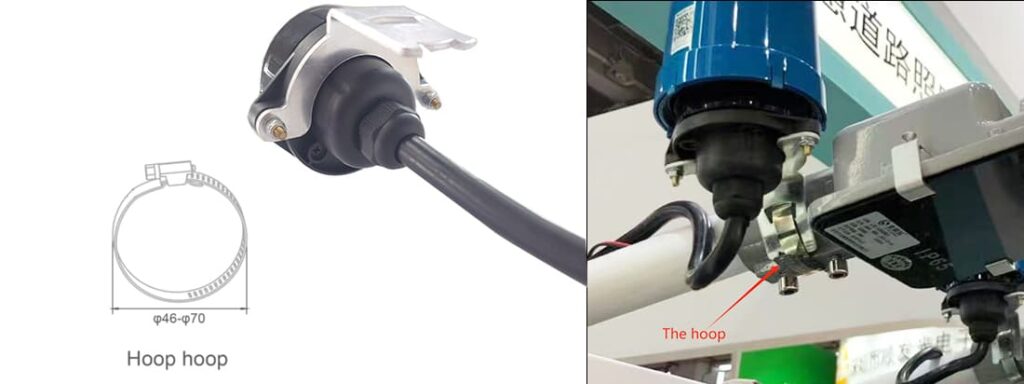

Right display JL-260C support brackets

special aluminum bracket.
Mounting rack, and ring hoop

JL-250T type NEMA receptacle

this type receptacle with 5 pin or 7 pin, so both signal wire or power wires.
250T series receptacle rear terminal with silicone seal.
Compare with JL-230 has common feature. both mutual material: PBT. rotatable by center slot adjustment with screwdriver.
Contrast to JL-240XA, it is important that these has top surface contact pads with length and width in JL250T. from this views, you can utilize controller base pin to fit contact glod pads until win reliable connector. otherwise, you will spend countless time and cost to continue refined controller.
Structure part, receptacle body, and PBT hodler cover, silicone gasket.
note: this type receptacle wire leads also made cable.

JL-240TL type NEMA receptacle

This type receptacle gasket is integration. and it also can support rotation.
