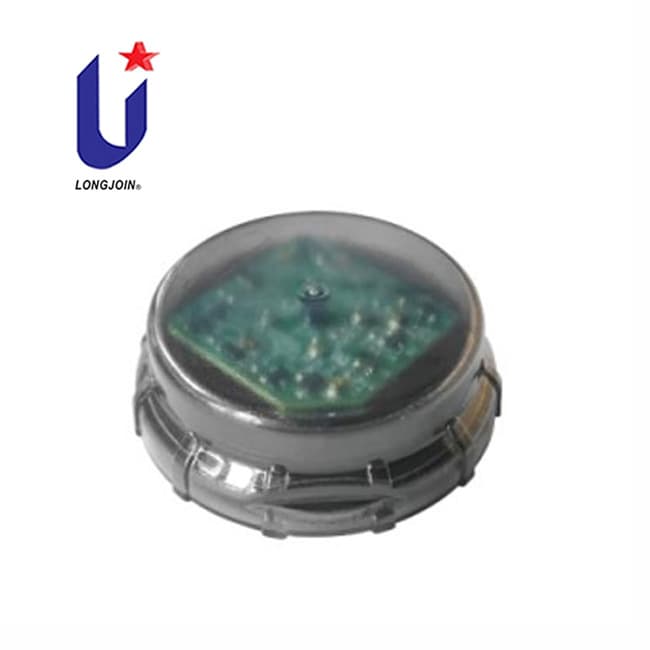

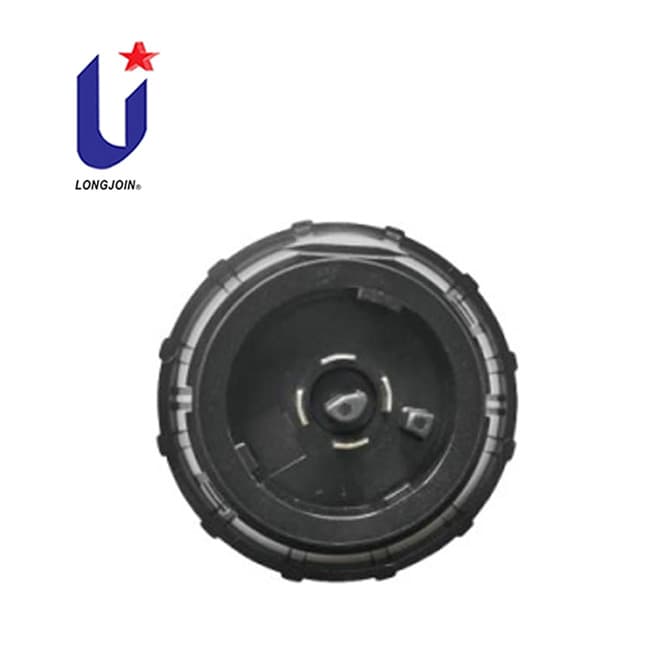

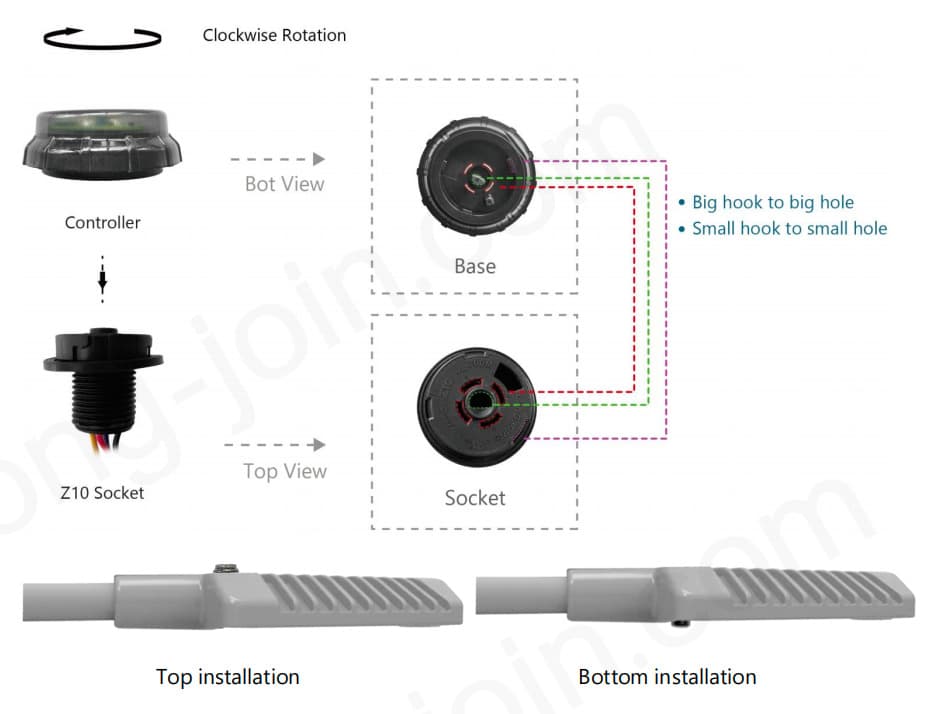

Here a special lighting controller and it is design for american JL-700 Z10 small socek,  JL-771A is an ultra-low-cost electronic twist lock light controller lt can output 0V or 10V dimming signal through self-photosensitive. The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.

additionally, this is more significant features:

1-12-24V DC power supply (extra preserve a aid ac-dc convert power)

2-no load power consumption ≤ 0.12W

3-protection grade up to IP66

3-environmental illumination ratio of switch action: 1:4

4-lighting controller baseplate or cover height size, there are parameter is change by our technical worker to help you achieve your idea.

Model	JL-771A
Voltage	12-24VDC, 3mA
Power consumption	1.2 mA (at night), 1.5m A (at daylight)
Dimming output	0v / OD output
Spectral Acquisition Range	800~1100nm
Default turn-on threshold	16lx+/-10
Default turn-off threshold	64lx+/-10
initiate state adjustment	light on for the first 5s after opening
Light on delay	5s
Turn-off delay	15s
Flammability Level	UL94-V0
Anti-static interference(ESD)	IEC61000-4-2 Contact discharge:±8kV,CLASSA Air discharge:±15kV,CLASS A
Mechanical Vibration	IEC61000-3-2
Operating Temperature	-40°C~55°C
Operating Humidity	5%RH~99%RH
Life	>=80000h
IP rating	IP66
Certificate	CE,CB,Z10

** here this JL771A light sensor controller has nothing either midnight dimming or wireless transmission protocol.
* here our have various styles and multifuntionalies application, and core breakdown product type.
support Casambi Bluetooth mesh communication network:JL-712B2A2,
wireless linkage function JL-712G3L,
object motion by trigger and infrared remote control: JL-712A2H

* you can choose different Smart controller series, and also you can connect the lamp luminaire module base type assemblies. such as JL-700M, JL-700Mk4, JL-770W, etc.
