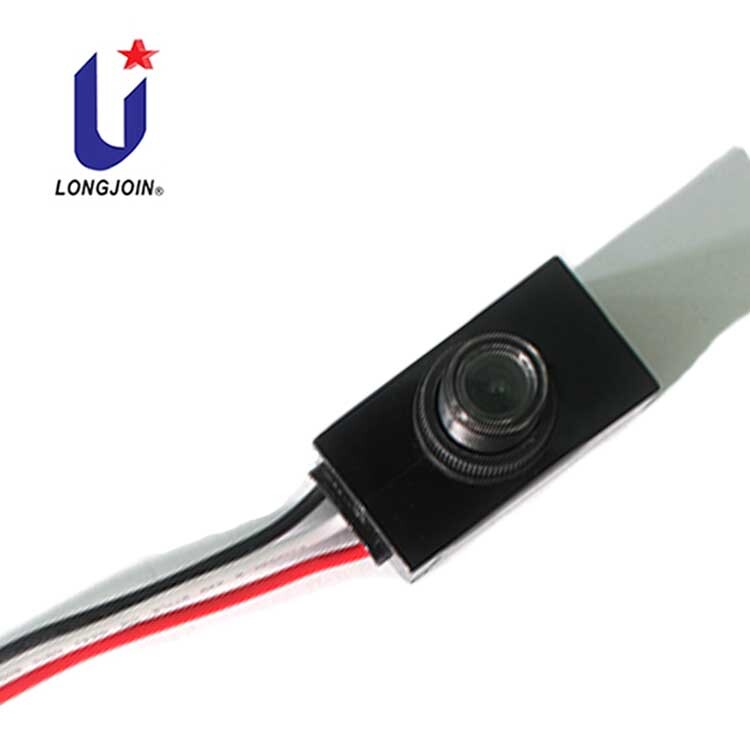

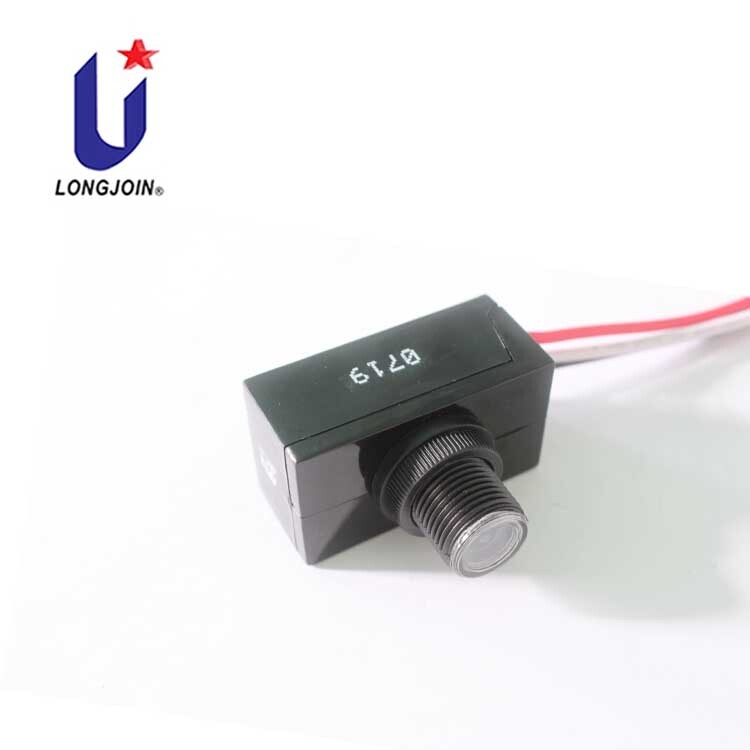

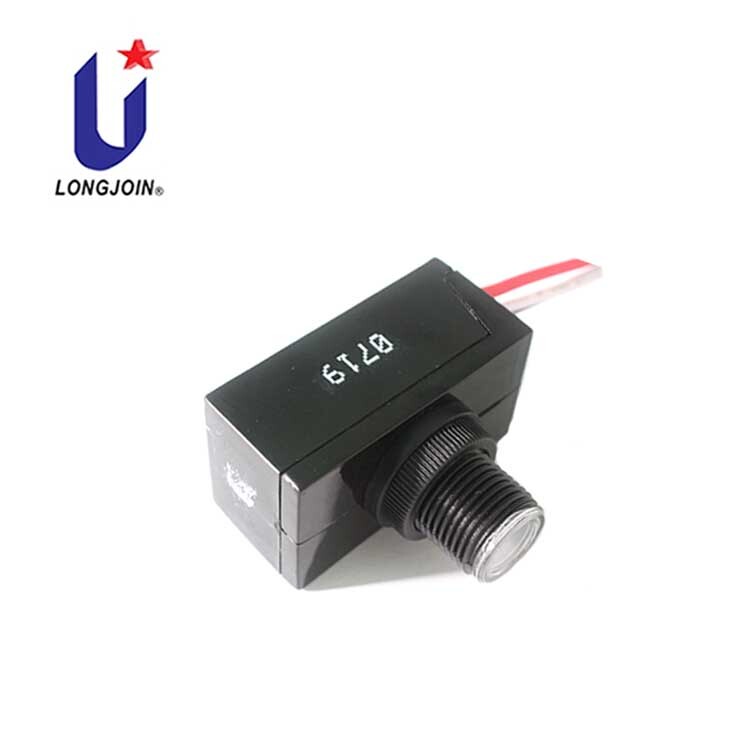

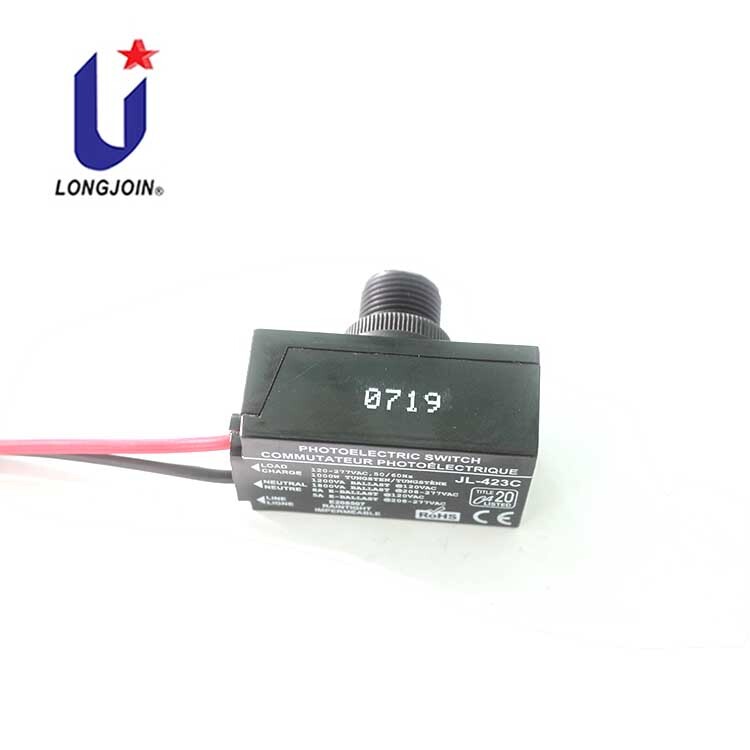

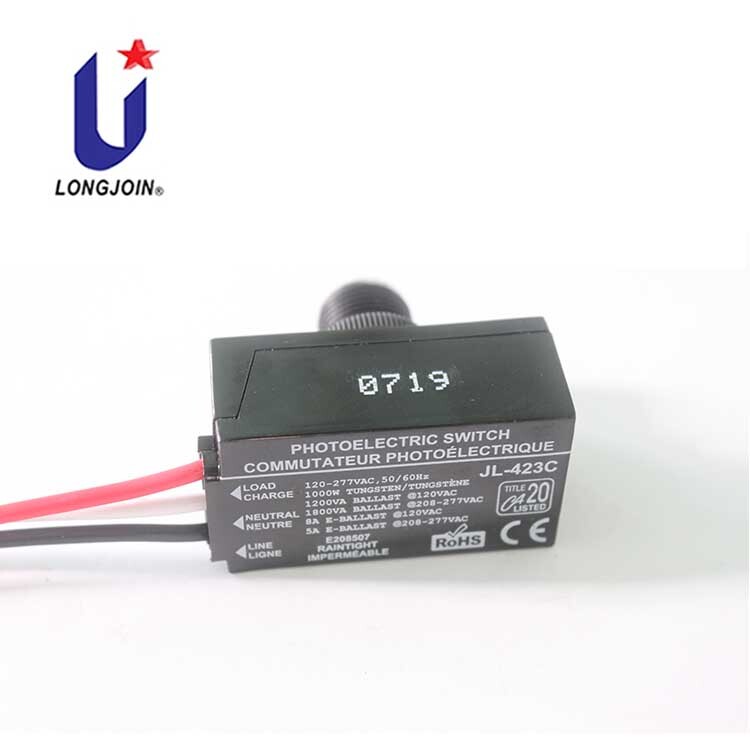

The photoelectric switch JL-423 series is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

1. 3-10 s time delay.
2. JL-423C provides a wide voltag ranges:90-305v, or customer request.
3. Power Consumption:0.5W Max/li>
4. Fail-On / Fail-Off Modes Available

* electronic type Button control series product including JL-423C,JL-42CM,JL-42CZ,jL-423CMZ.
* furthermore, here offer an upgraded version of Zero-cross technology built-in it.
* Surge protection (optional):JL-423CM, JL-423CMZ, both two type controller maximum limit protection level:460J/ 10000A;

*Generally, If the name of the photocell series type contains special characters, such as -Z, -M, -C4, -C5, -F, etc. you can either choose a versatile standard controller or select certain features to customize the light sensor switch. Therefore, this number and alphanumeric character are beneficial in distinguishing between different controller models and provide me with the best judgment sample correlation. below list:
-Z=Zero-cross
-M=MOV
-C4=Fail-on
-C5=Fail-off
-F=uropean wiring color code with RoHS mark (UKCA)[option]

*Lead rating
-16=16 AWG, 105ºC rated
-16G=16 AWG 150 ºC rated

*optional cap
-black shading cap
-transparent rain cap
-none.

-Wall Plate, aluminum panel(optional)
-UL holographic label(optional)
-IP Rating: IP54,IP65
