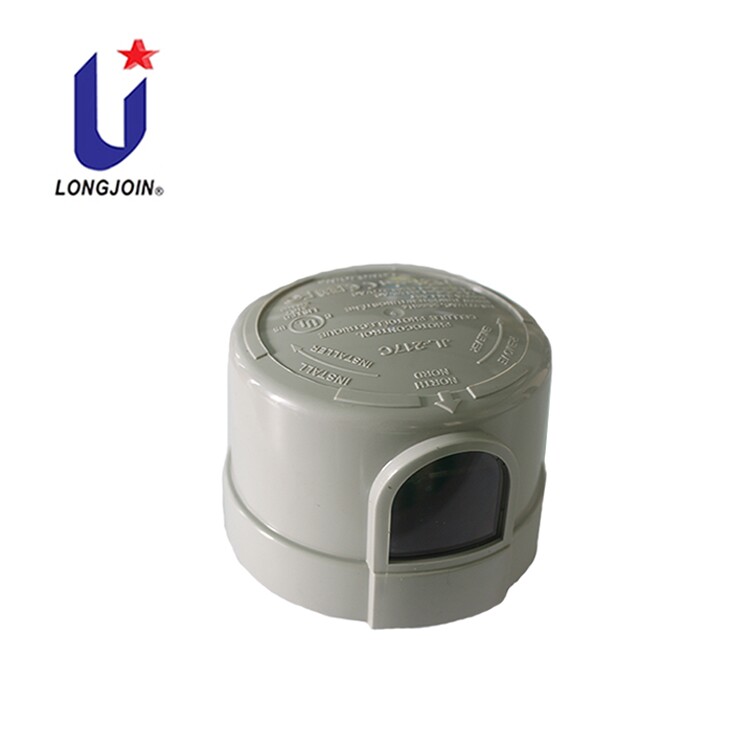

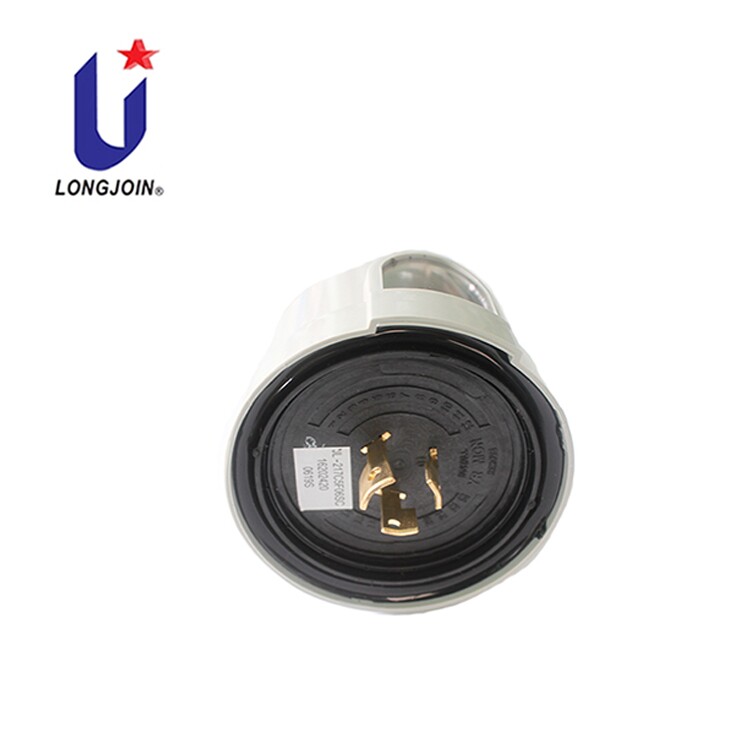

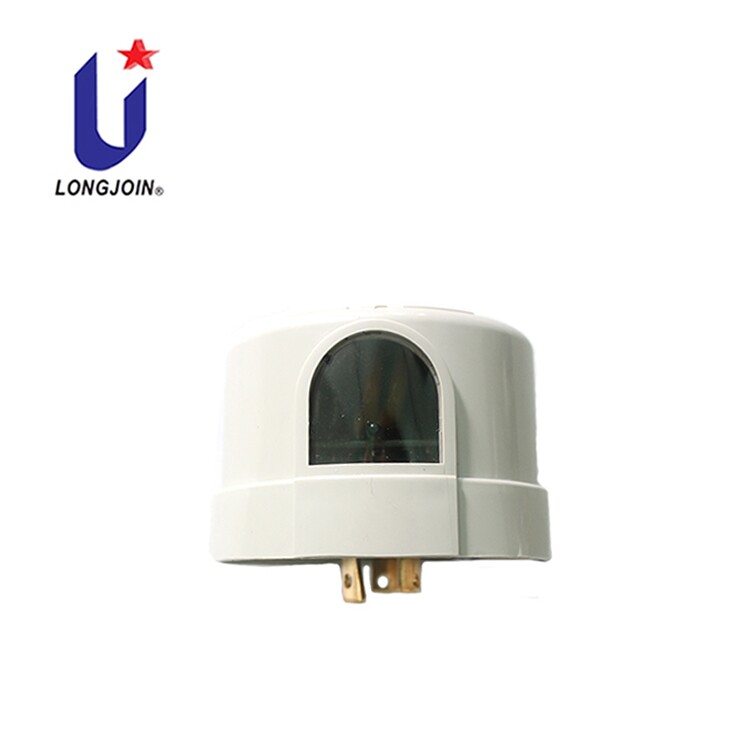

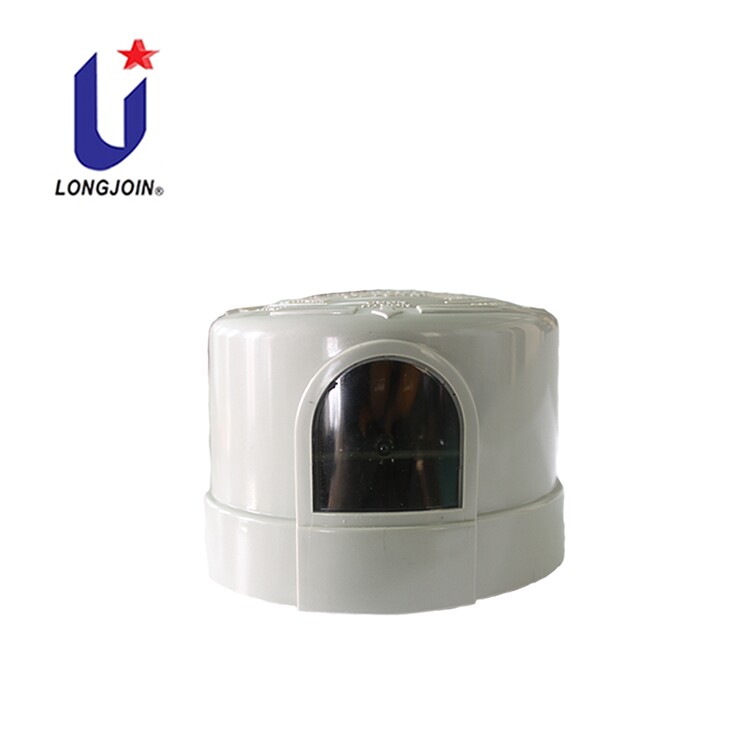

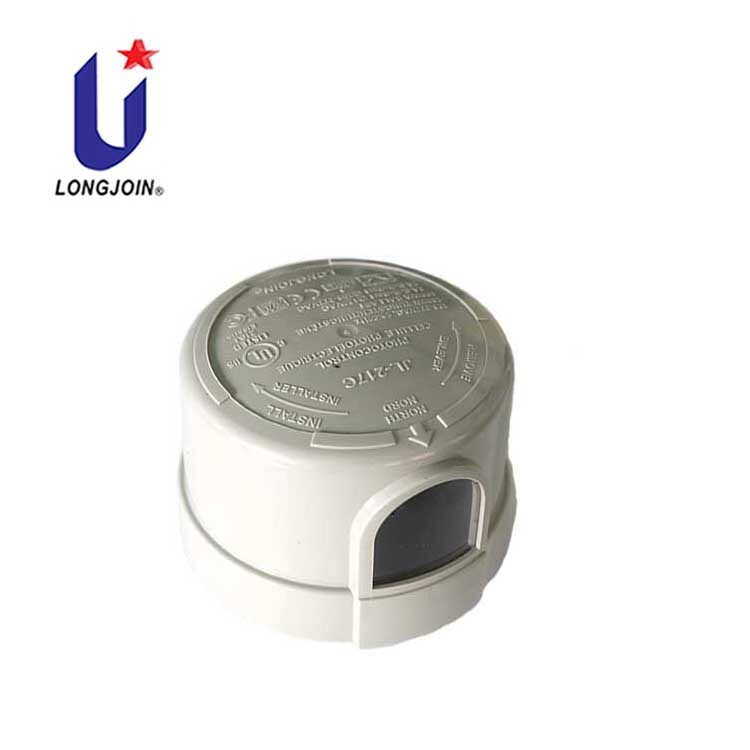

1. Product Model: JL-217C
2. Rated Voltage: 120-277VAC
3. On / OFF Lux Level: 16 Lx on; 24 Lx off
4. IP Rating: IP54, IP65, IP67
5. Compliant Standard: CE, ROHS, UL
The photocontrol JL-217 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level,where higher lightning protection feature is required.
This product is designed with microprocessor circuits with IR-filtered phototransistor and a surge arrester (MOV) is provided.
Its HP version provides constant reliability as the relay has sufficient work life of over 10,000 cycles, and offers extra long work life when a Sandwich cover option is applied also.
Supports FCC Class A / Class C
Model No. | JL-217C | JL-217E | JL-217F |
Rate Voltage | 120-277VAC | 347VAC | 480VAC |
Rated Frequency | 50/60Hz | ||
Rated Loading | 1800W Tungsten;
1800VA Ballast; 8A@120VAC 5A@208-277VAC e-Ballast; |
1800W Tungsten
1800VA Ballast 5A e-Ballast |
1800W Tungsten
1800VA Ballast |
Power Consumption | 0.5W Max. | ||
Surge Immunity | 6kV Differential-Mode A | ||
Operate Levels | 16Lx On / 24Lx Off / per client request | ||
Ambient Temperature | -40℃ ~ +70℃ | ||
Failure mode | C5:Fail-On
C4:Fail-Off |
E5:Fail-On
E4:Fail-Off |
F5:Fail-On
F4:Fail-Off |
Shell material | PC/PP Sandwich cover | ||
High protection | Sandwich cover(optional) | ||
Zero-cross | ● | N/A | |
FCC | ● | N/A | |
IP level | IP54 / IP65 / IP67 |
* Surge Arrester Built-inIR filtered Phototransistor
* 6kV Differential-Mode A
* You can choose another color Controller cover:
-Blue, and Green, black, gray, etc
-cover material: PC+PC sandwich cove.
-light controller built-in Zero-cross Technology
* you can plan to appoint operate level parameters (lux value) to precision turn off at dawn and turn on at dusk. in addition to adjusting the lux value, so you can restart and pre-set the Turn-Off Time Delay in seconds, in order to quickly respond around environment light level.
*optional choose JL-200x or JL-240X , JL-240FXA-14 photocontrol receptacle.
Here, we offer a variety of street light twist-lock photo controllers with different voltage options, and you can choose from a range of unique IP Waterproof Ratings. In addition to these features, we also offer gift packaging box designs and product functionalities that include sensitive lux operation levels and precision auto-switching for dusk to dawn turning on or off.
Optional Voltage:120-277VAC, 480VAC,12V,24V,48V;
IP Waterproof Rating:IP54,IP65,IP66
