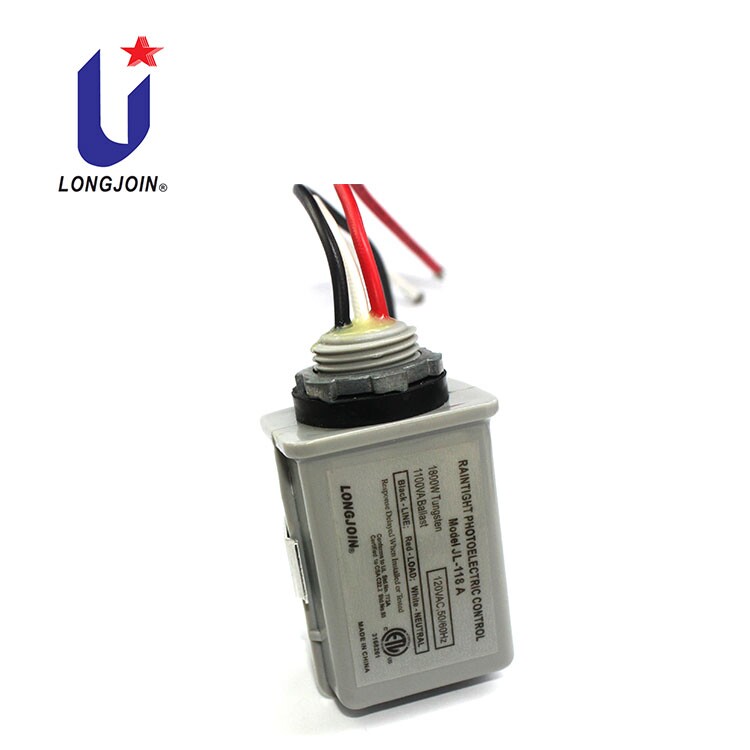

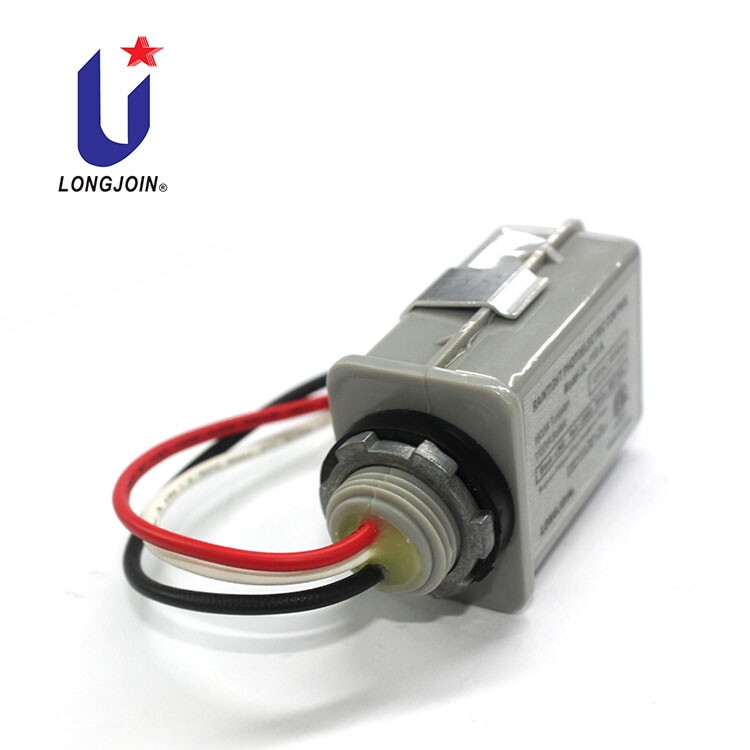

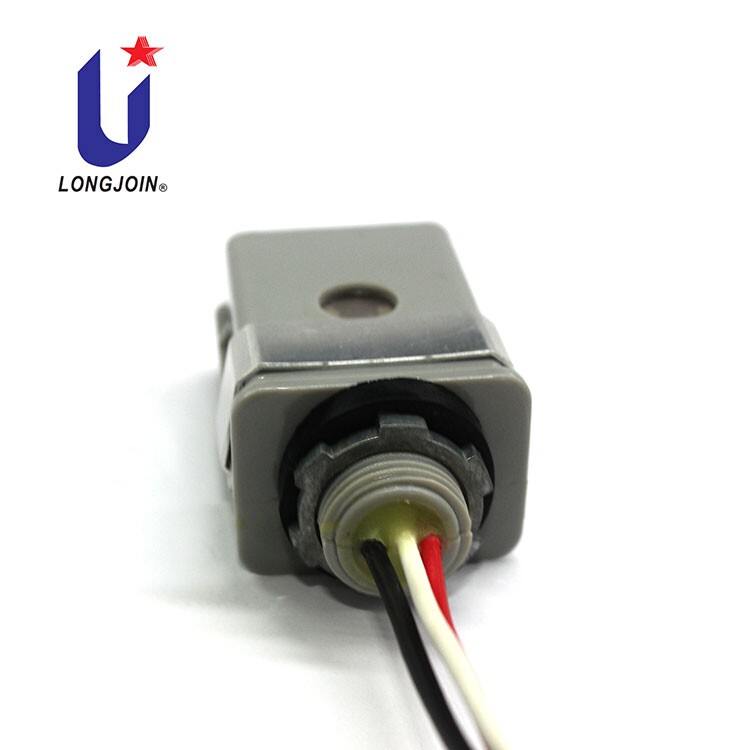

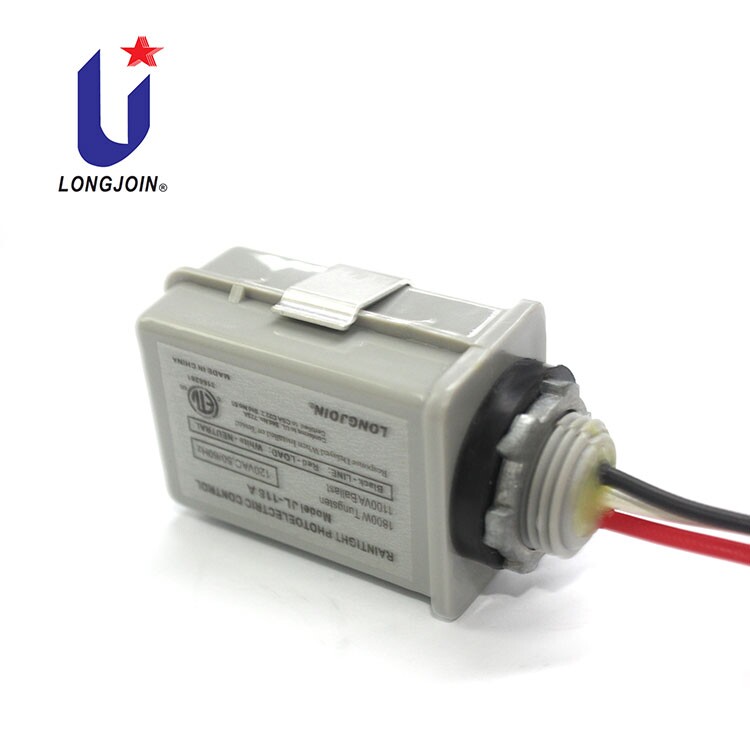

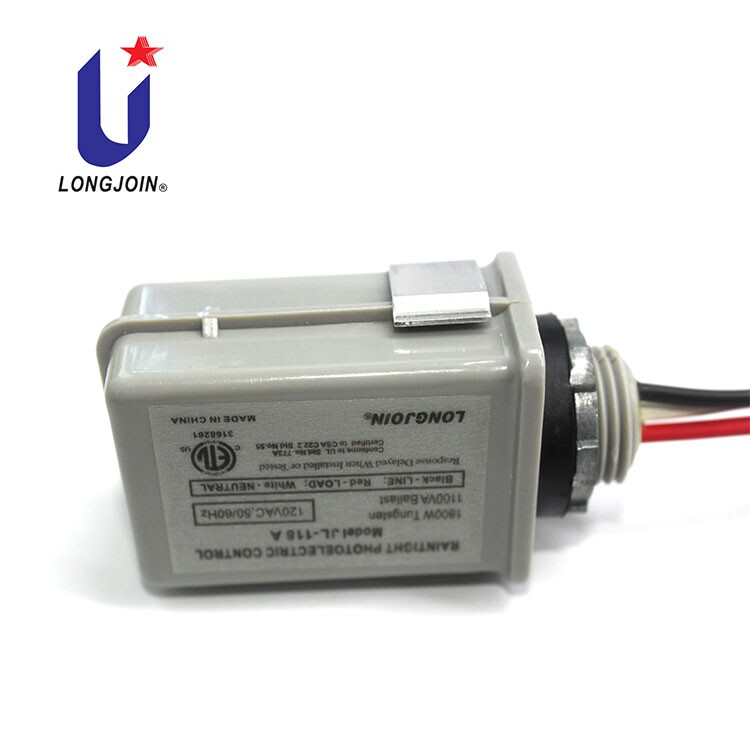

1. Product Model : JL-118A
2. On / OFF Lux Level: 10-20Lx,30-60Lx
3. IP Rating : IP54
5. Compliant Standard: CE,ROHS,UL
Feaute
| Model No. | JL-118A（V） | JL-118B（V） | JL-118C（V） | JL-118D（V） |
| Rated Voltage | 120VAC | 220-240VAC | 208-277VAC | 277VAC |
| Rated Frequency | 50/60Hz | |||
| Rated Loading | 1800W Tungsten、1100VA Ballast | |||
| Power Consumption | 1.5VA Max. | |||
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | |||
| Ambient Temperature | -40℃ ~ +70℃ | |||
| Related Humidity | 96% | |||
| Fail Mode | Fail-On | |||
| Lead Wire | AWG#16,AWM1332
4”min |
|||
| Rainproof Cap | – | |||
| Certifications | UL,CE,RoHS | |||
* you can choose to differ from the voltage Parameter to keep the light fixture normally working with rated load power.
A=120VAC;
B=220-240VAC
C=208-277VAC
D=277VAC
EE=347VAC
FE=480VAC
*Lead length，6”
-stem photocell accessories
-Zicnc nut
-Gasket
-slide slip with shading plate
Model:
At here, we offer a range of wire controller products, including JL-103A, JL-104A, JL-404C, JL-428C, JL-423C, etc.

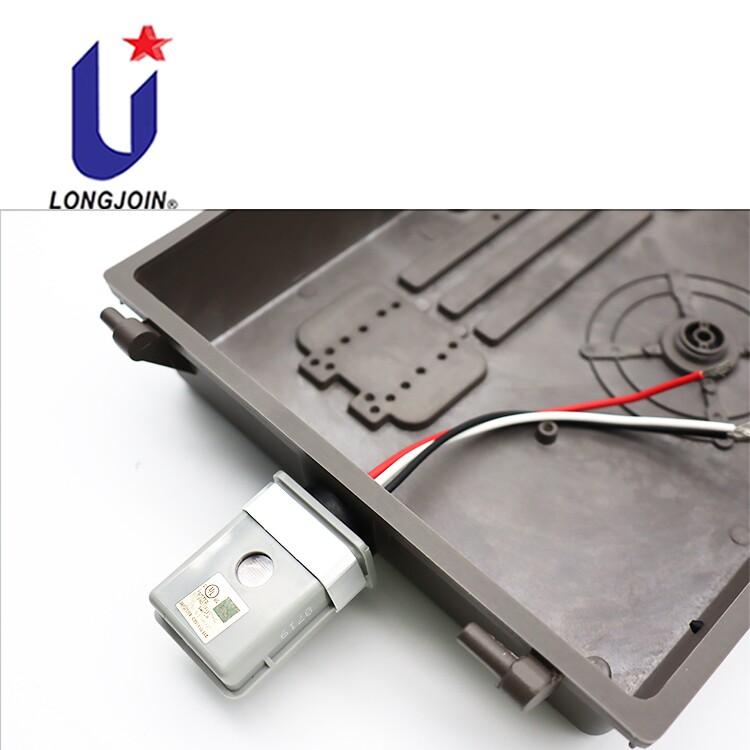

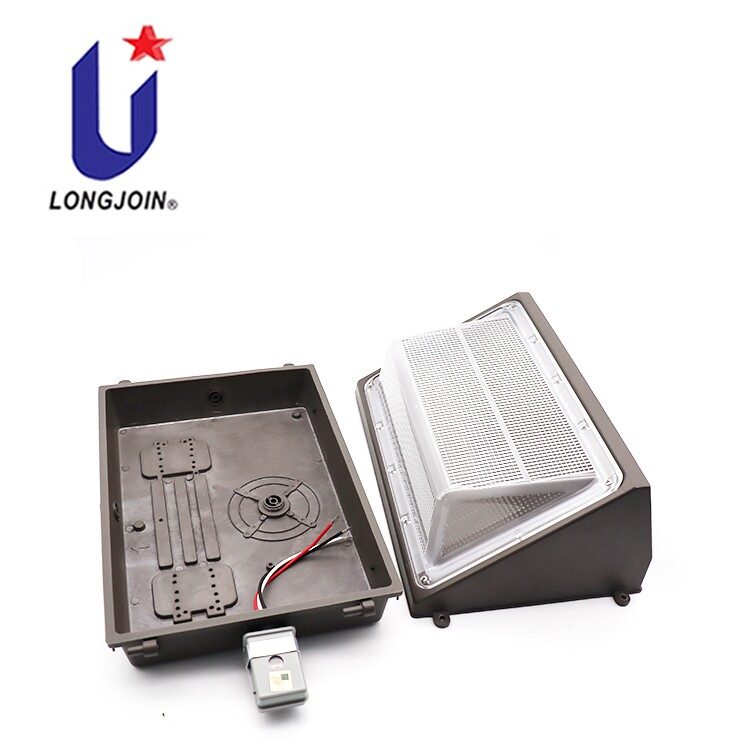

Applications mount type light fixture
1-exterior wall porch light, yard light, and pathway barn light;
2-Wall Mount Adjustable Dual-Head Flood Lights;
3-dusk to dawn porch light with automatic control on-off switch controller;
4-lawn light, spotlight with the photocell to decorative landscape lighting.
