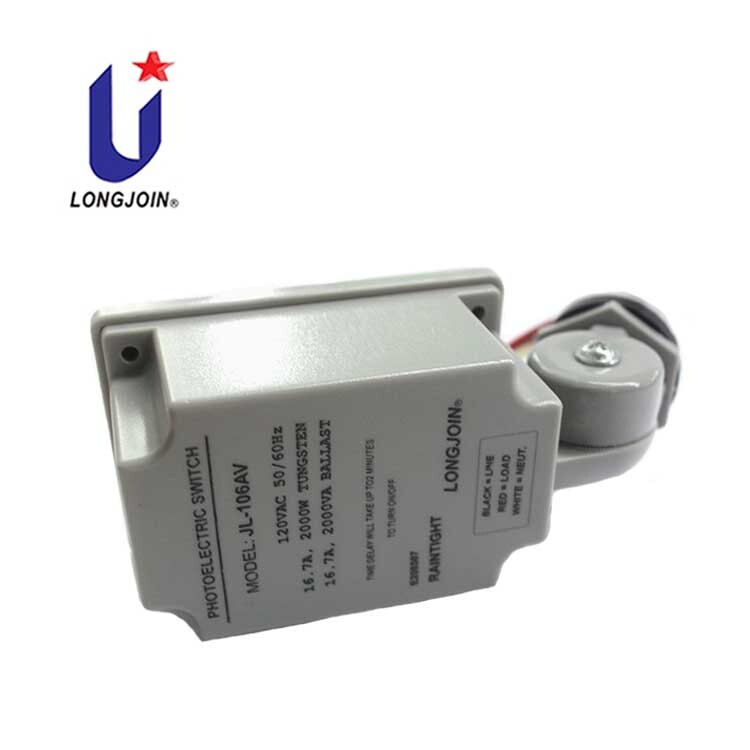

1. Product Model: JL-106AV
2. On / OFF Lux Level: 10-20Lx, 30-60Lx
3. IP Rating : IP54
4. Rated Loading:2000W
5. Compliant Standard: CE,ROHS,UL

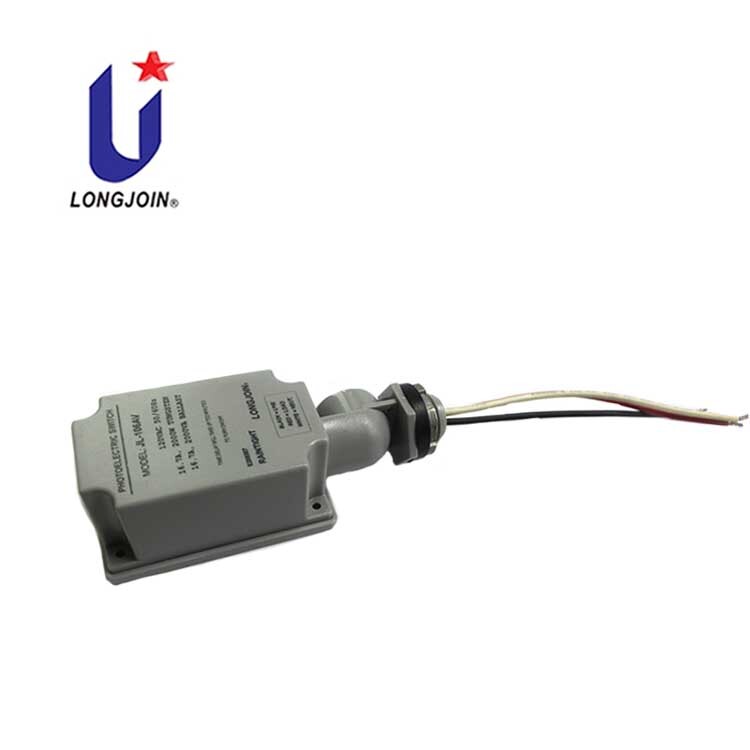

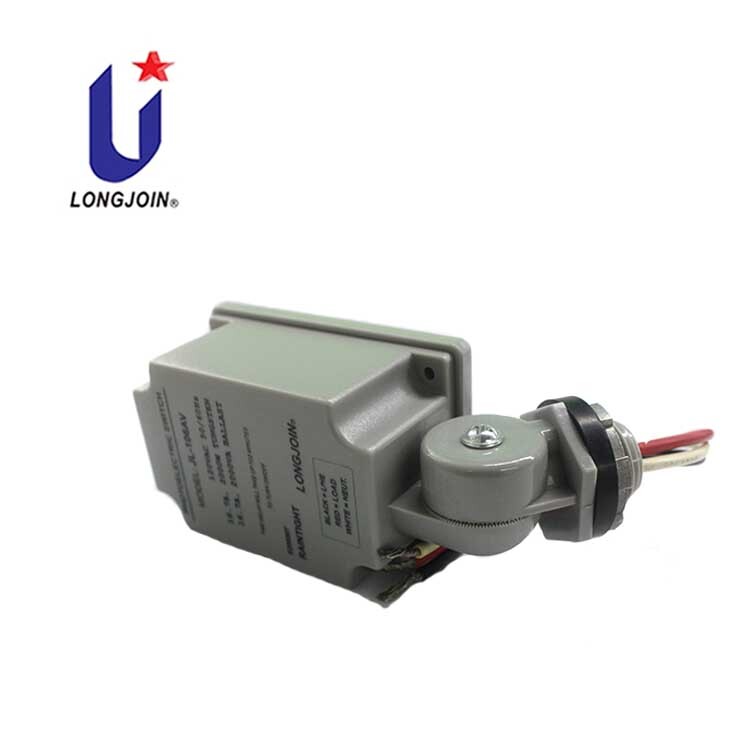

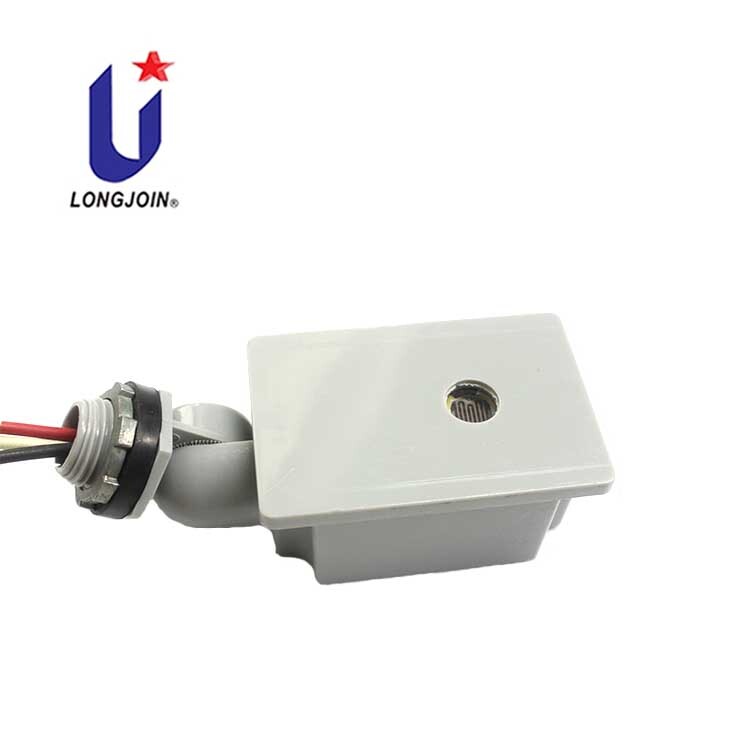

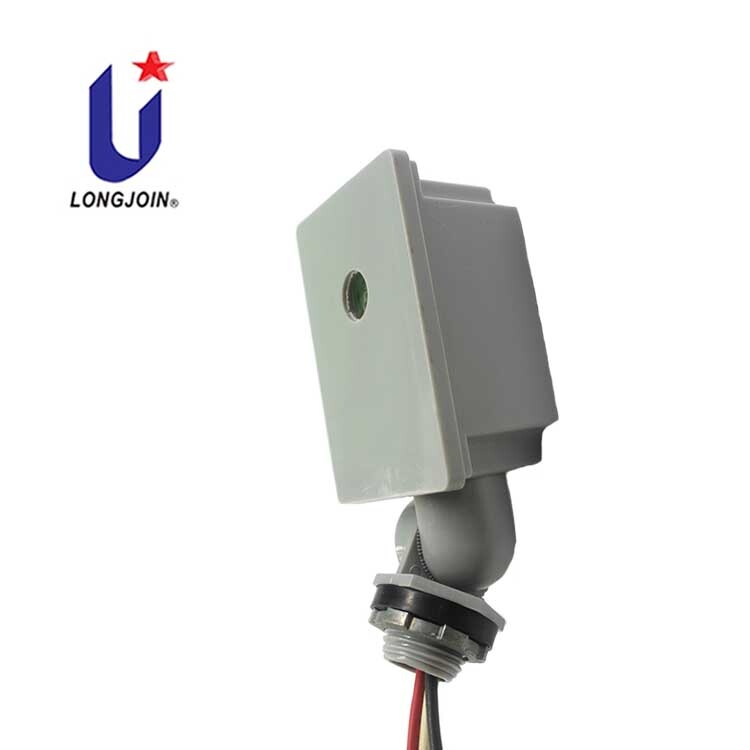

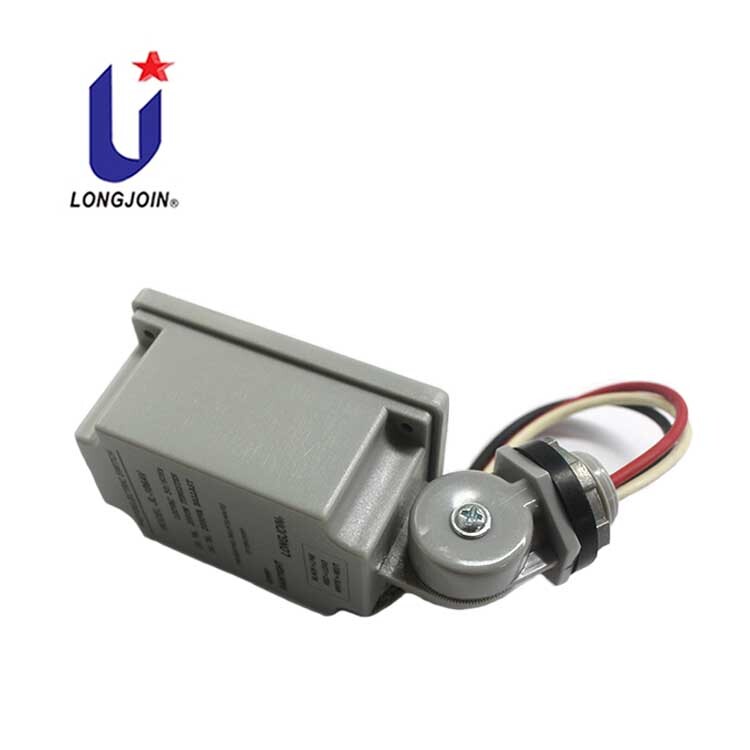

Here this type heavy duty stem photocell enclosure is made from PC material, and lighter weight than JL116, JL126, and it is ideal for ourdoor garden lascape light decoration, but it don’t exposure relentless UV under long time and chlorine-rich environments cause to plastic (ABS/PP) housings to crack within 1–2 years. similar to jl116, jl126 work function, our jl-106seris swivel stem photocell is equipment the same.
| Number | JL-106A(V) | JL-106B(V) | JL-106C(V) | JL-106D(V) |
| Rated Voltage | 120VAC | 220-240VAC | 207-277VAC | 2577VAC |
| Applicable Voltage Range | – | 200-305VAC | – | |
| Rated Frequency | 50/60Hz | |||
| Rated Loading | 2000W Tungsten,2000VA Ballast | |||
| Power Consumption | 1.5W Max. | |||
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | |||
| Fail Mode | Fail on | |||
* you can choose to differ from the voltage Parameter to keep the light fixture normally working with rated load power.
A=120VAC;
B=220-240VAC
C=208-277VAC
D=277VAC
*Lead length，6”
*Lead rating
16-16AWG, 150℃ rated

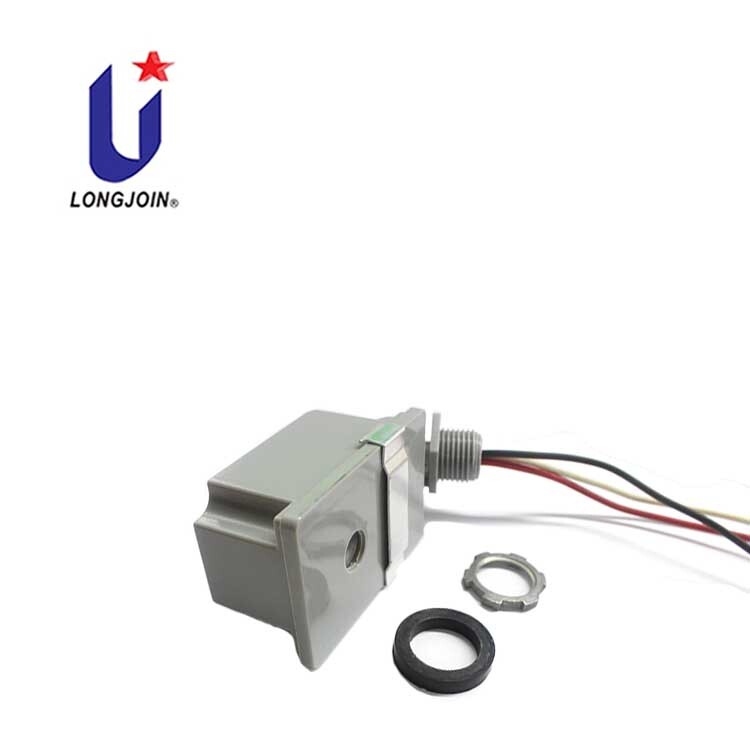

*Default accessories sets: Zinc nut x1, rubber gasket x1

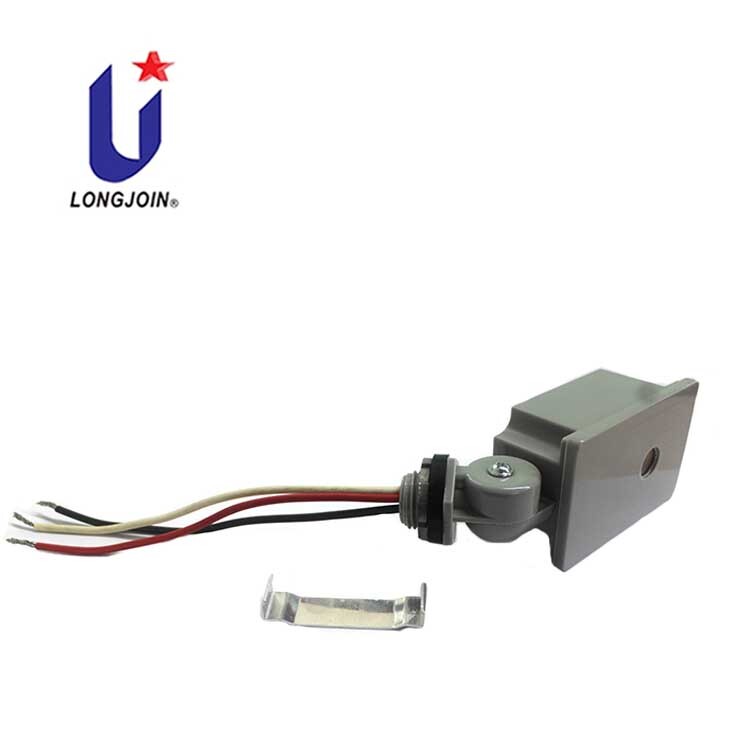

*slide slip with shading plate;
Model:
At here, we offer a range of wire controller products, including JL-103A, JL-104A, JL-404C, JL-428C, JL-423C, etc.
Applications mount type light fixture
1-exterior wall porch light, yard light, and pathway barn light;
2-Wall Mount Adjustable Dual-Head Flood Lights;
3-dusk to dawn porch light with automatic control on-off switch controller;
4-lawn light, spotlight with the photocell to decorative landscape lighting.
