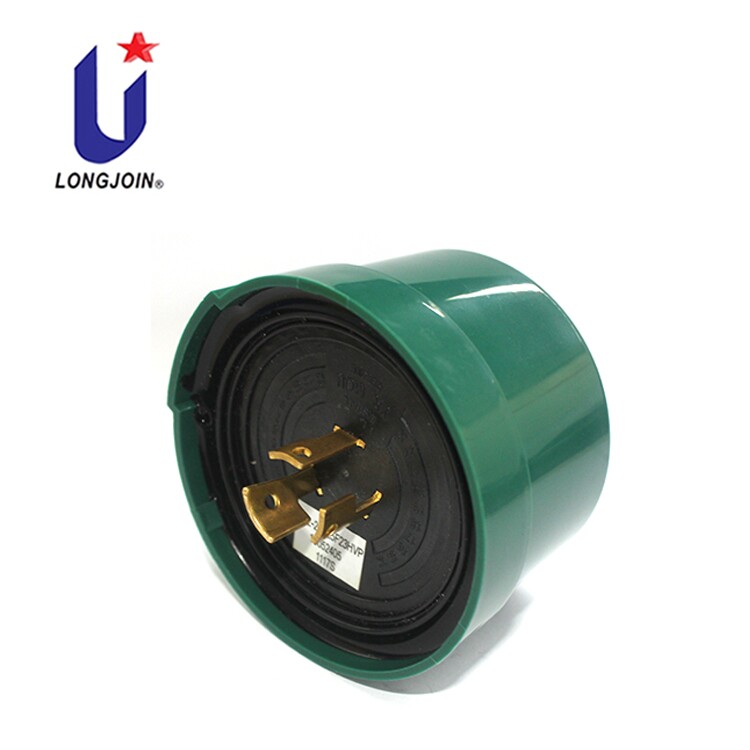

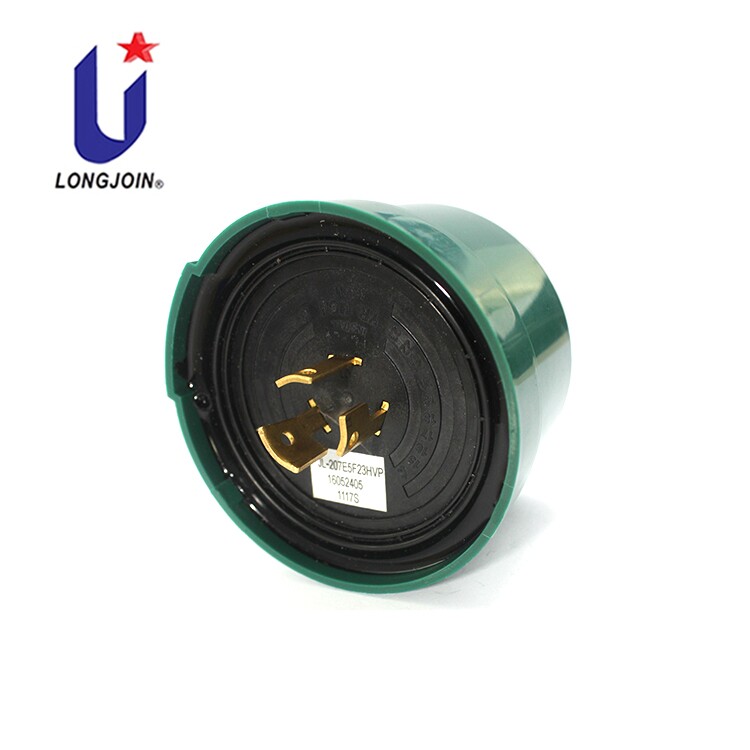

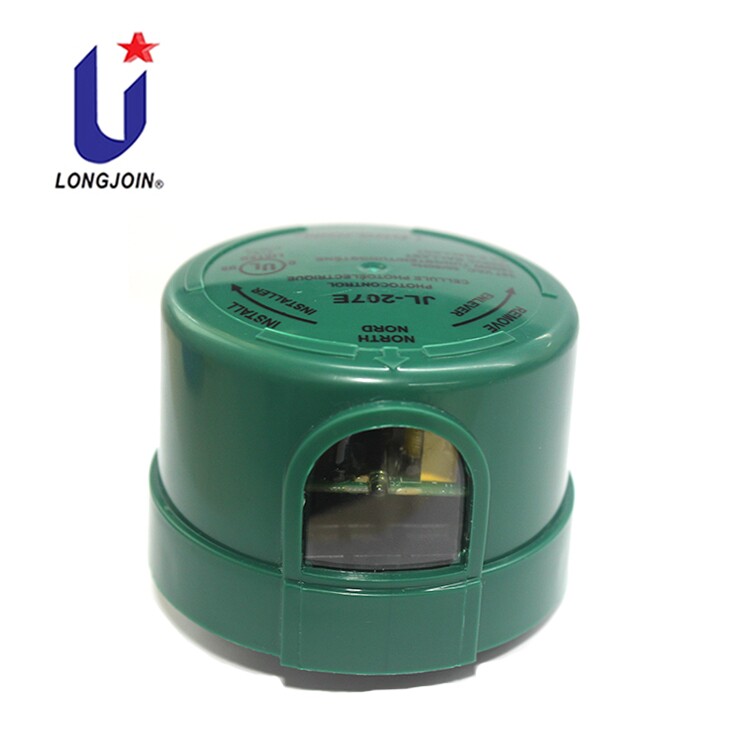

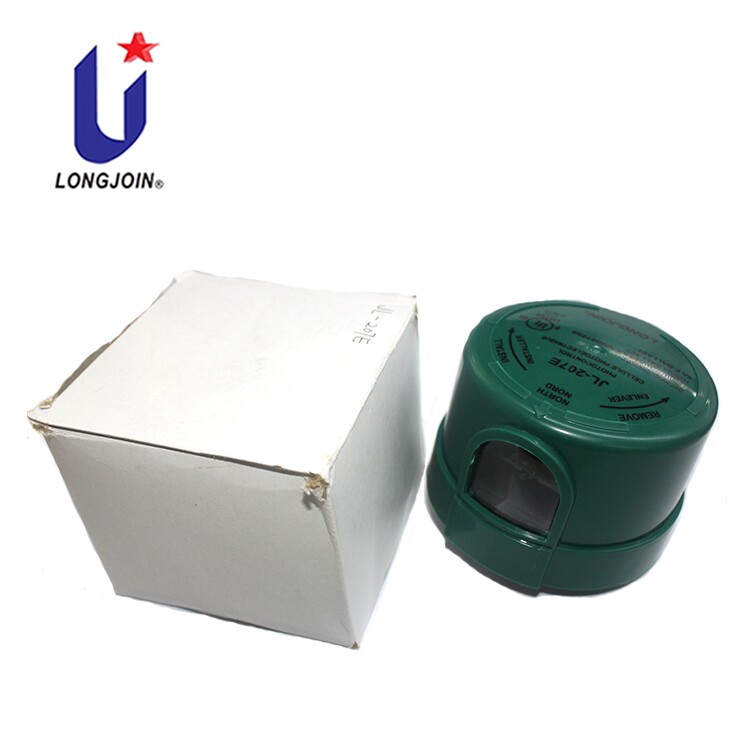

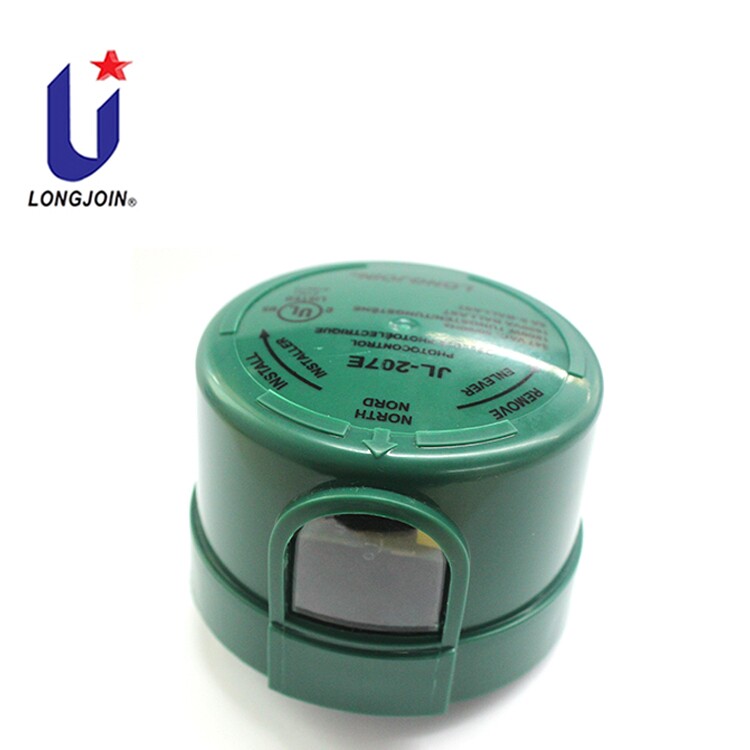

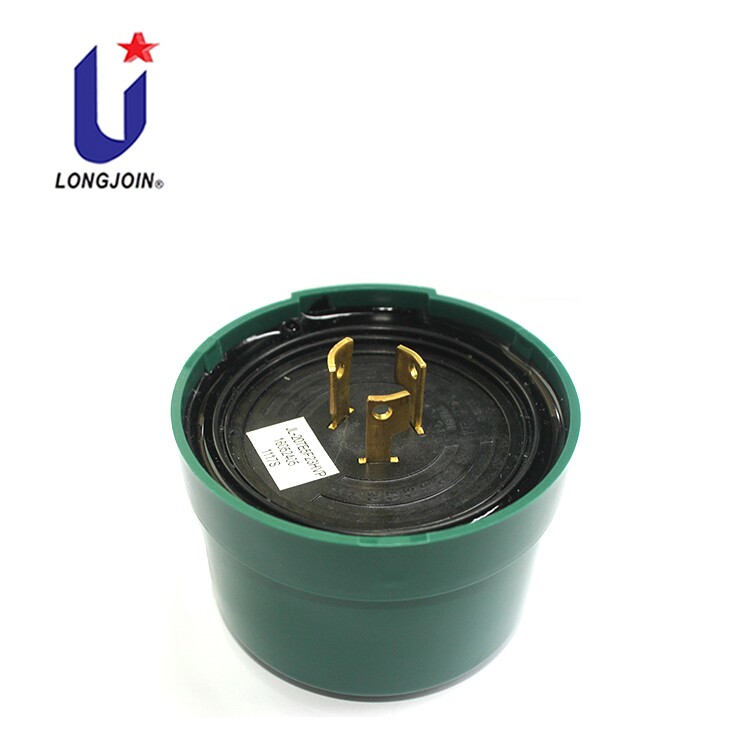

The photocontrol JL-207 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level, with a saving energy feature at dawn.

The long-life version can maintain constant and reliable characteristics. The relay can have more than 10000 working life cycles. When the double-layer protective shell is installed, it can provide a longer working life for JL-207.The HP version provides a higher Load.

*Other series wide voltage series: JL-207C(120-277VAC),JL-207F(480VAC)

*JL-207 available different mode work:Fail-On / Fail-Off

* You can choose Surge Arrester Built-in MOV Value:
-12 = MOV 110Joule / 3500Amp
-15 = MOV 235Joule / 5000A
-23 = MOV 460Joule / 10000A
-25 = MOV 546Joule / 10000A

* You can choose another color Controller cover:
-Blue, and Green, black, gray, etc
-cover material: PC+PC sandwich cove.
-light controller built-in Zero-cross Technology

* you can plan to appoint operate level parameters (lux value) to precision turn off at dawn and turn on at dusk. in addition to adjusting the lux value, so you can restart and pre-set the Turn-Off Time Delay in seconds, in order to quickly respond around environment light level.

*optional choose JL-200x or JL-240X photocontrol receptacle.
