1. Product Model: JL-116A
2. On / OFF Lux Level: 10-20Lx,30-60Lx
3. IP Rating : IP54
5. Compliant Standard: CE,ROHS,UL

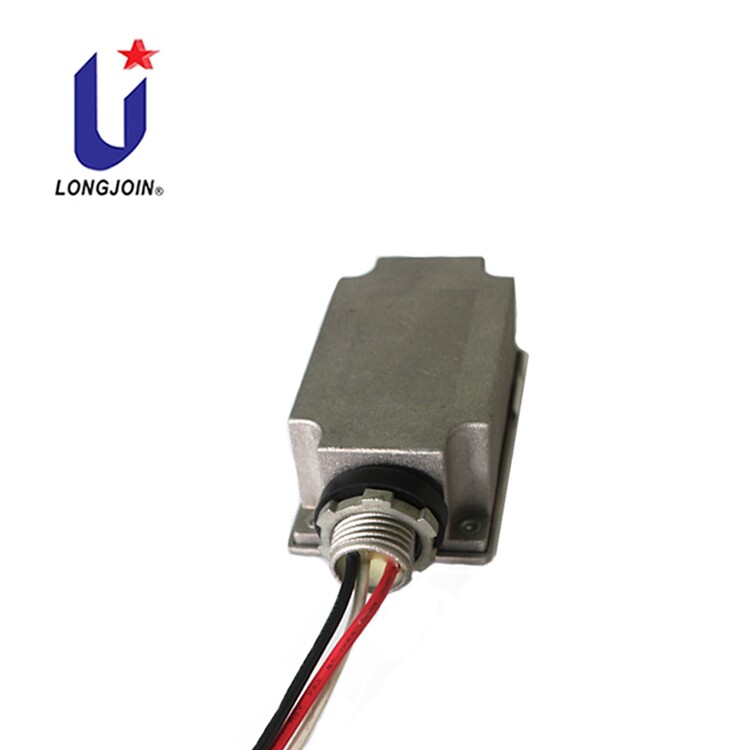

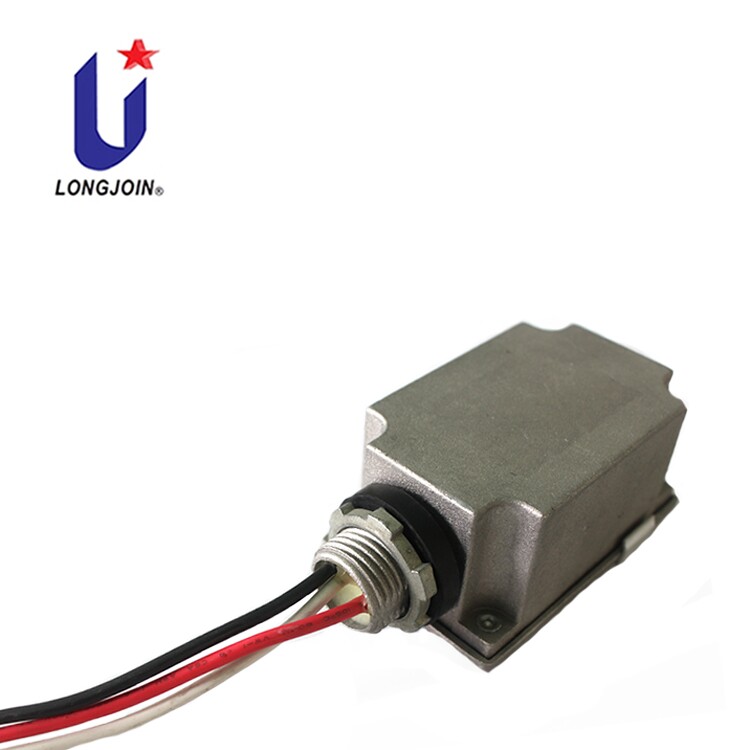

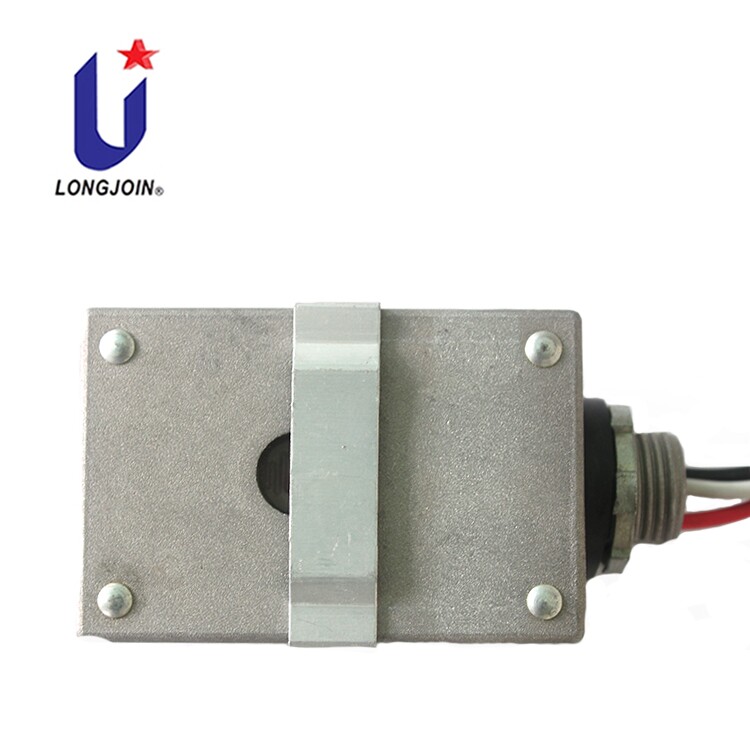

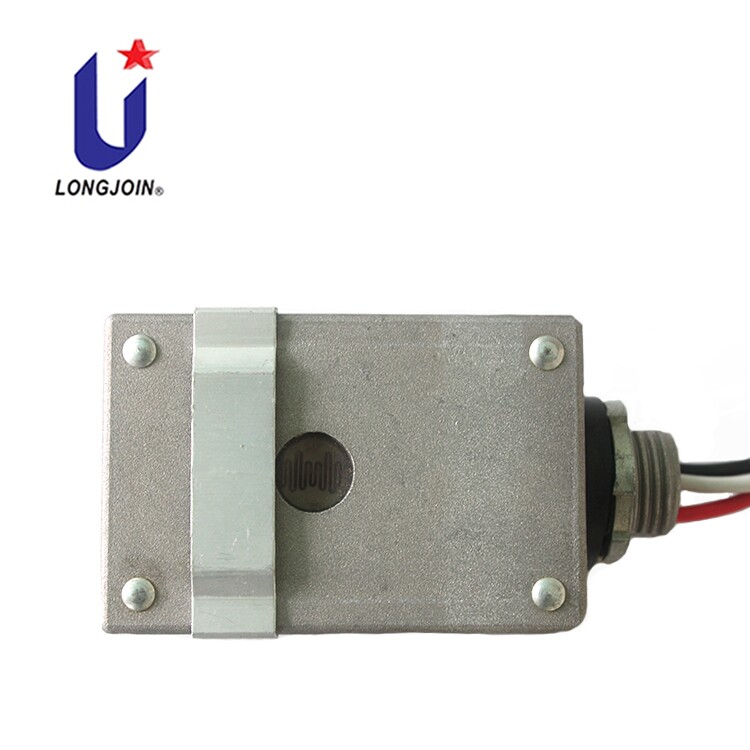

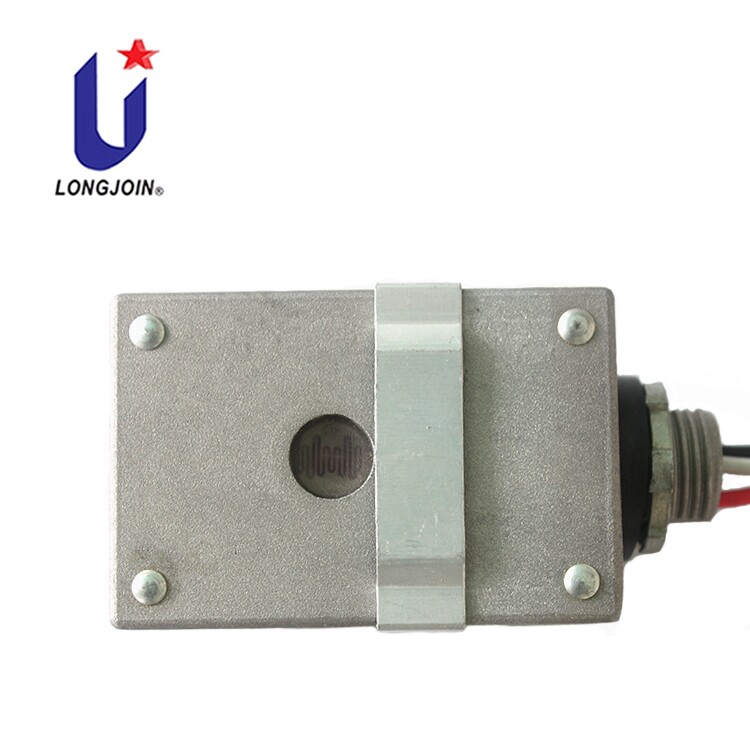

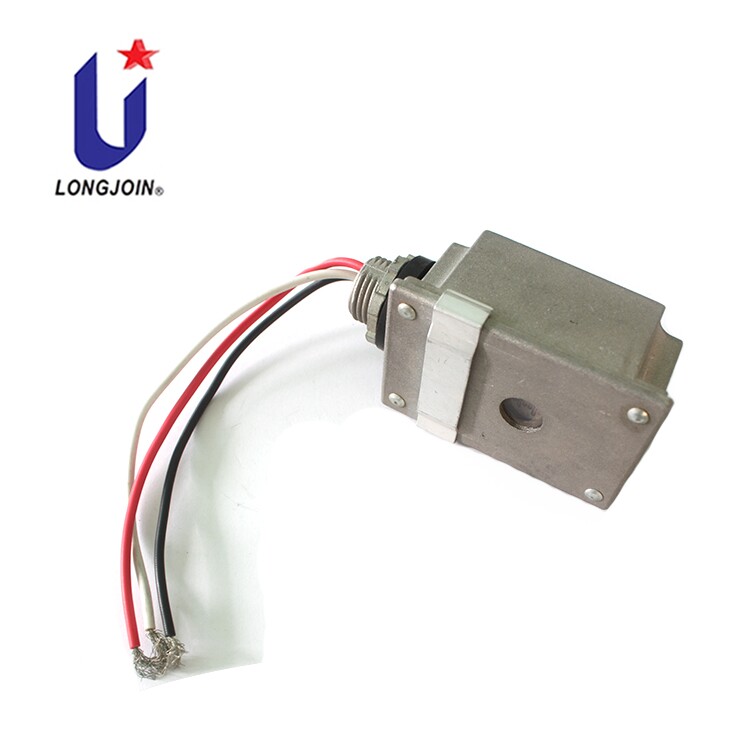

The photocontrol JL-116 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
It is convenient for direction adjustment after installation once an additional swivel is applied.
Feature
| Model No. | JL-116A（*V） | JL-116B（*V） | JL-116C（*V） | JL-116D（*V） | JL-116EE（*V） | JL-116FE（*V） |
| Rated Voltage | 120VAC | 220-240VAC | 208-277V AC | 277VAC | 347 VAC | 480 VAC |
| Rated Frequency | 50/60Hz | |||||
| Rated Loading | 2000W Tungsten、2000VA Ballast | |||||
| Power Consumption | 1.5W Max. | |||||
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | |||||
| Ambient Temperature | -40℃ ~ +70℃ | |||||
| Related Humidity | 96% | |||||
| Fail Mode | Fail-On | |||||
| Lead Wire | AWG#16,AWM1332
4”min |
|||||
| Certifications | UL,CE,RoHS | RoHS | ||||
* you can choose to differ from the voltage Parameter to keep the light fixture normally working with rated load power.
A=120VAC;
B=220-240VAC
C=208-277VAC
D=277VAC
EE=347VAC
FE=480VAC
*Lead length，6”
*Lead rating
16-16AWG, 150℃ rated
*Default accessories sets: Zinc nut x1, rubber gasket x1
*slide slip with shading plate;
Model:
At here, we offer a range of wire controller products, including JL-103A, JL-104A, JL-404C, JL-428C, JL-423C, etc.
Applications mount type light fixture
1-exterior wall porch light, yard light, and pathway barn light;
2-Wall Mount Adjustable Dual-Head Flood Lights;
3-dusk to dawn porch light with automatic control on-off switch controller;
4-lawn light, spotlight with the photocell to decorative landscape lighting.
