1. Product Model: JL-126A
2. On / OFF Lux Level: 10-20Lx, 30-60Lx
3. IP Rating : IP54
4. Rated Loading:3000W
5. Compliant Standard: CE,ROHS,UL
The JL-126 series thermal sensor controller is designed for demanding high-end swimming pool pump system environments. Compared with the JL-106 and JL-116 series, the JL-126 has significant improvements in electrical performance and structural design:

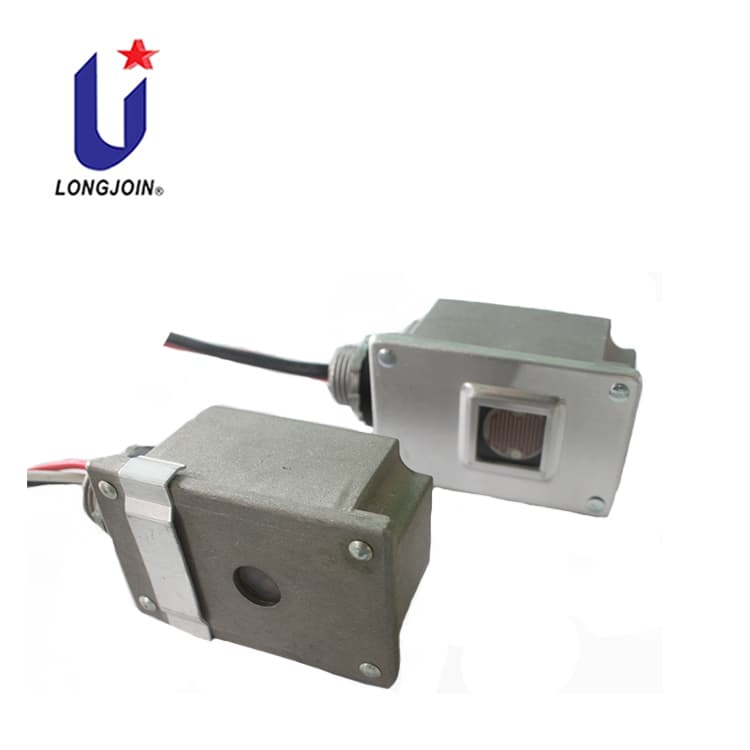

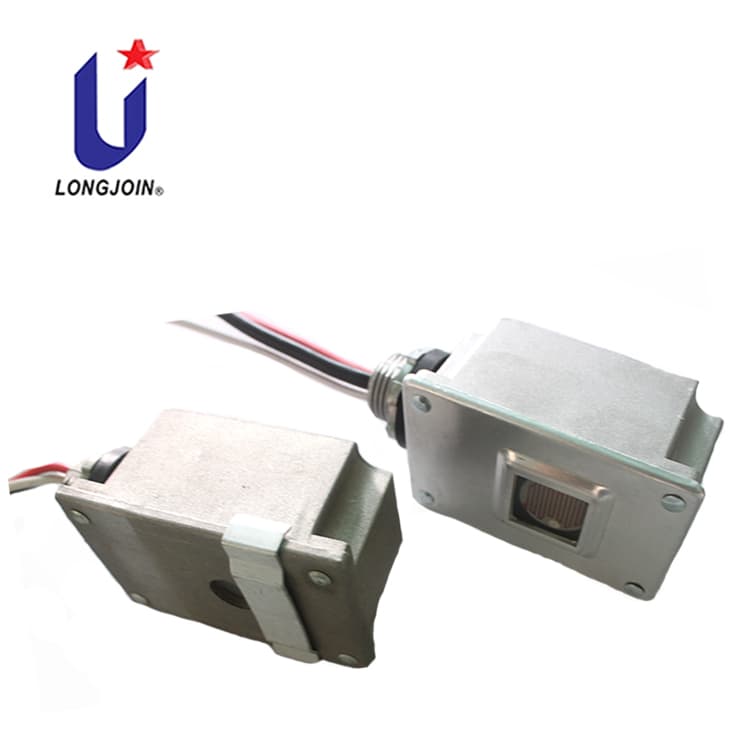

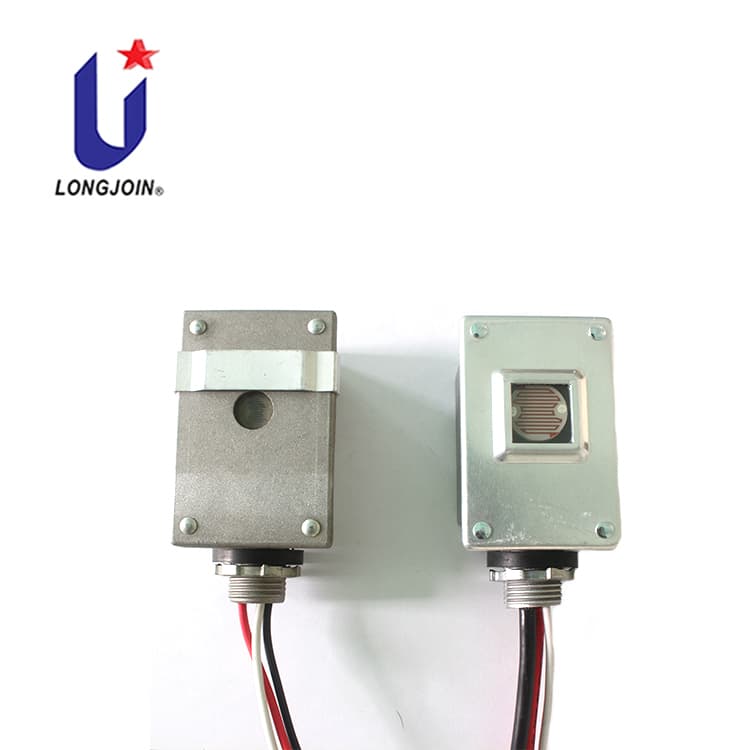

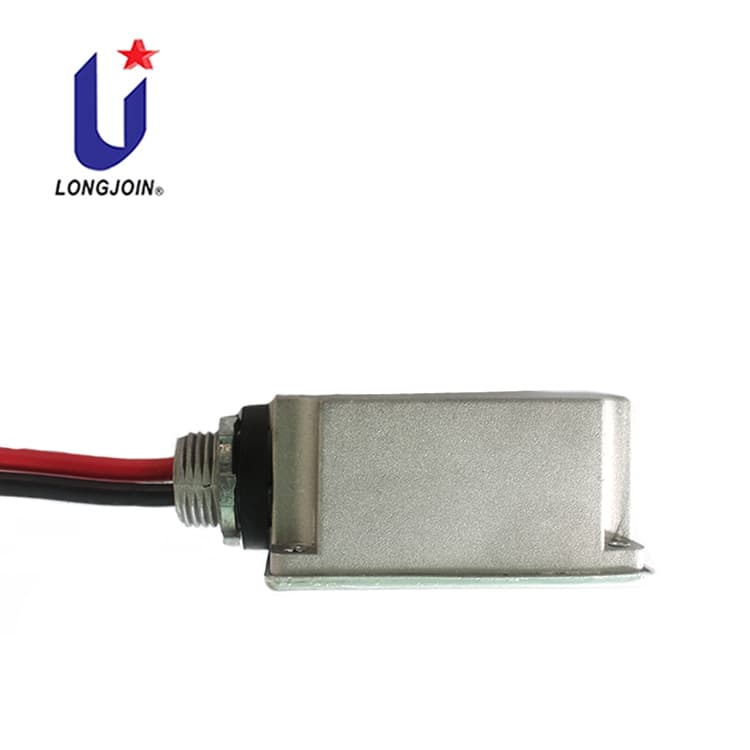

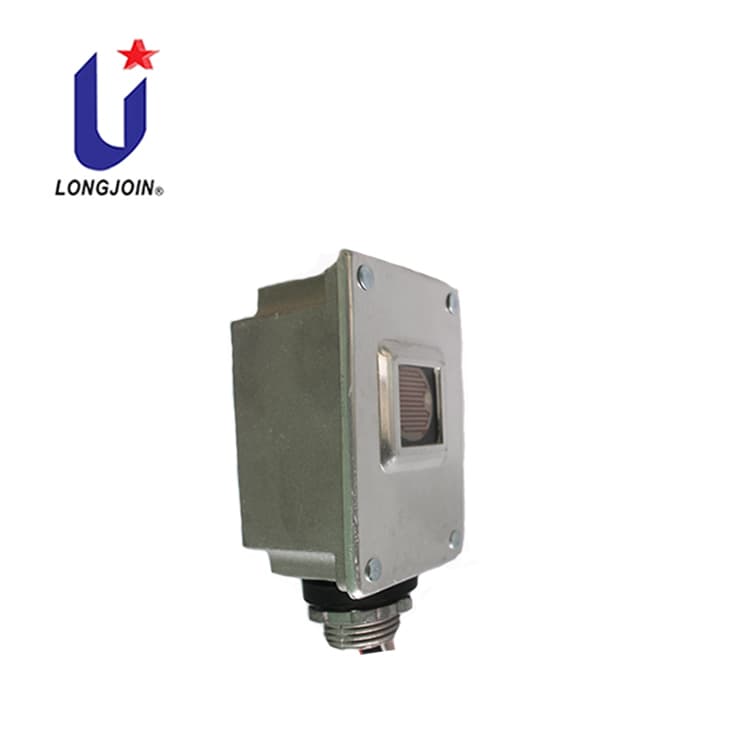

【Available Special ally material structure】The JL-126 series can be made of aircraft-grade aluminum alloy for housing, which is more corrosion-resistant than the PC material of the JL-106 and the die-cast aluminium housing of the JL-116. In addition, we will also give the 126 metal housing surface special processing, which can effectively resist the corrosive environment formed by chlorine and salt spray.
【3000w rated loading of jl126 stem photocell】The JL-126 supports up to 3000W tungsten filament lamps and 2000VA ballast loads, far exceeding the 2000W/2000VA specifications of the JL-106 and JL-116 series. This allows the JL-126 to easily control the complex lighting system of large swimming pools and meet the strict requirements of high-end private swimming pools pump control systems.
【Differentiation wire gauge of value】
- The cross-sectional area of AWG#10 (Li/lo) is about 2.5 times that of AWG#16, which greatly improves the current carrying capacity.
- The live and neutral wires of AWG#10 can safely handle high currents and reduce the risk of overheating.
- AWM1015 generally has good temperature resistance (105°C is a common rating) and is suitable for use in higher temperature environments.
Number | JL-126A(V) | JL-126B(V) | JL-126D(V) | |
Rated Voltage | 120VAC | 220-240VAC | 277VAC | |
Rated Frequency | 50/60Hz | |||
Rated Loading | 3000W Tungsten,2000VA Ballast | 3000W Tungsten,3000VA Ballast |
||
Power Consumption | 1.5W Max. | |||
Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | |||
Fail Mode | Fail on | |||

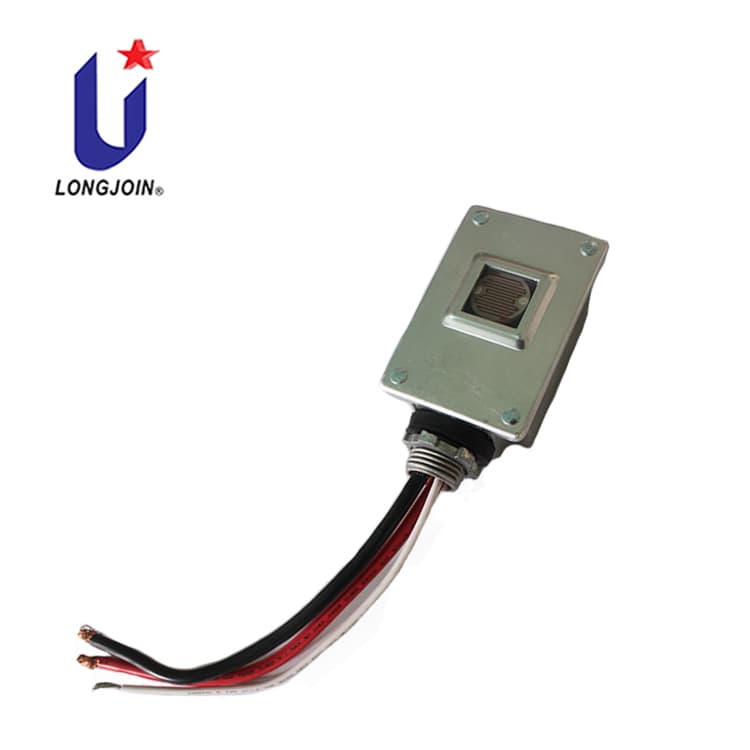

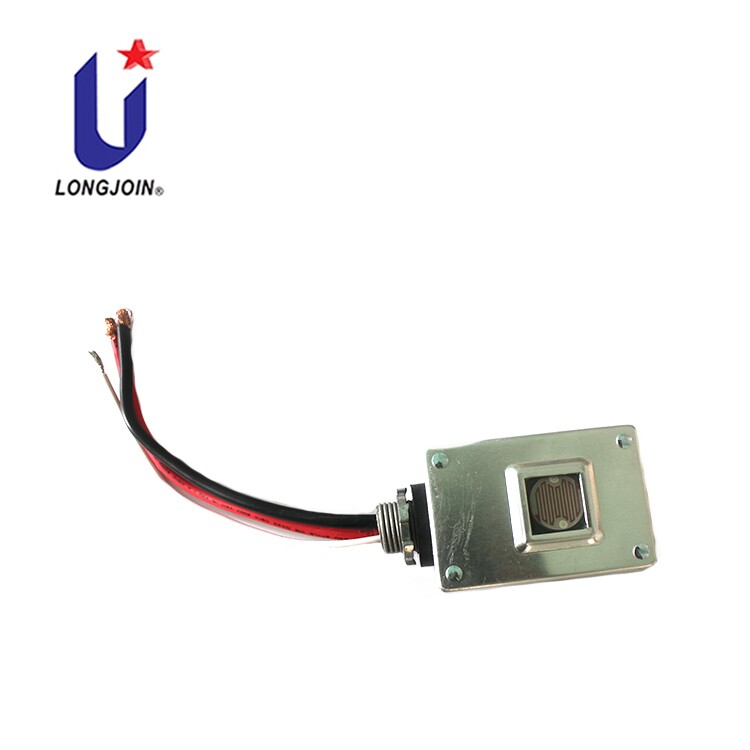

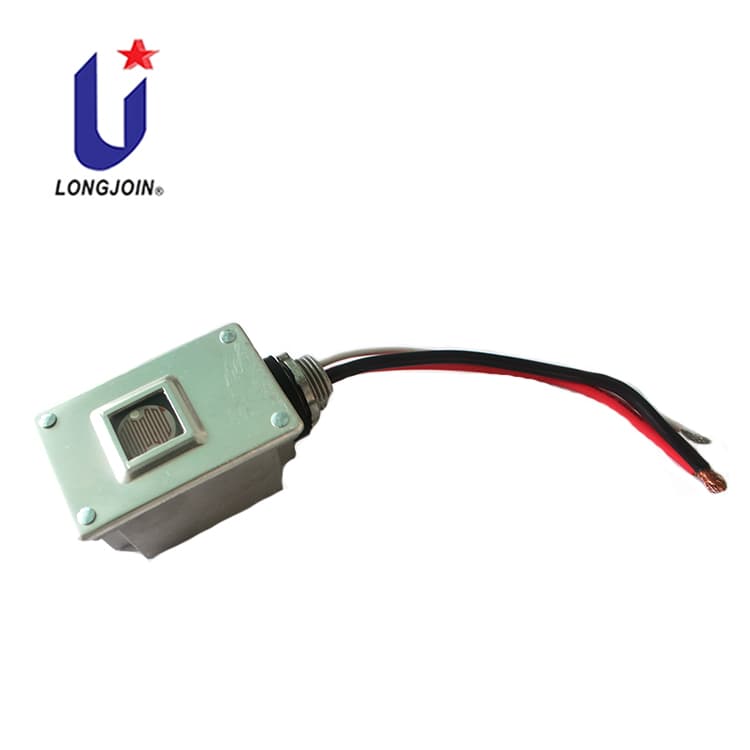

Lead Wires | N:AWG#18 AWM1015; Li/L0:AWG#10 AWM1015 6″ min |
* you can choose to differ from the voltage Parameter to keep the light fixture normally working with rated load power.
A=120VAC;
B=220-240VAC
D=277VAC
*Lead length,6”
*Lead rating
10=10AWG, 105ºC rated
V (option) =swivel added
*Default accessories sets: Zinc nut x1, rubber gasket x1
*slide slip with shading plate;
Model:
At here, we offer a range of wire controller products, including JL-103A, JL-104A, JL-404C, JL-428C, JL-423C, etc.
Applications mount type light fixture
1-exterior wall porch light, yard light, and pathway barn light;
2-Wall Mount Adjustable Dual-Head Flood Lights;
3-dusk to dawn porch light with automatic control on-off switch controller;
4-lawn light, spotlight with the photocell to decorative landscape lighting.
