1. Product Model: JL-25series
2. Rated Voltage: 120-277 VAC
3. On / OFF Lux Leve:turn-On＜100Lx, turn-Off＞100Lx
4. Time delay: 5 seconds
5. IP Rating: IP65, IP67
6. Compliant Standard: CE, ROHS, UL

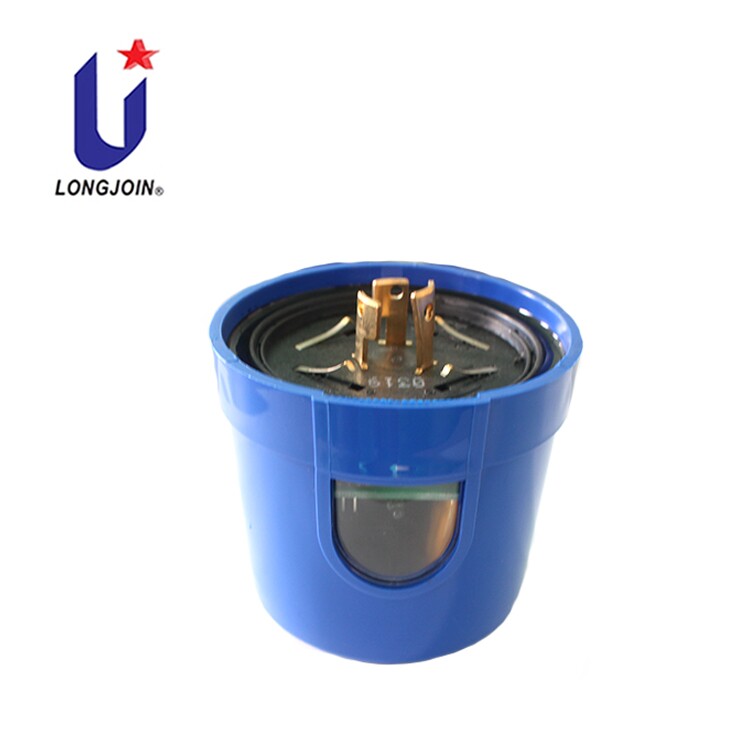

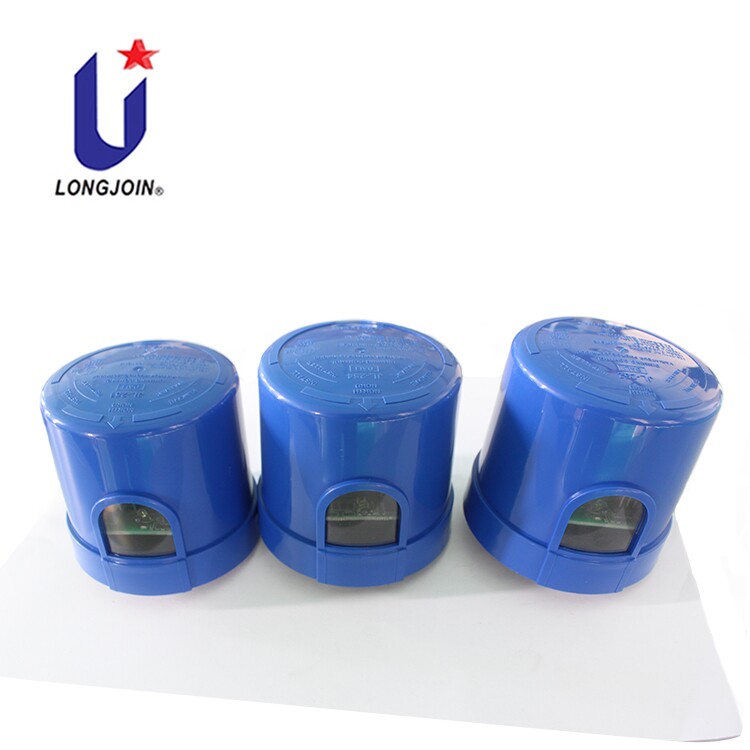

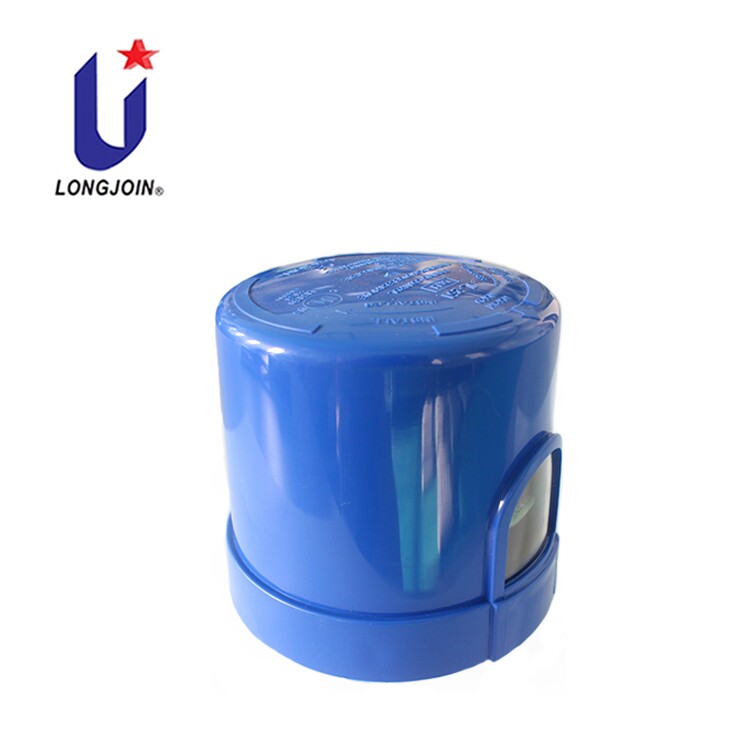

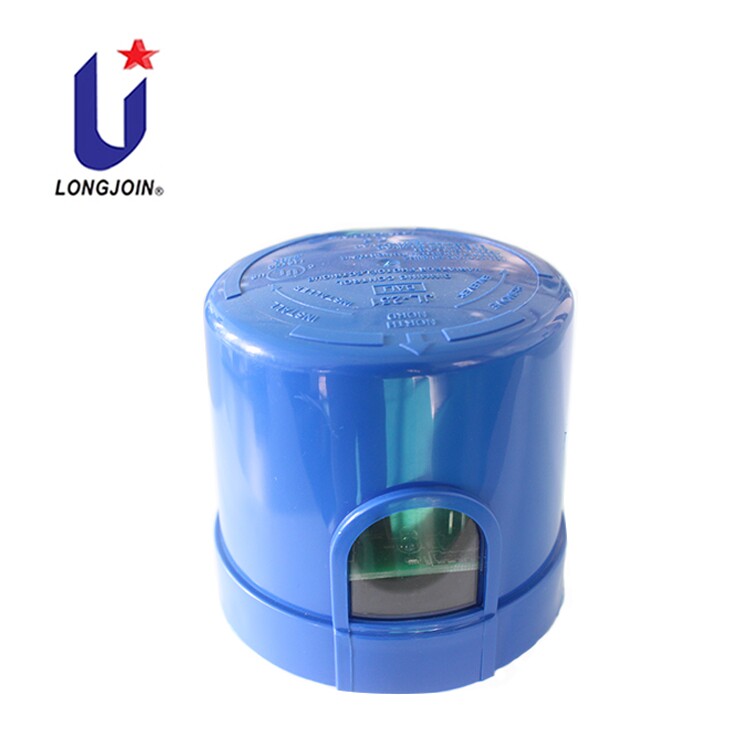

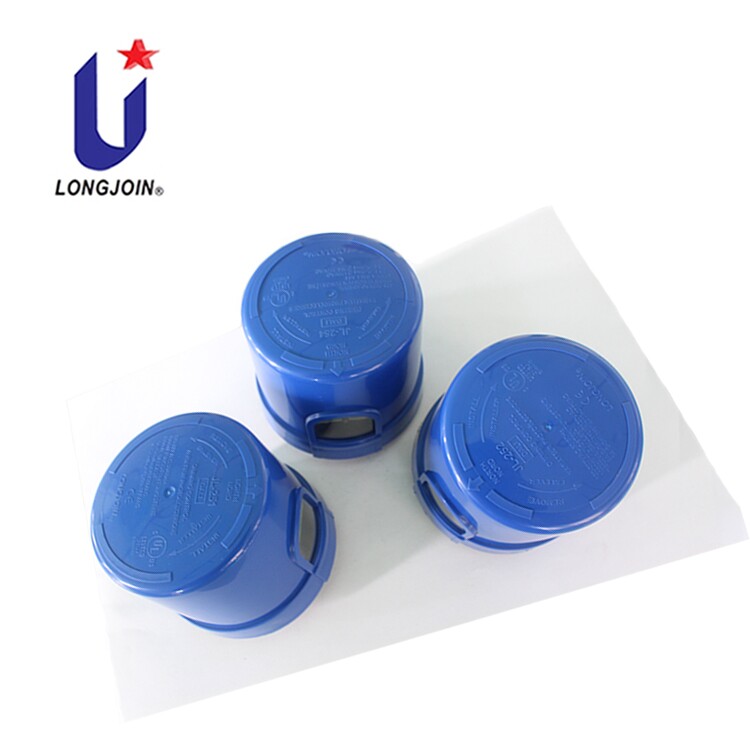

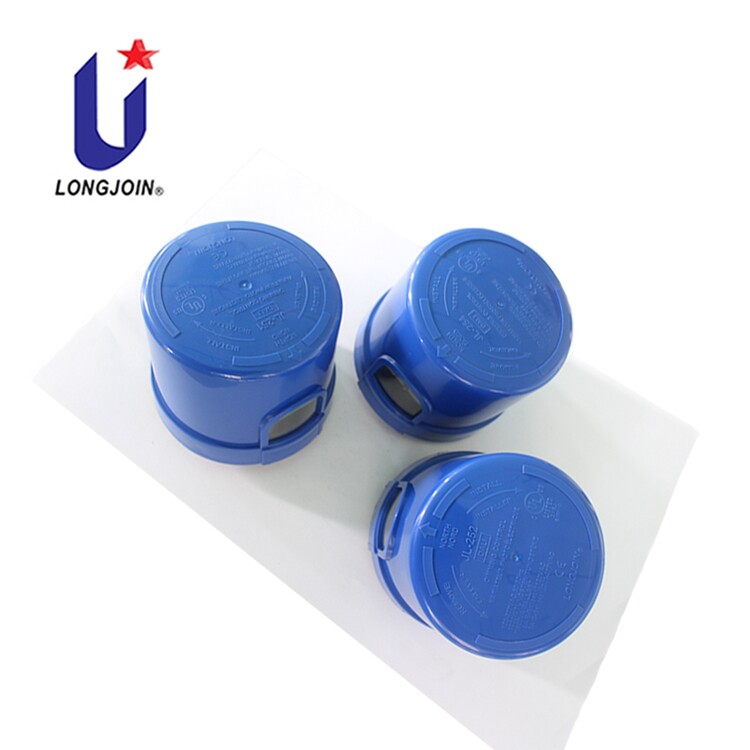

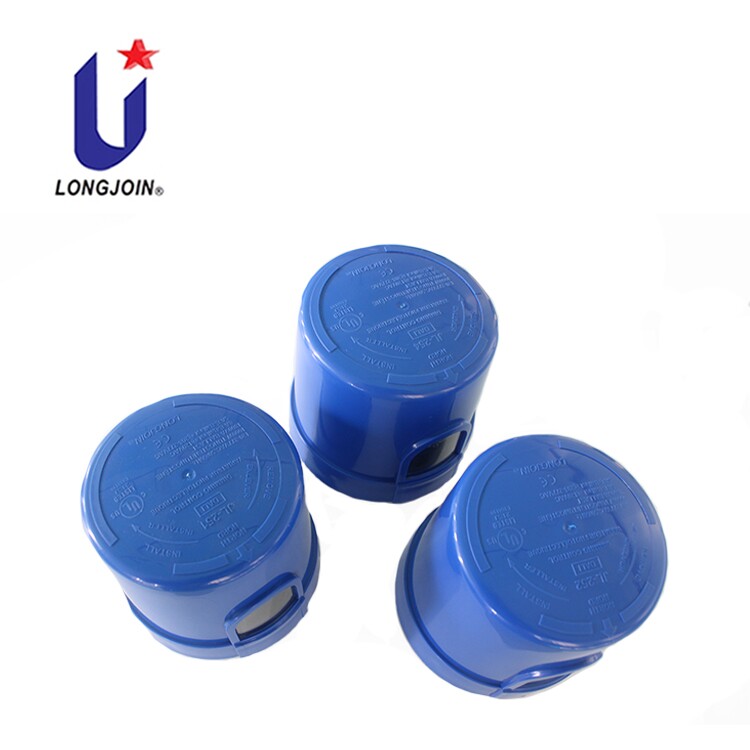

The dimming photocontrol JL-251/252/253 series is applicable to control the dimmable LED street lighting (DAli Dimming) automatically in accordance with the ambient natural lighting level.
This product is designed with microprocessor circuits with IR-filtered phototransistor.
MOV 40kA Surge Arrester Built-in to safeguard the lamp from sudden inrush of current and lightning impulses.

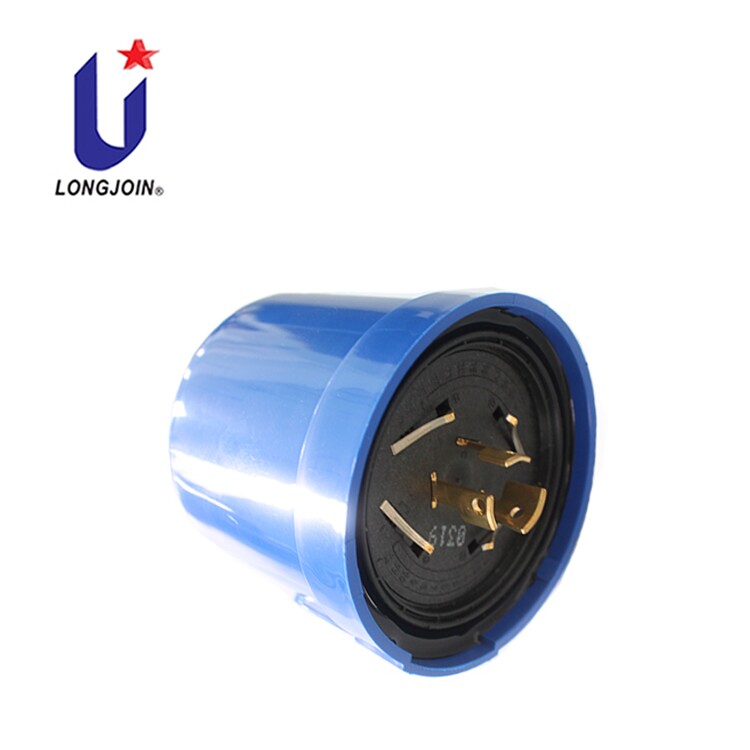

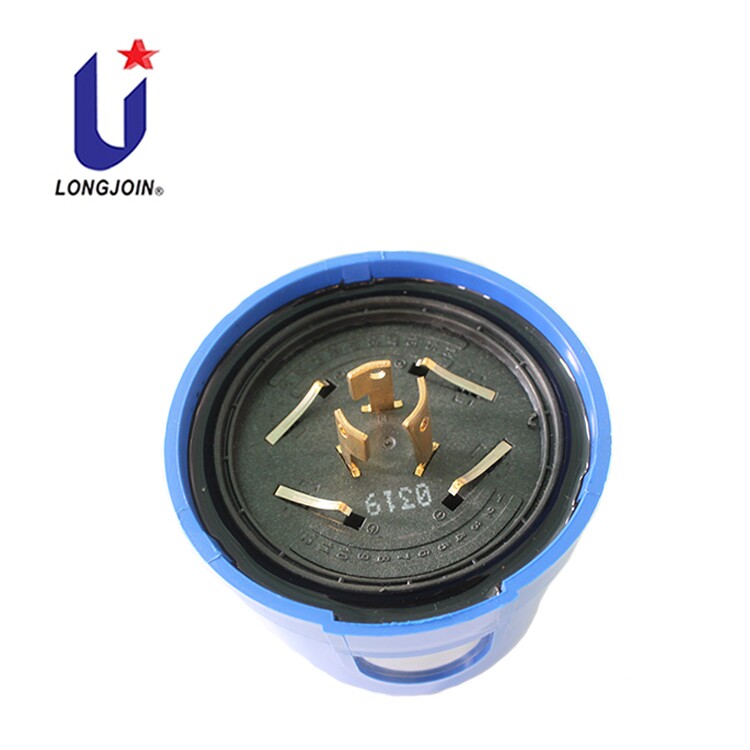

this 25series light controller receptacle 7pin is compliant to ANSI C136.41 required interface, as well as includes the UL773 Safe use certificate.
| Model No. | JL-251C | JL-252C | JL-253C |
| Rated Voltage | 120~277VAC | ||
| Rated frequency | 50/60Hz | ||
| Rated Loading | 1000W Tungsten, 1800VA Ballast,
8A e-Ballast @120VAC 5A e-Ballast @208-277VAC |
||
| Operate Levels | Turn-On＜100Lx，Turn-Off＞100Lx / per client request | ||
| Typical Time Delay | 5s | ||
| Power Consumption | 1.2W Average | ||
| Operating Temperature | -40°C ~ +70 °C | ||
| Related Humidity | 96% | ||
| Failure mode | Fail-On | ||
| Surge protection | MYL1-40K511 | ||
* You can choose Surge Arrester Built-in MOV Value:
-MYL1-40K511, MOV 40kA Surge Arrester Built-in;
* You can choose another color Controller cover:
-Blue, and Green, and you best like color as your product’s main.
-cover material, there are many types: PC+PC sandwich cove.
-Midnight Dimming (JL-252、JL-253)
-LED Decay Compensation（JL-253）
-Constant on/off Dimming(JL-251,JL-252,JL-253)
-Adjust Special Parameter(Illuminance/Delayed/Reduction Duration
Customizable) [JL-252,JL-253]
*optional choose JL-200x or JL-240X, JL-260C, JL-240FXA-14 photocontrol receptacle.
Here, we offer a variety of street light twist-lock photo controllers with different voltage options, and you can choose from a range of unique IP Waterproof Ratings. In addition to these features, we also offer gift packaging box designs and product functionalities that include sensitive lux operation levels and precision auto-switching for dusk to dawn turning on or off.
Optional Voltage:120-277VAC, 480VAC,12V,24V,48V;
IP Waterproof Rating:IP54,IP65,IP66
