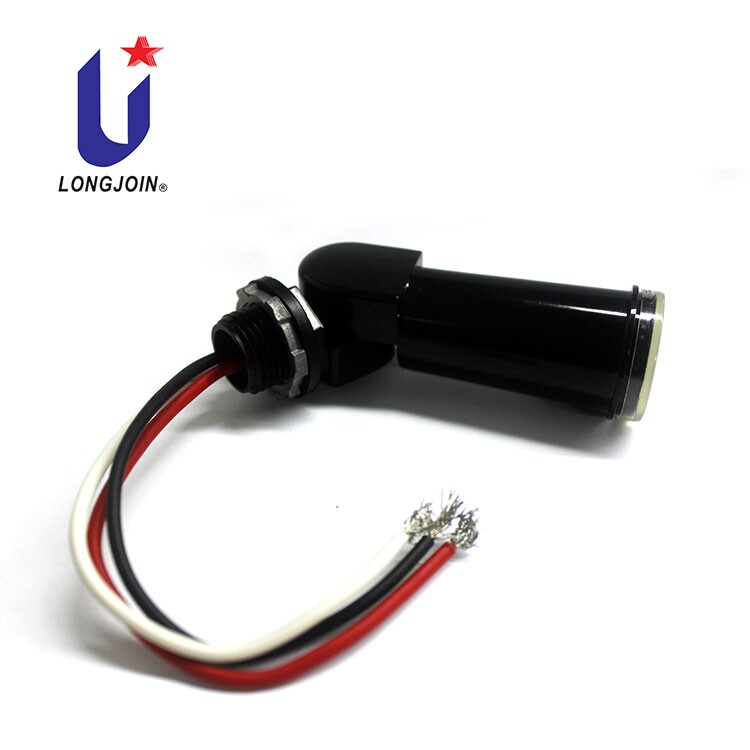

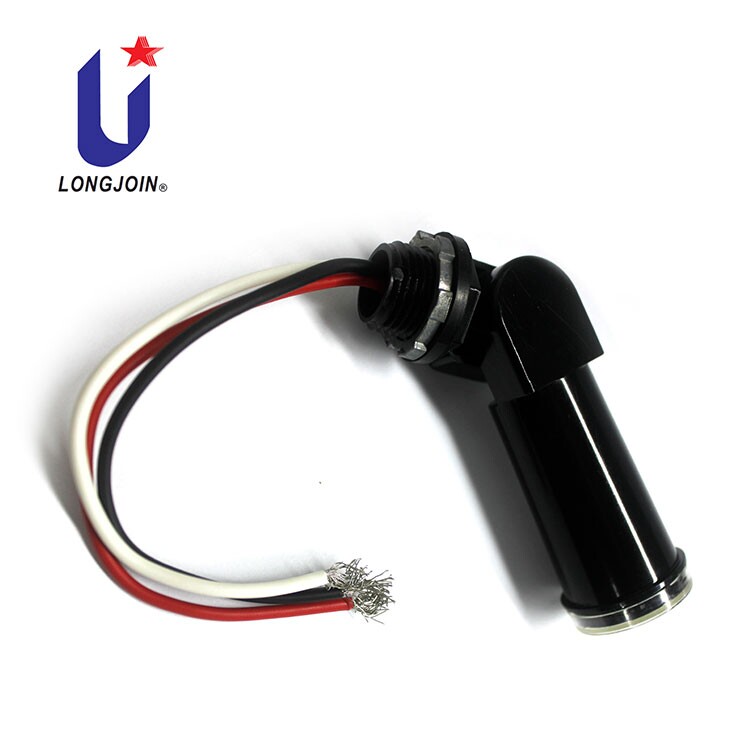

1. Product Model: JL-104A
2. Rated Voltage: 120V
3. On / OFF Lux Level: 10-20 Lx on; 30-60 Lx off
4. IP Rating: IP54
5. Compliant Standard: CE, ROHS,UL
Feaute
| Model No. | JL-104A | JL-104B | JL-104C | JL-104D | JL-104EE |
| Rated Voltage | 120VAC | 220-240VAC | 208-277VAC | 277VAC | 347VAC |
| Rated Frequency | 50/60Hz | ||||
| Rated Loading | 1800W Tungsten/1100VA Ballast | ||||
| Power Consumption | 1.5W Max. | ||||
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | ||||
| Ambient Temperature | -40℃ ~ +70℃ | ||||
| Related Humidity | 96% | ||||
| Fail Mode | Fail-On | ||||
| Lead Wire | AWG#16,AWM3321
4”min |
||||
| Certifications | UL,CE, RoHS | ||||
* you can choose to differ from the voltage Parameter to keep the light fixture normally working with rated load power.
A=120VAC;
B=220-240VAC
C=208-277VAC
D=277VAC
EE=347VAC
*Lead length，6”
* Standard Accessories: Zinc nut x1, rubber gasket x1

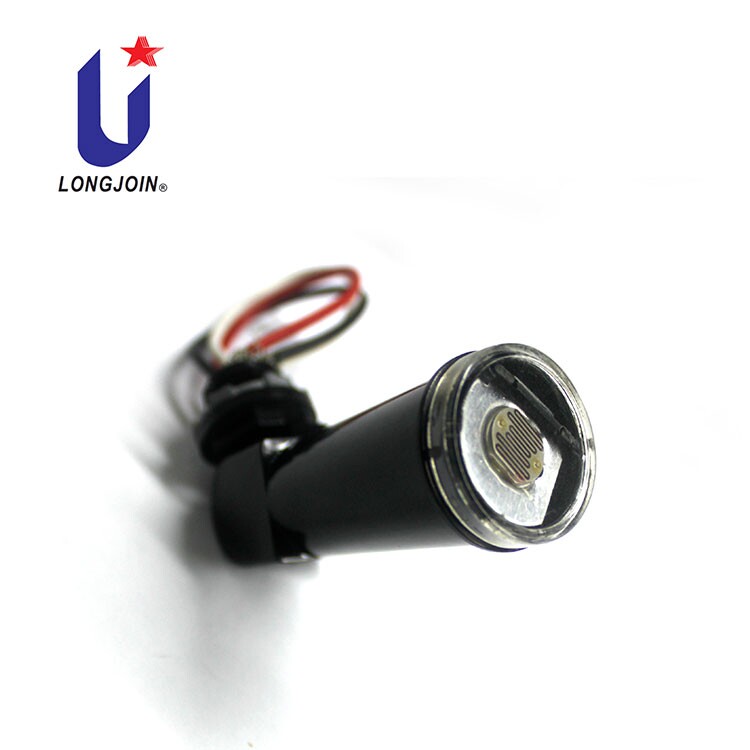

* Swivel photocell head is wrapping Black Cap so that this means keep the fixture always powered on, and sometimes you can take off the black cap to testing lamping and ballast fixture.
Model:

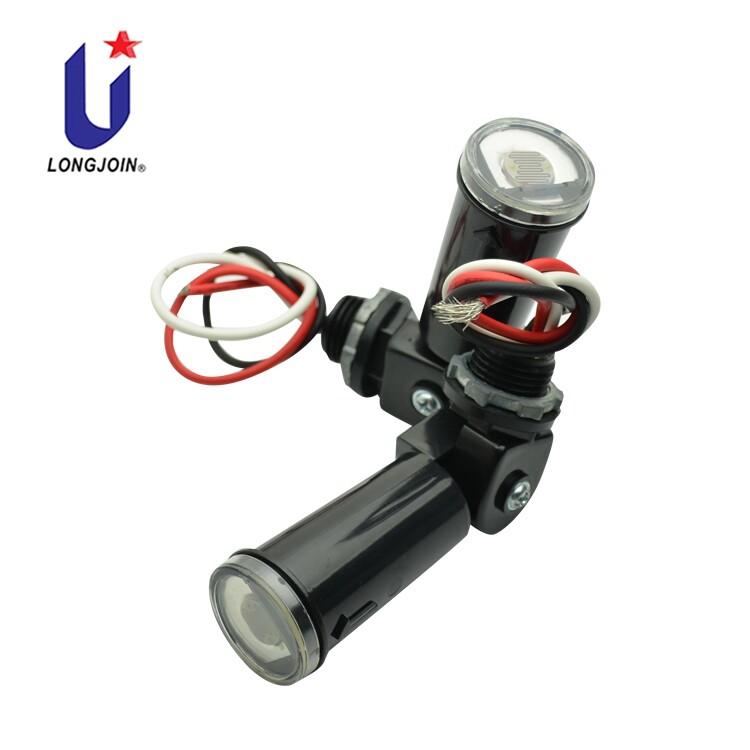

At here, we offer a range of wire controller products, including JL-103A, JL-104A, JL-404C, JL-428C, JL-423C, etc.
Applications mount type light fixture
1-exterior wall porch light, yard light, and pathway barn light;
2-Wall Mount Adjustable Dual-Head Flood Lights;
3-dusk to dawn porch light with automatic control on-off switch controller;
4-lawn light, spotlight with the photocell to decorative landscape lighting.
