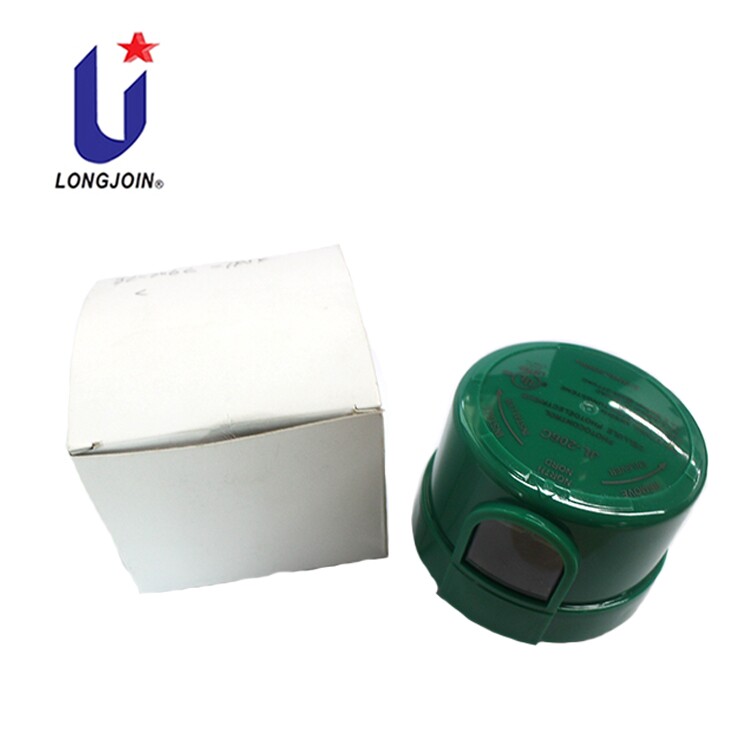

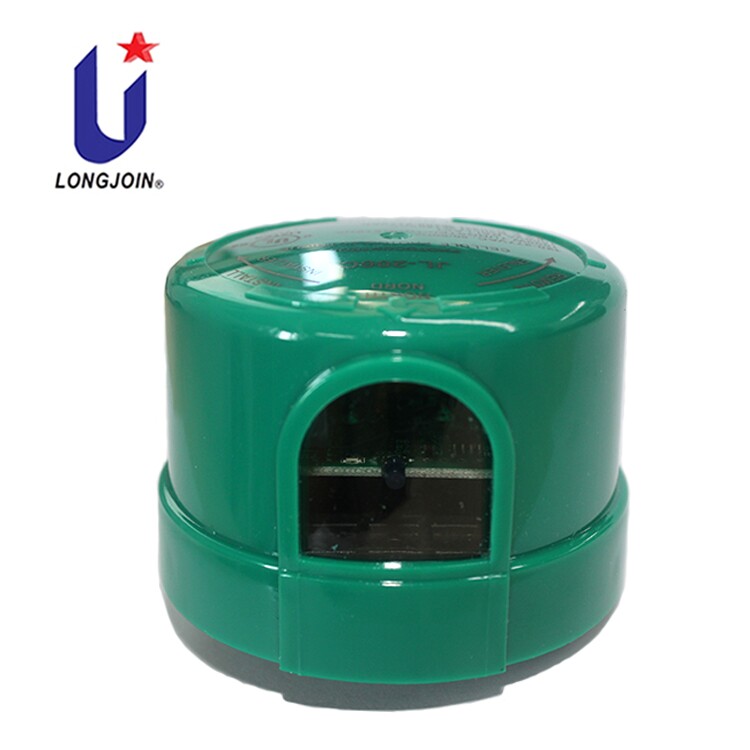

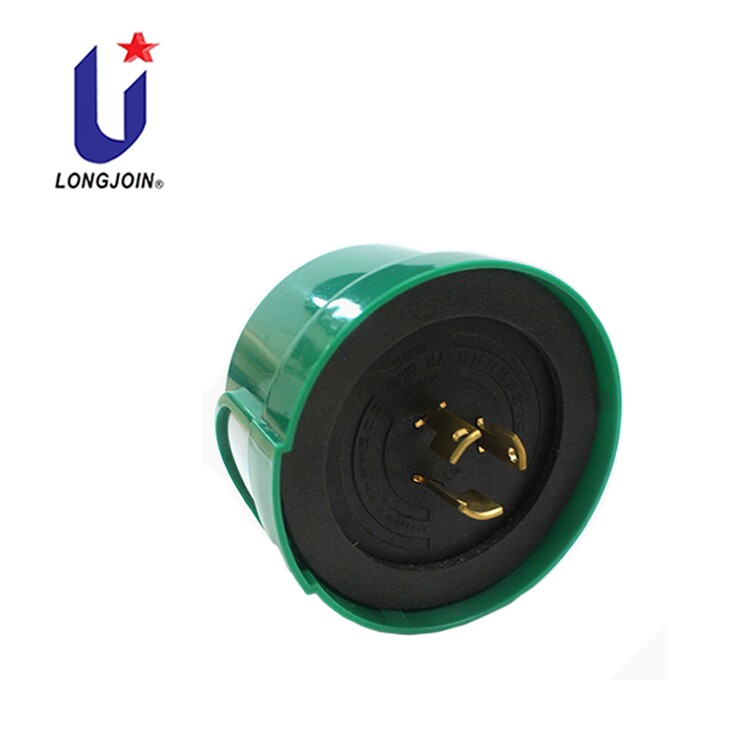

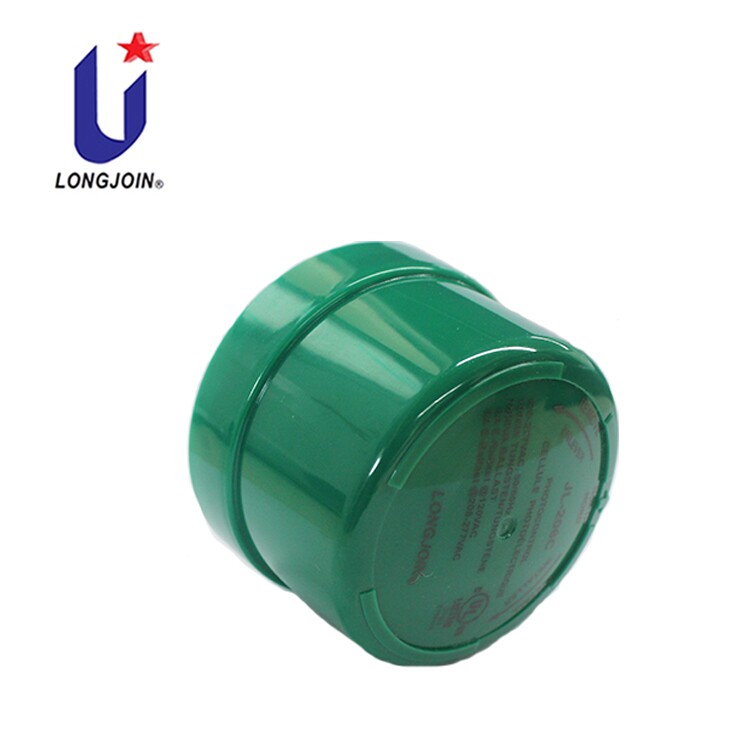

1. Product Model: JL-206C
2. Rated Voltage: 110-277 VAC
3. On / OFF Lux Level: 24 Lx on，16 Lx off
4. Built-in Mov
5. IP Rating: IP54, IP65
6. Compliant Standard: CE, ROHS, UL
The photocontrol JL-206 series is applicable to control street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level, saving energy.
This product is designed with microprocessor circuits with IR-filtered phototransistor and a surge arrester (MOV) is provided.
|
Product Model |
JL-206C |
|
Rated Voltage |
110-277VAC |
|
Applicable Voltage Range |
105-305VAC |
|
Rated Frequency |
50/60Hz |
|
Rated Loading |
1000W Tungsten, 1800VA Ballast 8A@120VAC 5Aa@208-277VAC e-Ballast |
|
Power Consumption |
0.5VA Max |
|
On/Off Level |
30-40Lx On, 10-20Lx Off |
|
Ambient Temp. |
-40℃ ~ +70℃ |
|
Related Humidity |
99% |
|
Overall Size |
84(Dia.) x 66mm |
|
Fail Mode |
C4-Fail on |
|
Cerficate |
FCC,CE,RoHS |
* You can choose Surge Arrester Built-in MOV Value:
-12 = MOV 110Joule / 3500Amp
-15 = MOV 235Joule / 5000A
-23 = MOV 460Joule / 10000A
-F40 = MOV，640J/ 40000A
-M4K = MOV，4KV Surge
* You can choose another color Controller cover:
-Blue, and Green, and you best like color as your product’s main.
-cover material, there are many types: PC+PC sandwich cove.
-Long-Life with Zero-cross Technilogy
*optional choose JL-200x or JL-240X photocontrol receptacle.
Here, we offer a variety of street light twist-lock photo controllers with different voltage options, and you can choose from a range of unique IP Waterproof Ratings. In addition to these features, we also offer gift packaging box designs and product functionalities that include sensitive lux operation levels and precision auto-switching for dusk to dawn turning on or off.
Optional Voltage:120-277VAC, 480VAC,12V,24V,48V;
IP Waterproof Rating:IP54,IP65,IP66
