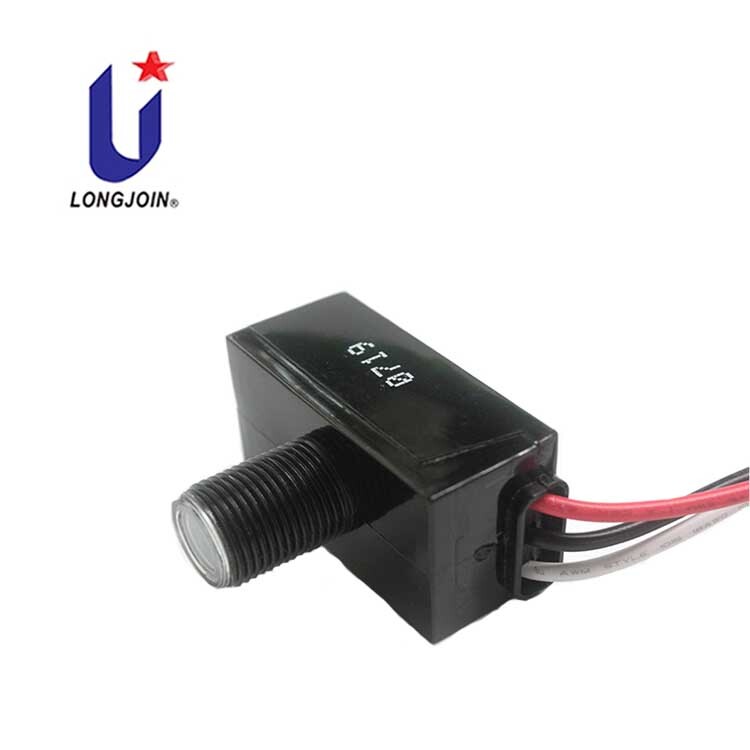

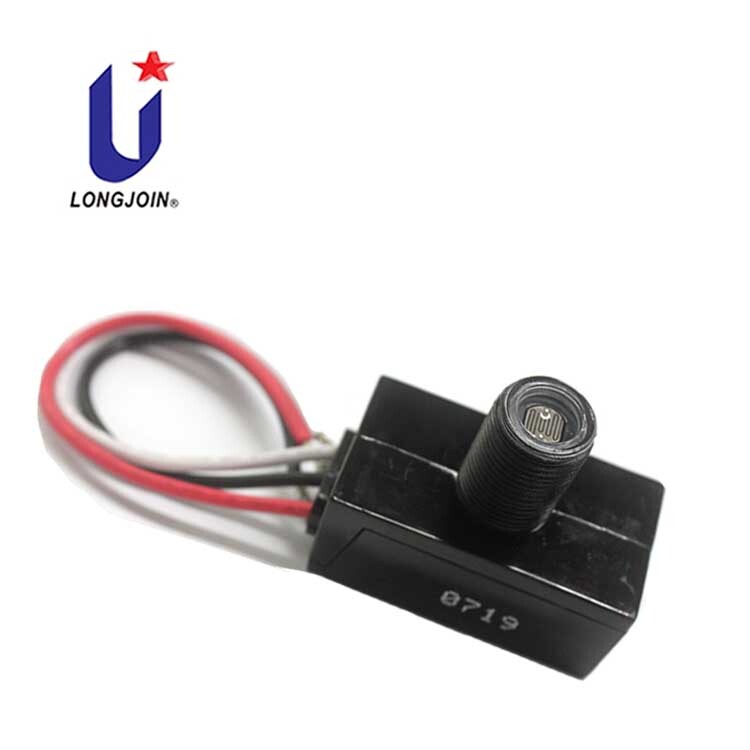

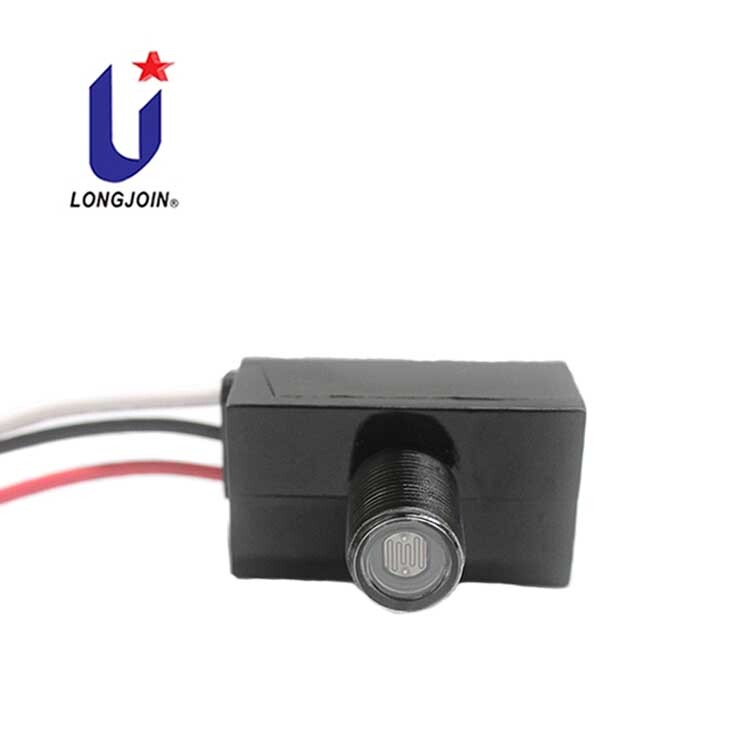

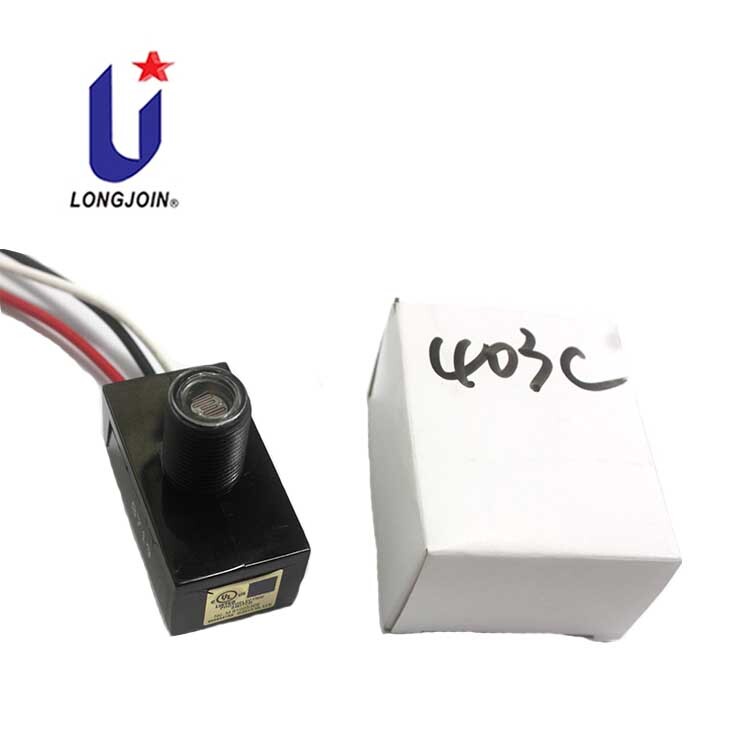

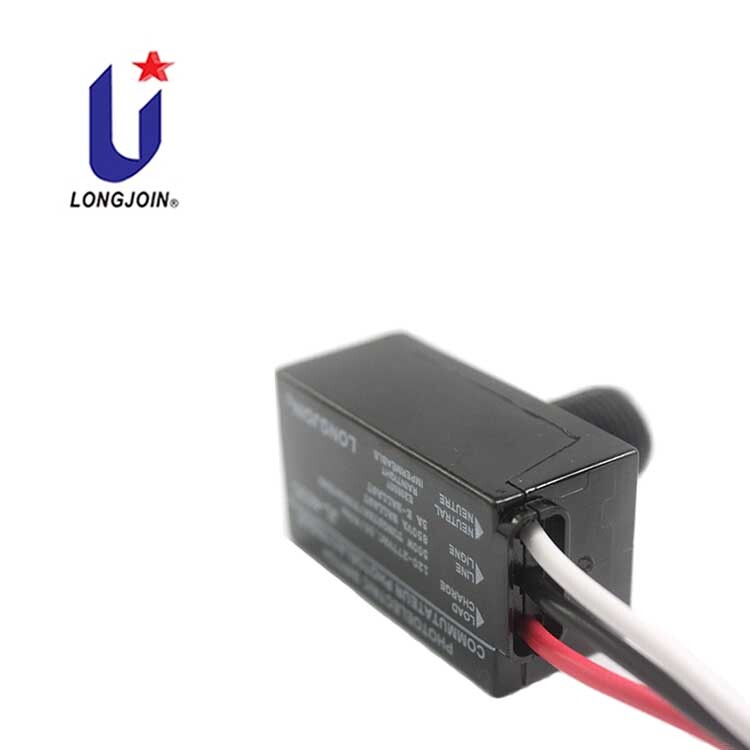

1. Product Model: JL-403C
2. Rated Voltage: 120-277 VAC
3. On / OFF Lux Level: 6 Lx on; 50 Lx off
4. IP Rating: IP54
5. Compliant Standard: CE, ROHS, UL
The photoelectric switch JL-403 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.Feature
|
Product Model |
JL-403C |
|
Rated Voltage |
120-277C |
|
Rated Frequency |
50-60Hz |
| Rated Loading |
500W Tungsten 850V Ballast 5A-E Ballast |
|
Power Consumption |
2W |
|
Operate level |
10-20Lx on, 30-80Lx off |
|
Overall Dimension |
54.5(L) x 29(W) x 44(H)mm |
|
Leads length |
180mm or Customer request (AWG#18) |
|
LED Loading |
2.5A @240V/ 4A @120V |
*you can different function mode Button photocontrol:
– 18=18 AWG, 105ºC; 18G=18AWG, 150℃
– Surge Arrester Built-in Available: JL-423C,JL-423CM (M-MOV23, 460Joule / 10000Amp )
– additionally, you can adjust lux value ranges to change different strength light sensitivity.
*optional button photocell 120V accessories:
-single/ double flat rubber gasket;
-single/ double flat lock-nut;
*optional cap
-black shading cap
-transparent rain cap
-none.
-Wall Plate, aluminum panel(optional)
-UL holographic label(optional)
-IP Rating: IP54,IP65
special tips:
Remark: European wiring color code with RoHS mark (UKCA)
Model:
At here, we offer a range of wire controller products, including JL-103A, JL-104A, JL-404C, JL-428C, JL-423C, etc.
Applications mount type light fixture
1-exterior wall porch light, yard light, and pathway barn light;
2-Wall Mount Adjustable Dual-Head Flood Lights;
3-dusk to dawn porch light with automatic control on-off switch controller;
4-lawn light, spotlight with the photocell to decorative landscape lighting.
