1. Product Model: JL-401C
2. Rated Voltage: 120-277 VAC
3. On / OFF Lux Level: 10-20 Lx on; 25-35 Lx off
4. IP Rating: IP54
5. Compliant Standard: CE, ROHS, UL
The JL-401 series photocontroller is applicable to control the garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
Feature
| Model No. | JL-401C | JL-401CR |
| Rated Voltage | 120-277VAC | |
| Rated Frequency | 50/60Hz | |
| Sensor Type | CdS photocell | |
| Rated Loading | 6A TUNGSTEN，6A Ballast | |
| Power Consumption | 5W Max. | |
| Operate Levels | 10~20Lx Turn-On / 25~35Lx Turn-Off | |
| Ambient Temperature | -40℃ ~ +70℃ | |
| Related Humidity | 96% | |
| Leads Length | AWG#18 AWM1015 | |
| Surge Protection | 40J/1750A (MOV) | |
| Certifications | CE, UL, RoHS | |
Optional parameter lists:
* lead length sieze:
-12=12”
*sensing head type
-split type controller:JL-401CR
-integrated on the controller body: JL-401C
*waterproof rating
-IP65
-IP54
**if you have a good idea or redesign the wiring way, we can provide retrofit connect wire road service for the 3-way wire change for 2-way or 5-way.
* Based on the mini-size sensing head controller, you can find other series controllers whose parameter lists will appeal to you.
* mini button photocell parameter listes
-JL-103A(120V)
-JL-423c(120-277VAC)
-JL-403C(120-277VAC)
-JL-412C(R)(120-277VAC)
We offer an electronic wire-in controller range, which is divided by split type and integrated type sensor. it is ideal for outdoor display ad shows, traffic lights, neon light signs, and LED stop signs in warn lighting and display advertisement lighting.
CDS sensing parts, JL-401C, JL-401CR
phototransistor sensing parts: JL-411-12D, JL-411-24D
warning lamp lighting
traffic lamp with photocell
Hotel Symbol Light
commercial advertisement bill board project
sign light box with photocell
ISO9001:2015 long-join
CE photocontrol
UL photocontrol
C-UL photocontroller
RoHS photocontrol
long-join photocell manufacturer
longjoin factory outdoor shooting

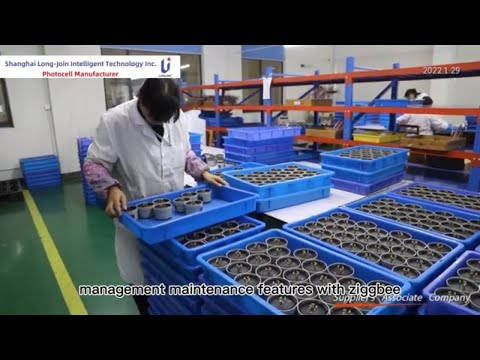

Lighting Controller and Component Production Workshop Real Shot
