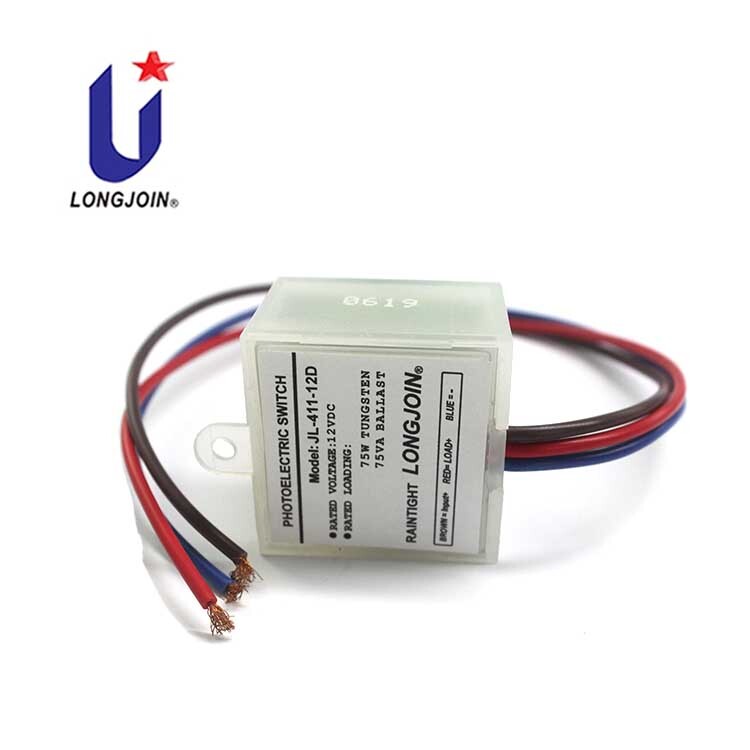

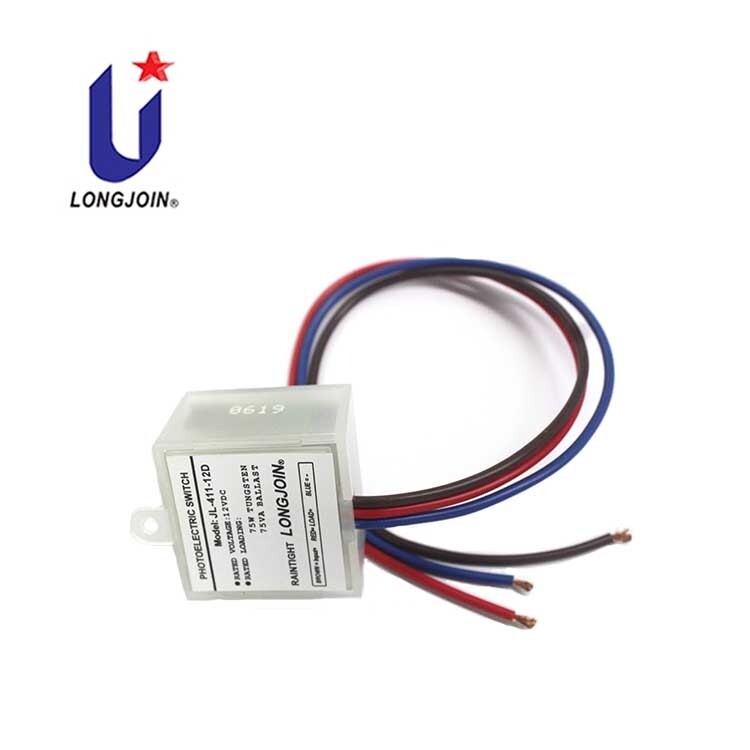

1. Product Model : JL-411R-12D
2. Rated Voltage :12VDC
3. On / OFF Lux Level : 5-15 Lx on 20-80Lx off
4. IP Rating : IP54

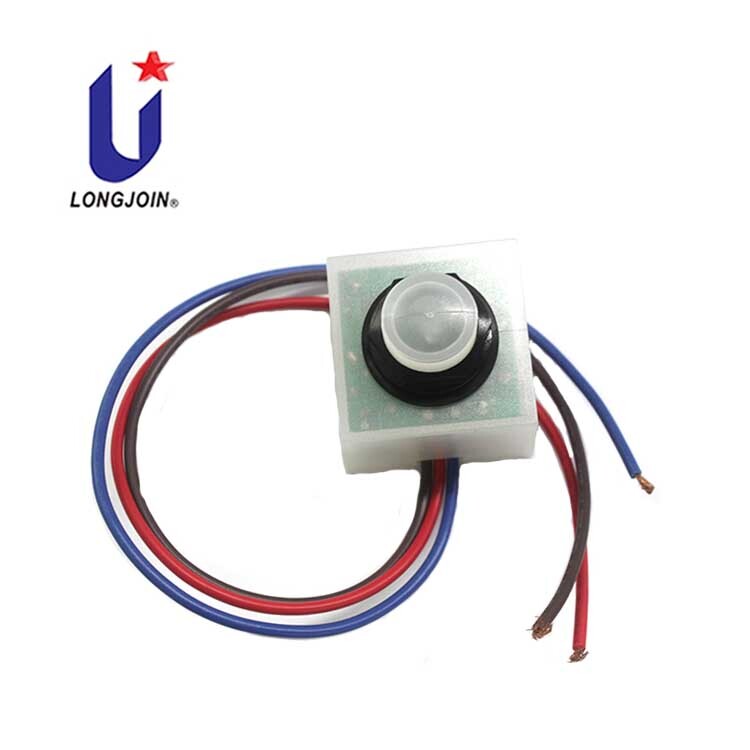

The photocontrol JL-411(R) is applicable to control the DC rated lightings automatically in accordance with the ambient lighting level. Its R version provides a separated sensor assembly.
Feature
| Model No. | JL-411(R)-12D | JL-411(R)-24D |
| Rated Voltage | 12VDC | 24VDC |
| Sensor Type | phototransistor | |
| Rated Loading | 75W | |
| Power Consumption | 1W Max. | |
| On-off Levels | 5~15Lx Turn-On / 20~80Lx Turn-Off | |
| Ambient Temperature | -40℃ ~ +70℃ | |
| Related Humidity | 96% | |
| Certifications | RoHS | |
Optional parameter lists:
* lead length sieze:
-12=12”
-available customize lead length
*sensing head type

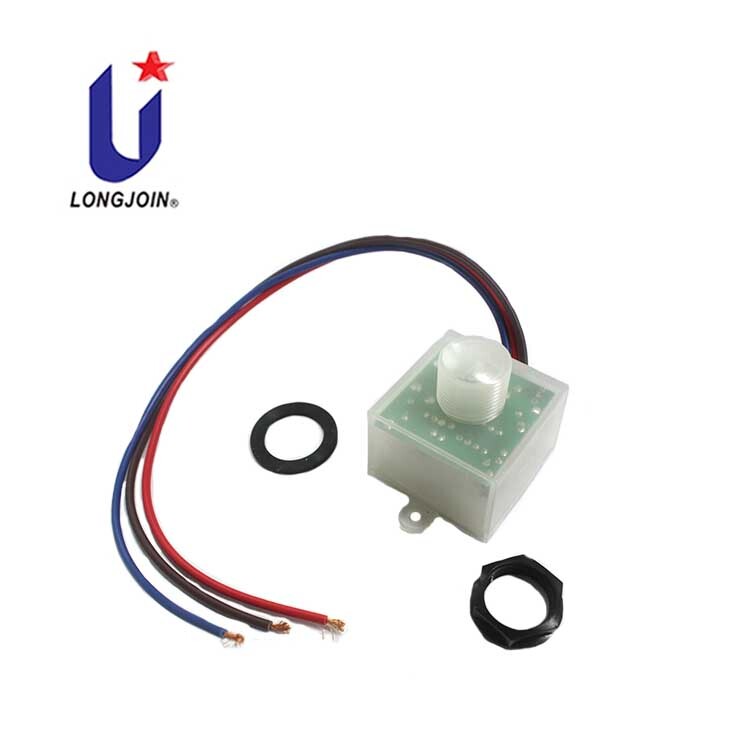

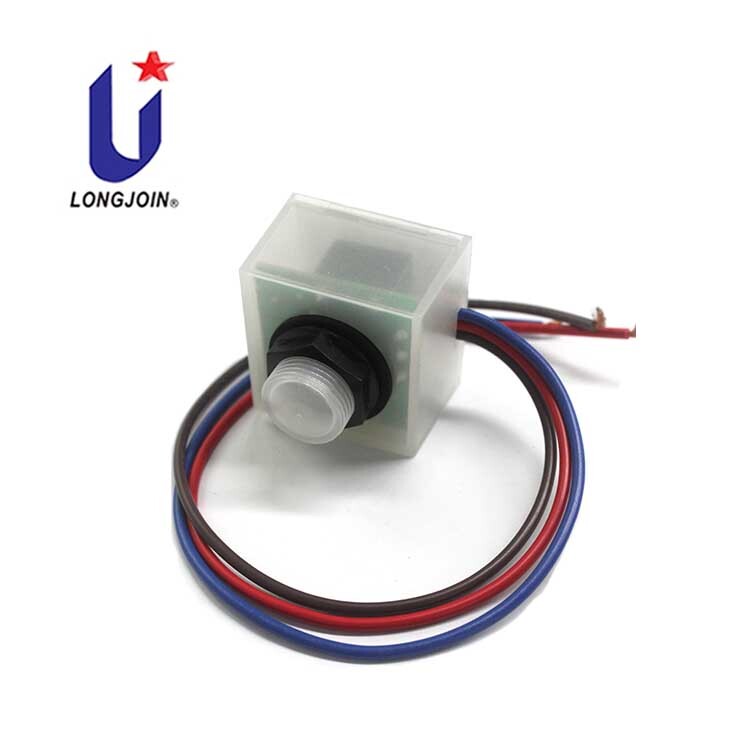

-split type controller:JL-411R
-integrated on the controller body: JL-411
*waterproof rating
-IP65(optional)
-IP54
* Based on the mini-size sensing head controller, you can find other series controllers whose parameter lists will appeal to you.
* here offer low voltage series product parameter listes
-JL-205-12D
-JL-205-24D
-JL-207-48D
**additionally, we also recommend high volatge or high load power:
-JL-207F(480VAC)
-JL-207E(347VAC)
-JL-217E(347VAC)
-JL-217F(480VAC)
-JL-103AG(1800W)
-JL-103DG(2000W)
-JL-103EE(2000W)
We offer an electronic wire-in controller range, which is divided by split type and integrated type sensor. it is ideal for outdoor display ad shows, traffic lights, neon light signs, and LED stop signs in warn lighting and display advertisement lighting.
CDS sensing parts, JL-401C, JL-401CR
phototransistor sensing parts: JL-411-12D, JL-411-24D
