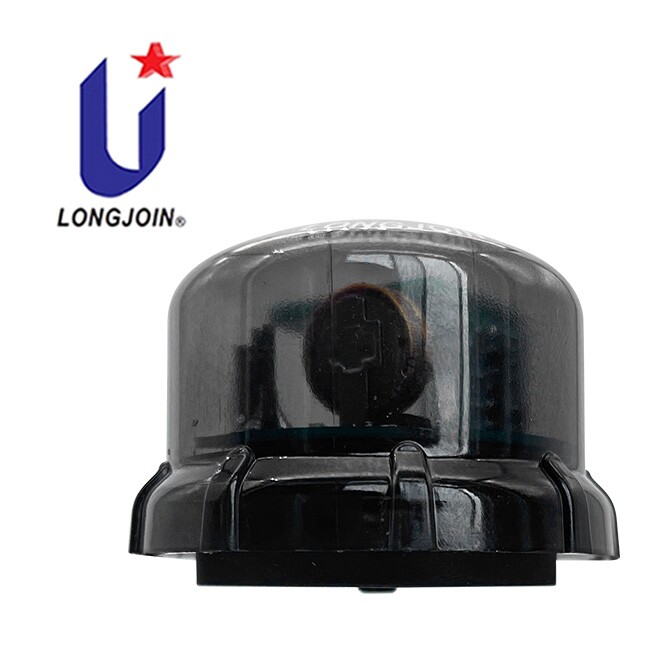

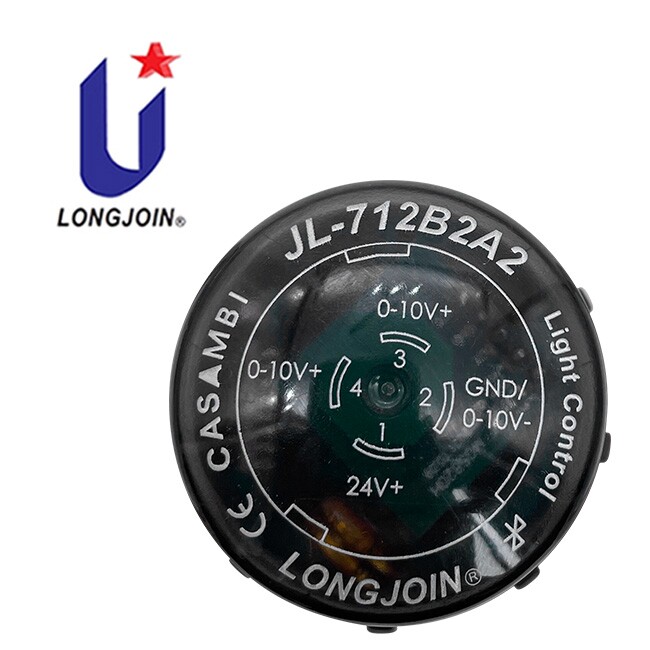

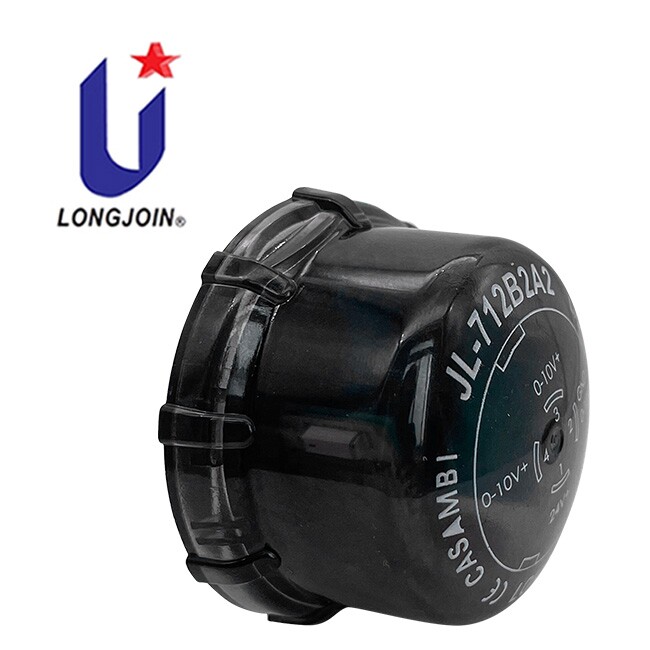

1. Product Model: JL-712B2A2
2. Dimming Output: 0-10V
3. Certificate: CE,RoHS
4. Compliant Standard: zhaga book18
5. Sensor type: optic sensing + microwave sensing
6. Casambi APP to set different parameters
JL-712B2A2 0-10v Dimmig and Microwave + light sensoring mode, and you can setting different parameter to real lighting gradient atmosphere. such as via APP adjust mode to control brightness and can be Setting by different scene.
Additionally, this is more significant features:
1-Dimming mode with 0-10V.
2-and Dynamic adjustment of microwave frequency to avoid mutual interference during dense installation.
3-do you want specification conduct, then reading reference JL-712B2A2 zhaga sensor guide instructions.
| Model | JL-712B2A2 |
| Power supply | Rated Voltage:12-24V, current:12V/35mA; 24V/25mA |
| Power consumption | <0.385W(12V);<0.55W(24V) |
| Dimming | 0-10V |
| Sensing | light sening+Mircowave, Casambi Bluetooth mesh communication |
| Microwave frequency | 5.8GHz |
| Maximum hanging height | 15m |
| Induction radius | >=10 |
| Start-up time | <200ms |
| Initialization before Start | default 80%, adjust through app |
| Control mode | reference our JL-712B2A2 Specification |
| Mechanical vibration | IEC60068-2-6 |
| Spectral range | 800-1100nm |
* you can set configuration by CASAMBI BLE APP;
* If you want selected find where a public lighting area, then can feel free different scenes with the Casambi APP
* you can choose different zhaga series controllers, and also you can choose the lamp luminaire module base type assemblies. such as JL-700, JL-700k3/k4, JL-710, JL-700W, JL-700L, etc.
Model:
At here, we offer a range of Zhaga Book 18 products including Zhaga controllers and assemblies. For example, please refer to the graphic of Zhaga controller product applications on the left side of the page.
