NEMA SS-1 Standard: Requirements for Long-Join Photocells
Introduce
North American outdoor lighting procurement increasingly references NEMA SS-1 as the benchmark for photocontrol performance and material durability.
Understanding what the standard actually requires, as well as how Long-Join’s products are designed to meet it, helps buyers make informed specifications rather than relying on general quality claims.
What Is the NEMA SS-1 Standard?
NEMA SS-1 defines testing standards and performance specifications for outdoor lighting electrical controllers. It places more emphasis on the following:
- Material durability
- Environmental adaptability
- Operational safety
It establishes the technical baseline that photocontrols used in North American outdoor lighting must satisfy, covering how the product behaves across the full range of outdoor conditions it will encounter across its service life, and not just in controlled laboratory conditions.
What Are the Main Requirements for Photocells Under NEMA SS-1?

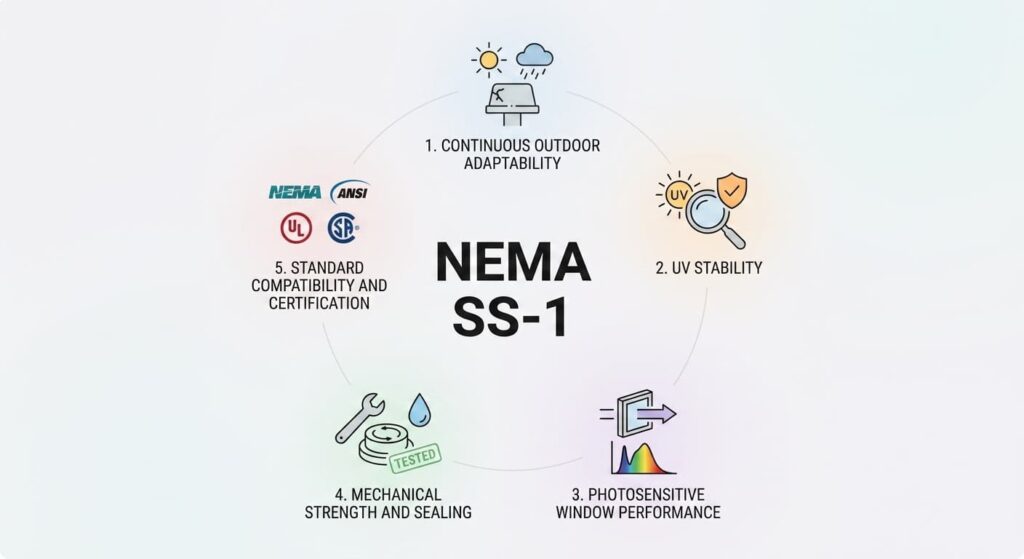

Five requirement categories define what NEMA SS-1 demands of outdoor photocontrol products:
- Continuous Outdoor Adaptability
- UV Stability
- Photosensitive Window Performance
- Mechanical Strength and Sealing
- Standard Compatibility and Certification
Understanding what each item requires will give a better understanding of what the NEMA SS-1 checks for. Here is a detailed breakdown of the specific requirements of each category.
Item | Specific Requirements |
Continuous Outdoor Adaptability | Photocell housings and materials must endure harsh outdoor conditions, including UV exposure, rain, and temperature fluctuations |
UV Stability | Housing and photosensitive windows must contain UV stabilisers to prevent plastic brittleness, yellowing, and cracking, increasing component lifespan |
Photosensitive Window Performance | Maintain high light transmittance, resist UV aging, and ensure stable light sensitivity for accurate ambient light detection |
Mechanical Strength and Sealing | Housings must provide good mechanical properties and waterproof, dustproof sealing to ensure safety, reliability, and longevity |
Standard Compatibility and Certification | Products must comply with NEMA SS-1 and consider other relevant certifications such as UL and ENEC to ensure global quality and market competitiveness |
The UV stability requirement deserves specific attention. Outdoor photocontrols are exposed to direct solar radiation across their full service life, and in high-UV regions, this is the dominant material degradation mechanism.
NEMA SS-1 requires UV stabilisers in both the housing material and the photosensitive window. A housing without adequate UV stabiliser content will begin to yellow and embrittle within two to three years in high-UV environments, eventually cracking and losing the sealing integrity that the mechanical strength requirement also demands.
The photosensitive window requirement connects directly to performance accuracy. UV aging of the window material reduces light transmittance over time, shifting the effective lux threshold at which switching occurs.
A photocell that switches correctly at 15 Lux when new may switch at a different threshold after five years of UV degradation if the window material is not stabilised. NEMA SS-1’s requirement for stable light sensitivity across the product’s service life addresses this directly.
How Does Long-Join Meet NEMA SS-1 Requirements?
Long-Join uses high-performance polymer materials with UV stabilisers, advanced sealing structures, and industry-leading photosensitive window design to meet the key NEMA SS-1 requirements across the full product range.
Outdoor Adaptability and UV Stability
The housing material of choice is usually a glass-fibre reinforced Polybutylene Terephthalate (PBT) with UV stabiliser and antioxidant additives, as this directly addresses the UV stability and mechanical strength requirements. PBT with 30% glass-fibre reinforcement maintains dimensional stability under the temperature range that outdoor luminaire installation produces, while the UV stabiliser prevents the photodegradation that NEMA SS-1 requires to be controlled.
Photosensitive Window
The photosensitive window is selected and tested for both initial transmittance and transmittance stability after simulated UV aging. This ensures the switching threshold remains within specification across the product’s rated service life rather than drifting as the window material degrades.
Sealing
Sealing uses industrial-grade Ethylene Propylene Diene Monomer (EPDM) gaskets with ultrasonic-welded housing joints that maintain compression across thermal cycling. The combination satisfies both the waterproof and dustproof sealing requirement and the mechanical strength requirement for sustained outdoor service.
Standard Certification
Beyond NEMA SS-1, Long-Join’s photocontrol range carries UL773A listings for non-industrial photoelectric switching applications and CE marking for European market compliance, with full certification documentation available on site.
Frequently Asked Questions on NEMA SS-1
NEMA SS-1 defines testing standards and performance specifications for outdoor lighting electrical controllers, covering material durability, UV stability, photosensitive window performance, mechanical strength, and sealing requirements for North American outdoor photocell applications.
Both the housing and the photosensitive window must contain UV stabilisers to prevent brittleness, yellowing, and cracking under prolonged solar radiation exposure, and to maintain stable light transmittance and switching accuracy across the product's service life.
Through glass-fibre reinforced PBT housing material, ultrasonic welded housing joints, and industrial-grade EPDM gaskets — providing dimensional stability, waterproof and dustproof sealing, and resistance to the thermal cycling that outdoor installation produces.
It slows the photodegradation process that causes housing materials to yellow, embrittle, and crack, and maintains the optical transmittance of the photosensitive window — both of which directly preserve switching accuracy and housing integrity across the product's service life.
Long-Join's photocontrol range carries UL or UL773A listings for North American markets, CE marking for EU market access, and ENEC system certification for European professional lighting quality requirements, alongside NEMA SS-1 compliance.
Conclusion
NEMA SS-1 sets the material and performance baseline for outdoor photocontrols in the North American market, with UV stability, photosensitive window performance, mechanical strength, and environmental sealing as its core requirements.
Long-Join’s product design addresses each requirement directly. Combined with UL, CE, and ENEC certification coverage, Long-Join’s photocontrol range is built to meet the demands of North American and international outdoor lighting applications across a full service life.
