Home > Longjoin Photocell Shorting Cap
What Can LONGJOIN PHOTOCELL Provide?
<< OEM/ODM Service
LONGJOIN provides customized services, customized product parameters, shell color, packaging, etc. A typical customized product case JL-207. << Send Your Request
<< Product Certificate
LONGJOIN Photocell Light Controller has relevant authoritative certifications in the industry, including UL, CUL, CE, RoHS, FCC, etc. << send your requst
<< Testing Report
LONGJOIN Photocell Light Controller has test reports of relevant authoritative products in the industry, including waterproof, fireproof ,explosion-proof, etc. << Send Your Request
<< After-sales Service
As a well-known Chinese Photocontrol R&D manufacturing factory, LONGJOIN has a strong technical R&D team to provide after -sales technical guidance for each customer. << send your requst
Product Performance Test
Product Debugging
Waterproof Test
jl-208 shortign cap ip54
Outdoor Shorting Cap

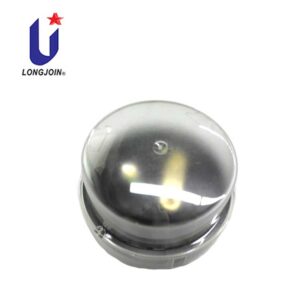

208 shorting cap transparent design
Nema 5 pin photocell receptacle
Nema 7 pin
photocell receptacle
Your Nema PhotoControl Receptacle

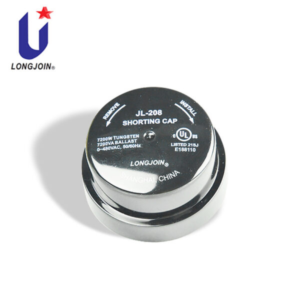

JL-208-IP54
1.Intend to short a twist-lock photocontrol receptacle while under maintain
2.ANSI C136.10 Twist Lock
3.IP66 protection while installed
4.UV stabilized Polycarbonate Enclosure
5.High impact polybutylene terephthalate base
6.Silicone gasket
7.Easy-to-handle Twist Enclosure

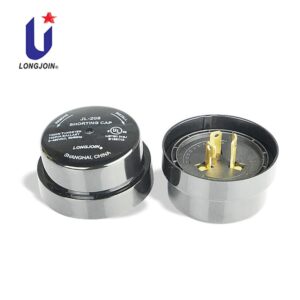

JL-208-IP66 Shorting Cap Photocell
1.Intend to short a twist-lock photocontrol receptacle while under maintain
2.ANSI C136.10 Twist Lock
3.IP66 protection while installed
4.UV stabilized Polycarbonate Enclosure
5.High impact polybutylene terephthalate base
6.Silicone gasket
7.Easy-to-handle Twist Enclosure
OEM/ODM Shorting Cap Photocell
Customized Shorting Caps Photocell can print your product LOGO, product parameters
and other product information on the product according to your requirements.
Generally require customers to provide printed information.
FAQ About JL-208 Shorting Cap Photocell
Q1: What is JL-208 NEMA Shorting Cap?
A1: The NEMA Shorting Cap Photocell is a switch without light control function, for the pre -installed Smart Photocell Light Control.
Q2：What is the function of the JL-208 NEMA Shorting Cap Photocell?
A2: The NEMA Shorting Cap has no light control function, only as a switch as a Photo Sensor Light Switch.
The customer has already used the lamp pole with NEMA PhotoControl Receptacle, but for the time being, the intelligent light control has not been developed, so they choose to replace the NEMA Shorting Cap temporarily, and wait until the intelligent light controller is developed, and then replace the JL-208 NEMA Shorting Cap.
Q3: Can the JL-208 NEMA Shorting Cap be customized?
A3: LongJoin has a transparent shell NEMA Shorting Cap for customers to print product related information, the specific information can be customized according to customers.
Q4: The Reason Why the JL-208 NEMA Shorting Cap uses an UV Stabilized Polycarbonate shell?
A4: Because the JL-208 NEMA Shorting Cap and the Photocell Light Sensor are both used in outdoor street lamps and lanterns, Nema Shorting Cap is subject to ultraviolet rays and rain all year round. Therefore, the use of an anti-ultraviolet shell helps to extend the life of the NEMA Shorting Cap, and a better waterproof level can protect Street lights will not seep into rain water, extending the life of the lamps.
Q5: What are the Characteristics of the IP54/67 Level JL-208 NEMA Shorting Caps?
A5: Different IP grade JL-208 NEMA Shorting Cap has different waterproof performance, which is based on different waterproof production process of NEMA Shorting Cap. LONG- JOIN NEMA Shorting Cap has two production processes, glue and foam waterproof washers.
Q6: How to test the JL-208 NEMA Shorting Cap?
A6: Install the JL-208 NEMA Shorting Cap according to the installation instructions of the Shorting Cap. Under the correct installation, when it is installed on the lamp, it will not affect the normal switch of the lamp, that is, it is in the normal working state.
