1. Product Model: JL-240FXA
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0

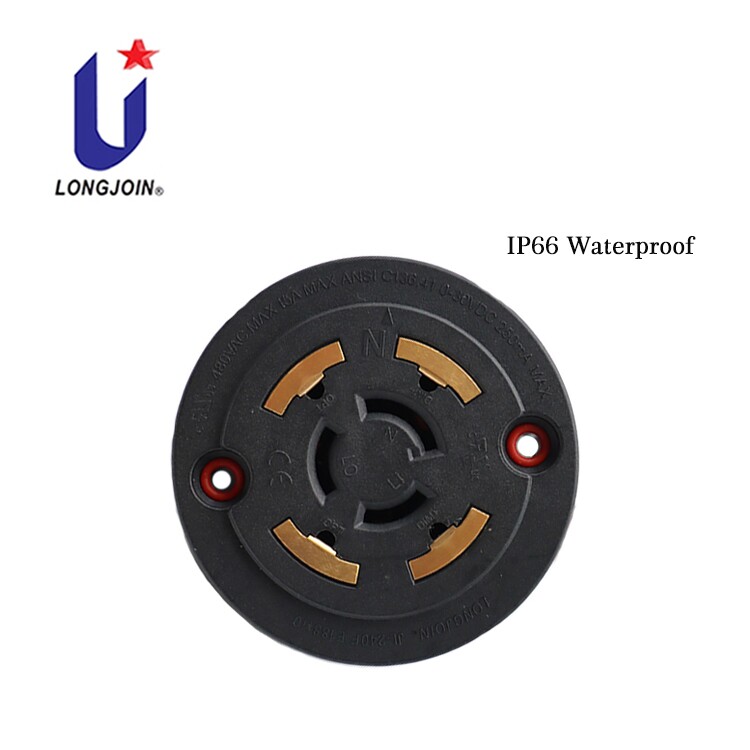

4. IP Rating: IP66
5. Material: PBT Cover and Add UV Stabilizer
6. Compliant Standard: ANSI C136.41, CE, ROHS, UL

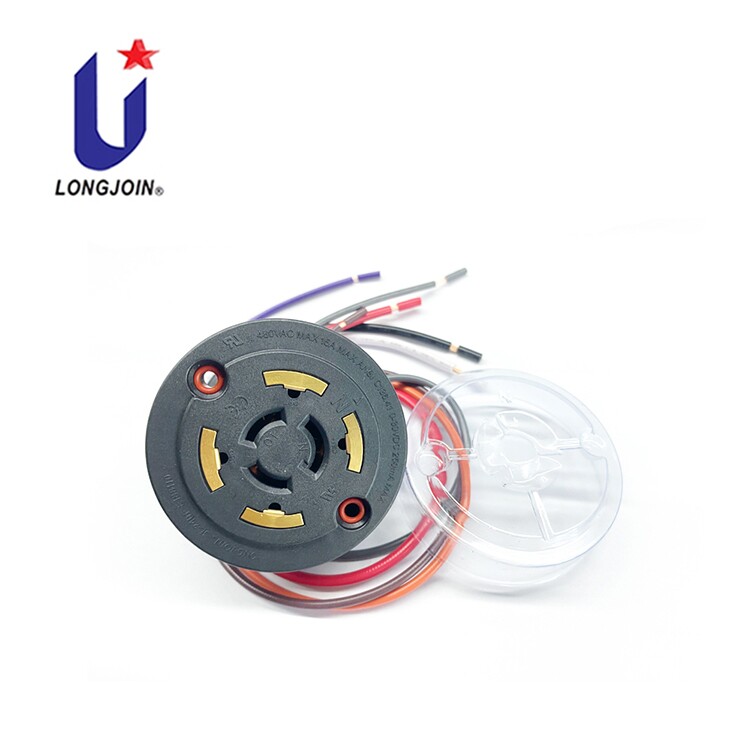

All the JL-240F series photocontrol receptacles were designed for the lanterns those intended tohave an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This series conform newlypublished ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.

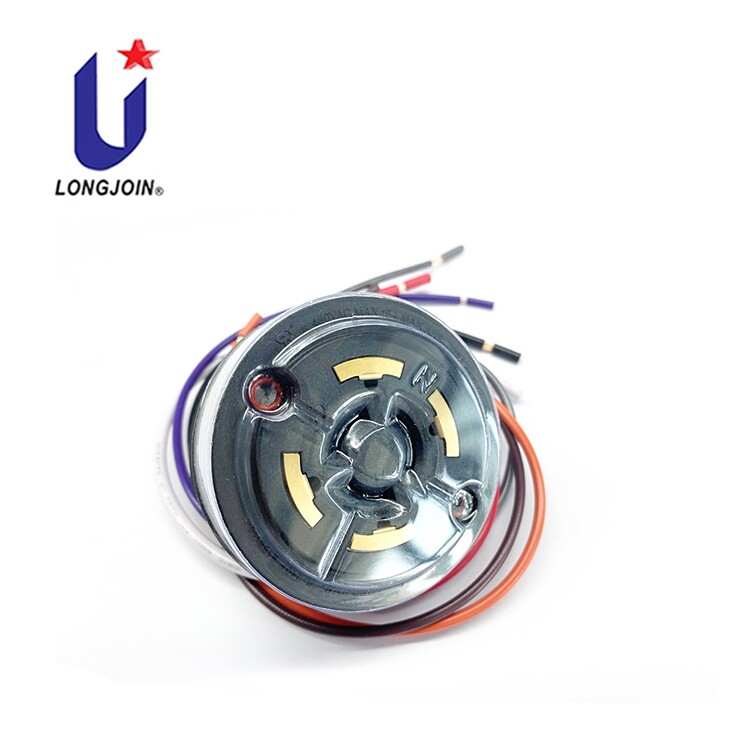

This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol hasANSI C136.41 conforming spring contacts, and offers 2 or 4 wiring leads at rear side for signaconnection.

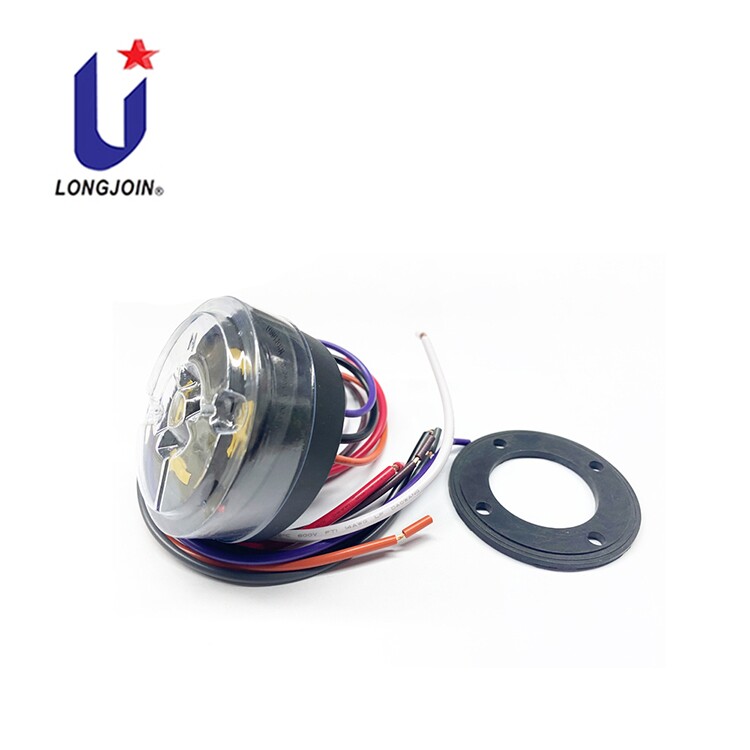

Especially, JL-240F offers screw hole O-rings while internally and externally sealed with silicone glue,to approach extreme waterproof feature.
| Product Model | JL-240FXA |
| Applicable Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Power Loading | AWG#14: 15Amp max. / AWG#16: 10Amp max. |
| Optional Signal Loading | AWG#18: 30VDC, 0.25Amp max |
| Ambient Temperature | -40℃ ~ +70℃ |
| Overall Dimensions (mm) | 65Dia.x 40 65Dia.x 67 |
| Rear Cover | option |
| Leads | 6″ Min. (See Ordering Information) |
The NEMA socket with leads is designed to be a customizable cable connector, offering flexibility in changing the wire lengths to different sizes.
*so this series 7-pin socket has nothing to offer other kits support.
Model:
At here, we offer NEMA series products, including photocontroller bases, twist lock photocell receptacles, and street light bases. These products include NEMA 7 PIN, NEMA 5 PIN, and NEMA 3 PIN options. For example, please refer to the graphics for the NEMA 7 PIN base or 3 PIN Base to match JL-208 shorting cap with the ANSI C 136.10 standard. Ensure that, when building your future municipal lighting project, you choose different types of portfolios in order to receive discounted bulk pricing and save on expensive shipping costs.
