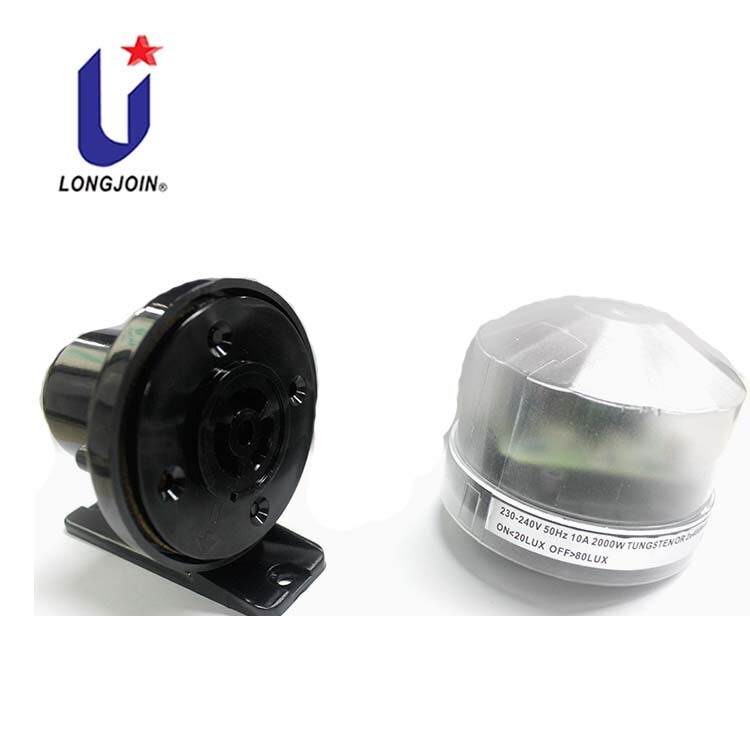

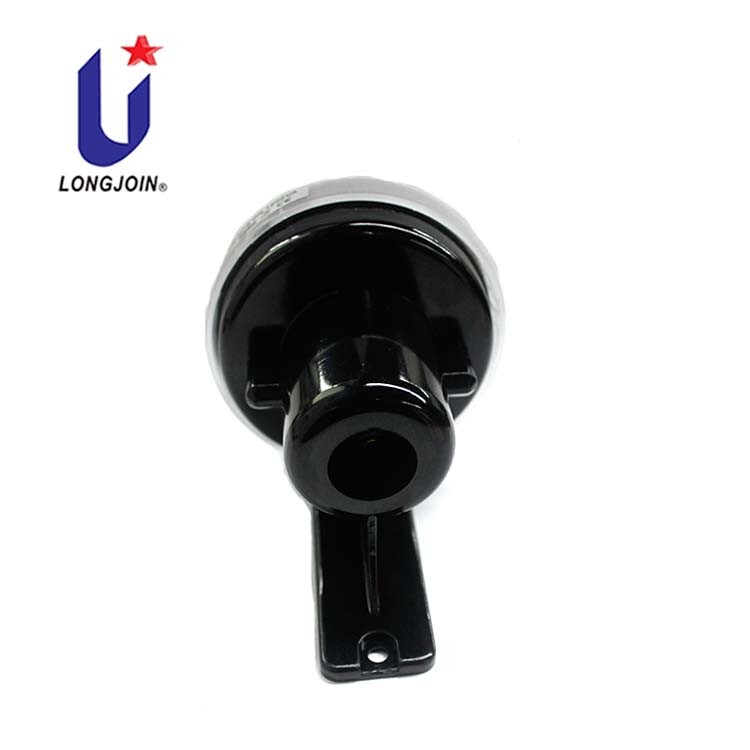

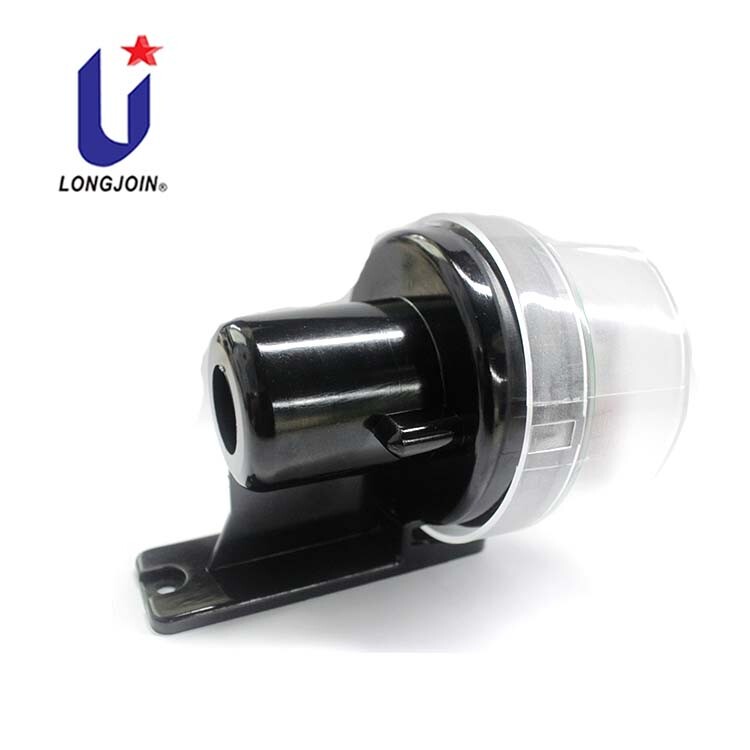

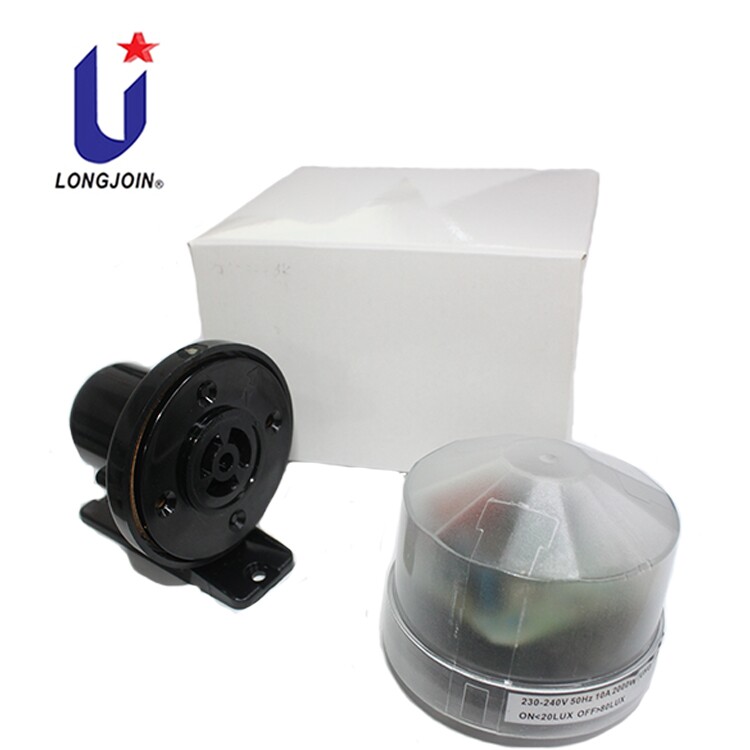

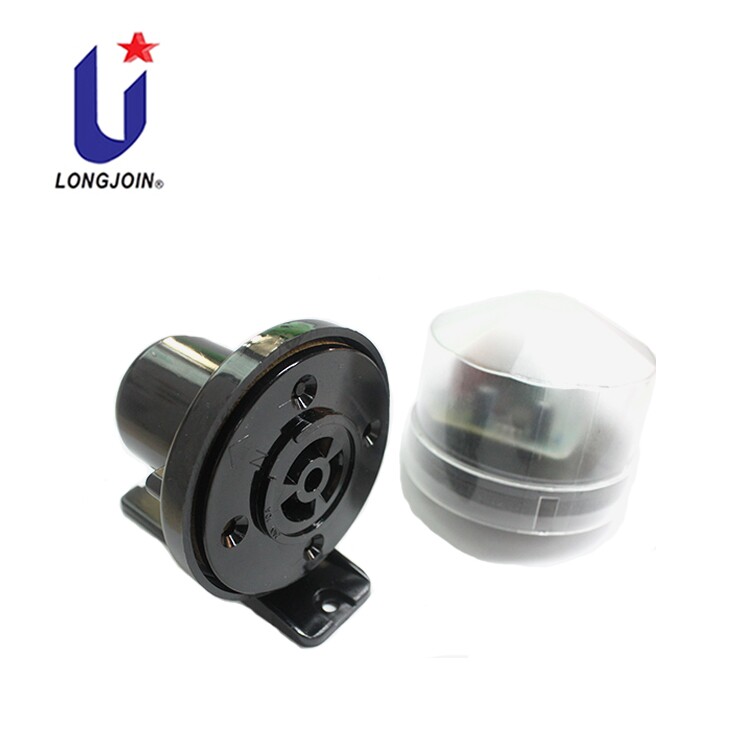

The PECU JL-224 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level. here we offer Photocell Electronic Control Unit (PECU) accessries JL-210K with Wall mount type socket.

Feature

1. EU standard light controller JL-214B,JL-224B
2. here both are compliant with BS5972 and UKCA listed
3. turn on / turn off lux level: On<20lx, off>80lx
4. EPCU controller work mode type: Fail-off
5. Multi-volts available from 120-277VAC to 220-240VAC
6. Surge Arrester Built-in

here offer to distinguish type JL224 PECU light controller Parameter lists:
-A=110-120 VAC
-B=220-240VAC
-C=120-277VAC

*JL-224 series controller power consumption 1.5VA

*surge arrester protection(MOV)
-12=110J/3500AMP
-15=235J/5000AMP

*optional NEMA standard JL-210K Receptacle
*We also provide specification custom requirement information
on the one hand, we are capable of processing craft cable wire connectors. hence, we helped you to choose to customize differ from the Waterproof cable connector, so we quickly resolved this waterproof problem between BS type twist lock photocell and cable contacts. on the other hand, we will make full renew design NEMA Receptacle transform to EU standard JL-210K, We have considered the usage status of lamp fixtures in outdoor corridor lighting that automatically turn on/off from dusk to dawn. Therefore, we can provide good receptacle kits that can be mounted anywhere you desire.
