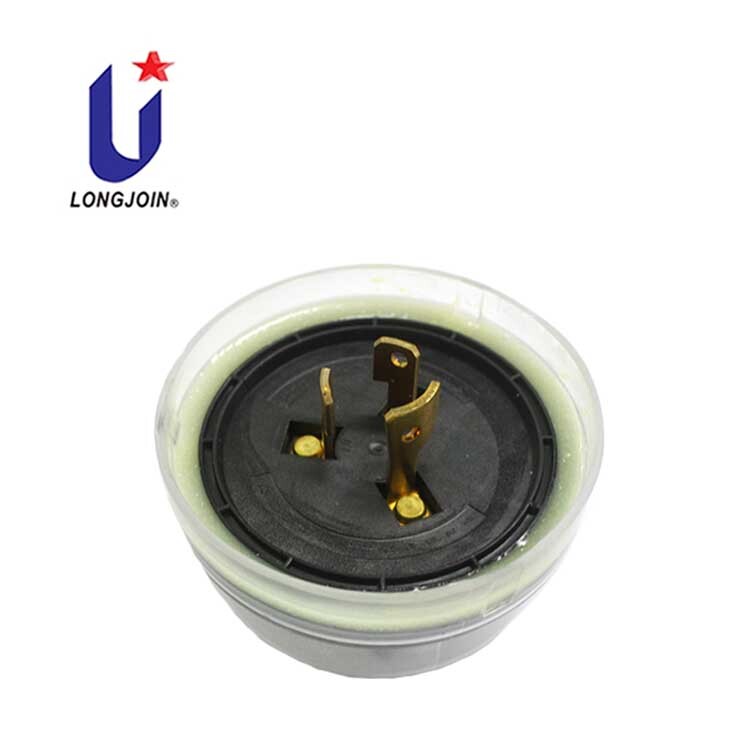

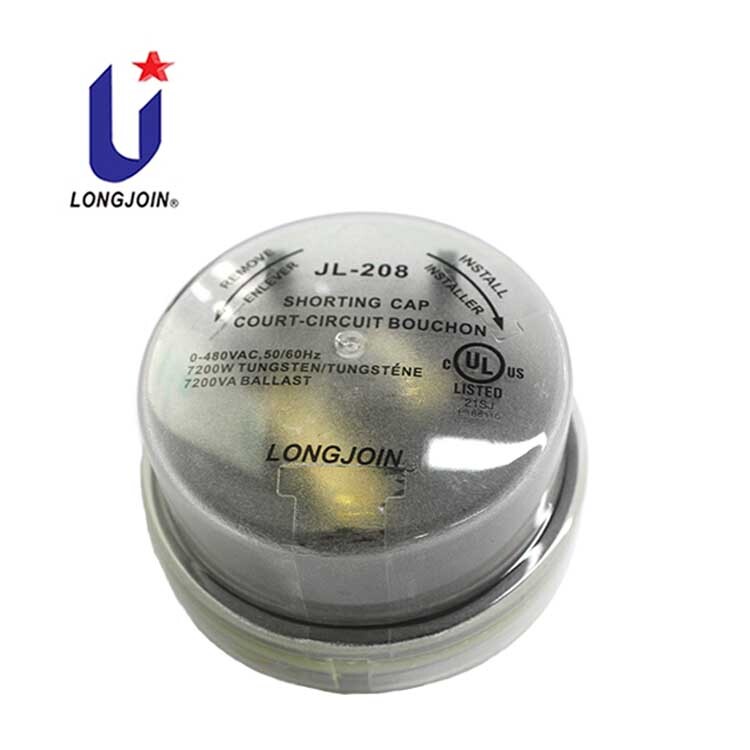

1. Product Model: JL-208
2. Rated Voltage: 0-480VAC
3. Surge Protection: JL-208-15; JL-208-23
4. IP Rating: IP54
5. Compliant Standard: CE, ROHS, UL
|
Product Model |
JL-208 |
|
Color |
Black, Clear, Customized |
|
Rated Load |
7200W Tungsten ;7200VA Ballast |
|
Surge Protection |
235J / 5000A(JL-208-15) ;460J / 10000A(JL-208-23) |
|
IP Grade |
IP65,IP54 |
*you can customize different cover colors, and also optional IP Rating level.
–
Here, we offer an ANSI C136.10 3-pin photocell shorting cap and a Zhaga shorting cap to ensure that any issue can be resolved. Furthermore, our Long-Join brand photocontrol series includes NEMA 7-pin and 3-pin bases, as shown in the diagram on the left. We are also happy to provide guidance on how to install lighting controllers and troubleshoot fixture issues.
