Photocell Sensor Wiring Diagram Instruction
1.Twist-Lock Type
The Twist Lock type Photocell Sensors are applicable to Control the Street Lighting, Passage Lighting and Doorway Lighting Automatically in accordance with the Ambient Natural Lighting Level.

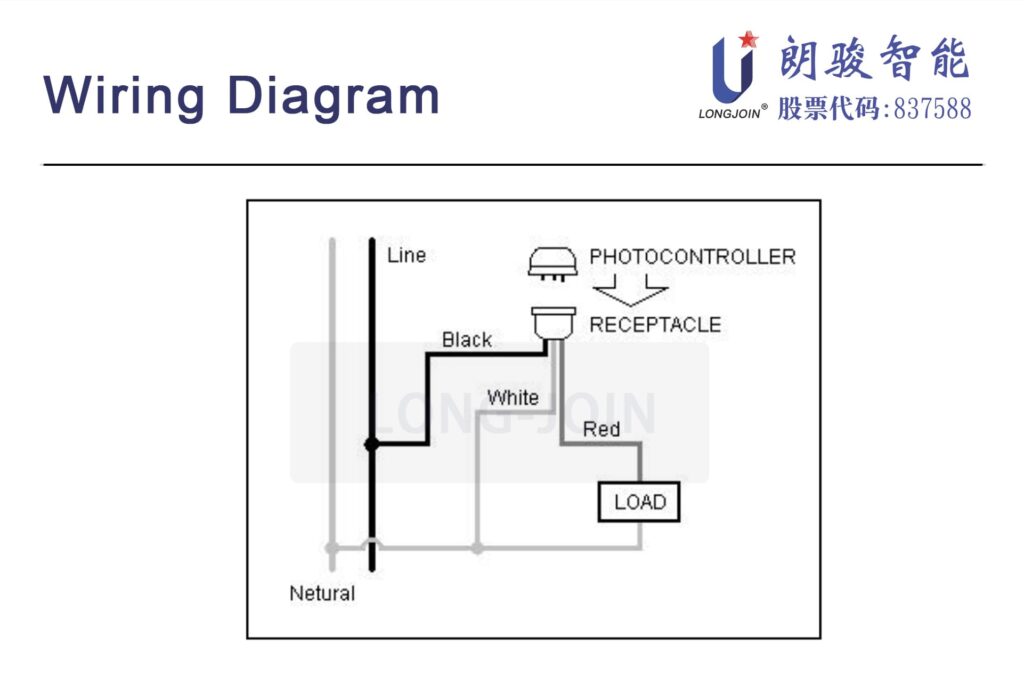

This Type Photocell Sensor’s Wiring Diagram is Shown Below:
Disconnect power; wire the receptacle according to the diagram in right hand. Push the photocontroller on and twist it clockwise to lock it into the receptacle. Install the photocell Sensor with the Photocell facing the NORTH direction as indicated on the top of the photo controller. Adjust the receptacle position if necessary.
2.Button Type 3 Wire-in
The Button type 3 Wire-in Photocell Sensors are applicable to Control the Outdoor Lighting, Passage Lighting and Landscape Lighting Automatically in accordance with the Ambient Natural Lighting Lux Level.
This Type Photocell Sensor’s Wiring Diagram is Shown Below:
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with lock nut. Wire according to the diagram in right hand.
Do not install the switch with the Photocell Switch facing artificial or reflected light. This will cause the unit to cycle on and off at night.
3.Wire-in Photoelectric Switch
The photoelectric switch is applicable to control the Outdoor Lighting, Garden Lighting, Passage Lighting and Doorway Lighting Automatically in accordance with the Ambient Natural Lighting level. It provides a wide voltage range for customer applications under almost power supplies. Further, a preset 5-15 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.

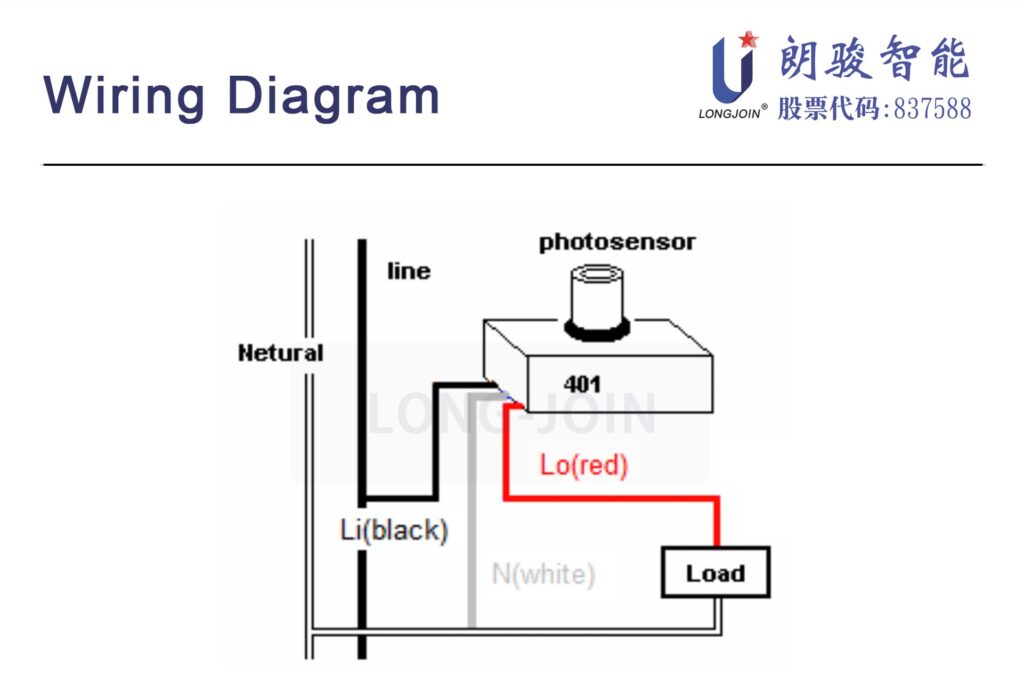

This Type Photocell Sensor’s Wiring Diagram is Shown Below:
This Type Photocell Sensor’s Wiring Diagram is Shown Below:
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with lock nut. Wire according to the diagram in right hand.
Do not install the switch with the Photocell Switch facing artificial or reflected light. This will cause the unit to cycle on and off at night.
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with lock nut. Wire according to the diagram in right hand.
Do not install the switch with the Photocell Switch facing artificial or reflected light.
This will cause the unit to cycle on and off at night.

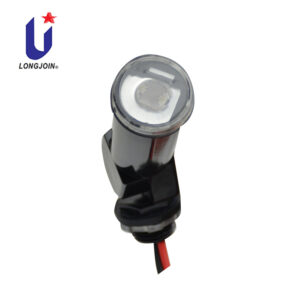

4.Swivel Type 3 Wire-in
This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
It has a gathered swivel with the sensor/switch body for convenient direction adjustment after installation. Additional swivel is also available for further adjustment. This product is certified to the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A and applicable Canadian Standards.

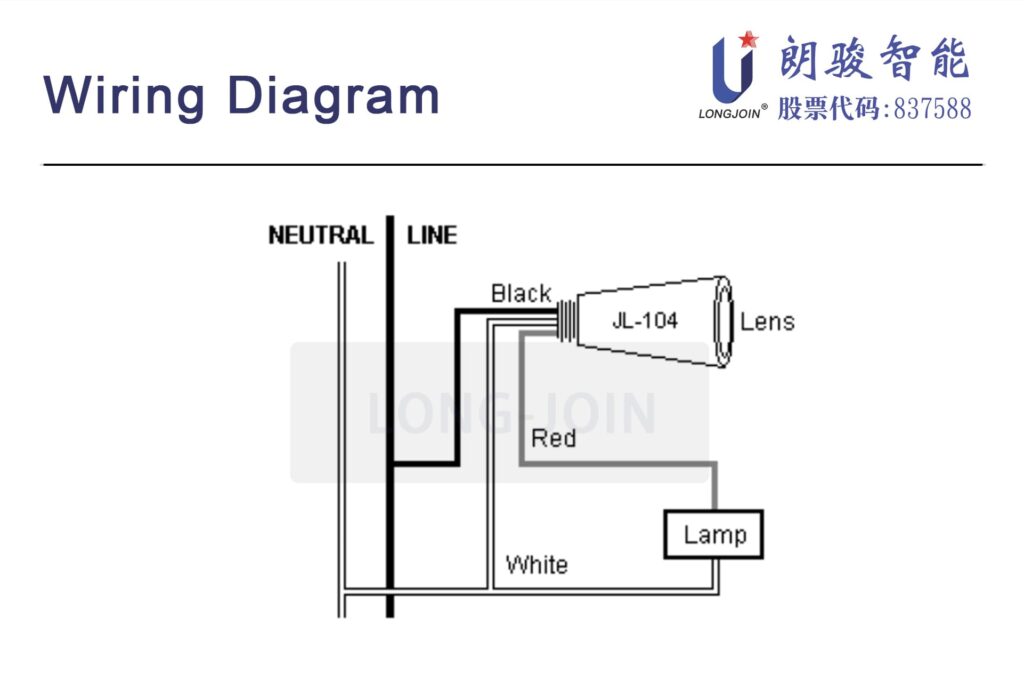

This Type Photocell Sensor’s Wiring Diagram is Shown Below:
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with lock nut. Wire according to the diagram in right hand.
Do not install the switch with the Photocell Switch facing artificial or reflected light. This will cause the unit to cycle on and off at night.

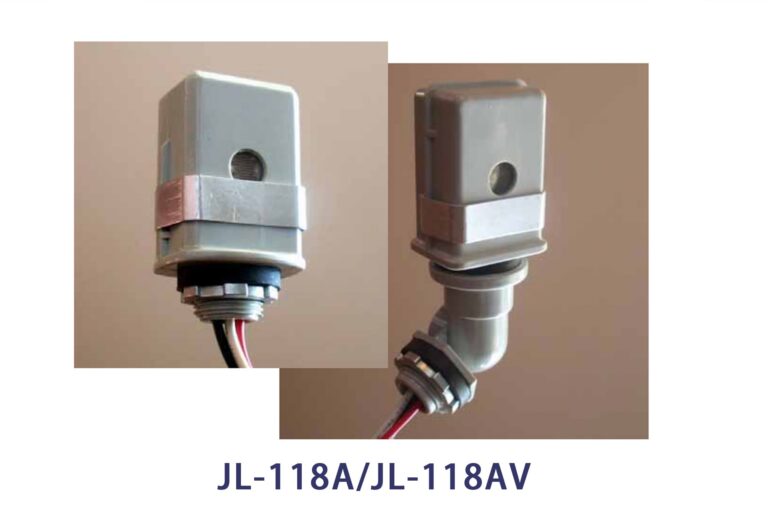

5.Adjustable Type 3 Wire-in
This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
This series is convenient direction adjustment after installation once an additional swivel is applied.
This Type Photocell Sensor’s Wiring Diagram is Shown Below:
Slide the mounted adjusting metal strip to have preferred On/Off levels, if necessary. Do not install the switch with the Photocell facing artificial or reflected light.

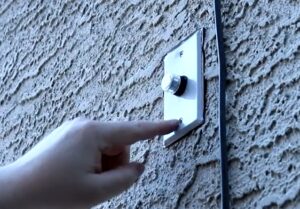

Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
Test will take approximately 2 minutes.
